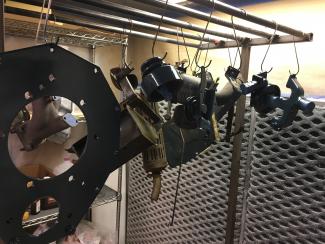

Few parts that need preparing for paint , have been prepared for paint, have been painted. Slowly but surely inching forward.
Fish Lifes B6100 Restoration
- Thread starter FishLife
- Start date
Are these dash panels still available?. Does anyone know the process in which they are made?
Attachments
Thank you. Things are at a bit of a stall as I wait on parts. The holidays have slowed thing down.
You might try VERY lightly cleaning the panel and spraying some Duplicolor CLEAR High Temp coating on it and cure it at about 175-200 degrees, IF it is not plastic. I have had good success with that coating for durability.
It is aluminum. I was going to try an reproduce it if there not still available. I think there made by anodizing the panel black and acid etching or lasering the information into it.
Just FYI. They are still available. For my tractor the part number is
66704-47410
Found it on Messicks.
66704-47410
Found it on Messicks.
Attachments
While in the process of dismantling I noticed the insulation on the wiring is brittle and cracking. Has anyone done a total rewire? Anyone make there own harness?
I have made up wiring harnesses for portions of the main loom on cars and motorcycles. Cut back the sheathing and see if the insulation is okay there. If it is okay, you could partially replace the bad parts. BUT..... If you choose to do that then do it right by soldering the splices of the new wire on to the good wire in the loom. Buy some good shrink tube and put it over the splices. Best shrink tube is the stuff with heat activated glue/sealer. It insures that moisture won't get into the splice and degrade it.
I have "rebuilt" several engine compartment wiring looms on old VW's that were show cars.
I did cut some of the loom back and it’s brittel. I priced out both sections for a new one and its about $300. I laid out the bottom section and and will just make a new harness. Wish there was still a Radio Shack around to get the connector and pins.
Attachments
fishlife, Check out Delcity.net, https://www.delcity.net/
Here is their connector page for male and female gang plugs. https://www.delcity.net/store/Wire-Connectors-&-Quick-Splices/
I have dealt with them several times for all sorts of electrical stuff I needed to build some circuit boxes I sold for a while. The quality is good and they assemble your order and get it shipped out right away. They have wire, shrink tube, terminals, just about everything you need for low voltage wiring for automotive and equipment.
Here is their connector page for male and female gang plugs. https://www.delcity.net/store/Wire-Connectors-&-Quick-Splices/
I have dealt with them several times for all sorts of electrical stuff I needed to build some circuit boxes I sold for a while. The quality is good and they assemble your order and get it shipped out right away. They have wire, shrink tube, terminals, just about everything you need for low voltage wiring for automotive and equipment.
Last edited:
When you need to replace a connector, you might check out:
bmotorsports.com
easternbeaver.com
corsa-technic.com
The specs on a particular connector will have the pin type. Each pin type will take a particular crimper. Having the right crimper tool is important.
Also important is to have support close to connectors. The wiring harness should not be supported by the connectors.
bmotorsports.com
easternbeaver.com
corsa-technic.com
The specs on a particular connector will have the pin type. Each pin type will take a particular crimper. Having the right crimper tool is important.
Also important is to have support close to connectors. The wiring harness should not be supported by the connectors.
Somebody has a lot of wrench turning ahead of them! I figured I had come this far so just take it completely apart. At least now I can clean the tunnel out good now. The reason for taking it this far is that a lot of the o-rings, gaskets where old and leaking and it would be a half a## job to if I painted over leaking oil. Its a lot of wrench turning but im enjoying it.
Attachments
I've been enjoying reading your thread, keep up the good work and progress reports
I had a quick search of your thread and couldn't figure out if you've got a workshop service manual. If you don't have one, get one! Honestly, best investment you could make.
I had a quick search of your thread and couldn't figure out if you've got a workshop service manual. If you don't have one, get one! Honestly, best investment you could make.
torch
Well-known member
Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Yes. I have the one that Torch linked and another one by I&TI've been enjoying reading your thread, keep up the good work and progress reports
I had a quick search of your thread and couldn't figure out if you've got a workshop service manual. If you don't have one, get one! Honestly, best investment you could make.
