2. One for the top link, one for the side link. “Standard” is center return (up/down/off). If you want one or more to have the ability to float or run constantly (to run a hydraulic motor, etc.) be sure to spec the functions the way you want them. Personally I have no use for a constant flow. I do really like the float option.
I have three sets of remotes on mine. Have to pull the right rear wheel and fender to put on one so from a labor standpoint installing 3 isn’t much more than installing 1. Needed 2 and the third was just the additional part cost so went ahead and had it done.
I know there are some really good A/M options for rear remotes, some which may better than or cheaper than OEM. However, my whole setup, cylinders and valves, was done by the dealer. I couldn’t source the cylinders cheaper than the dealer quoted.

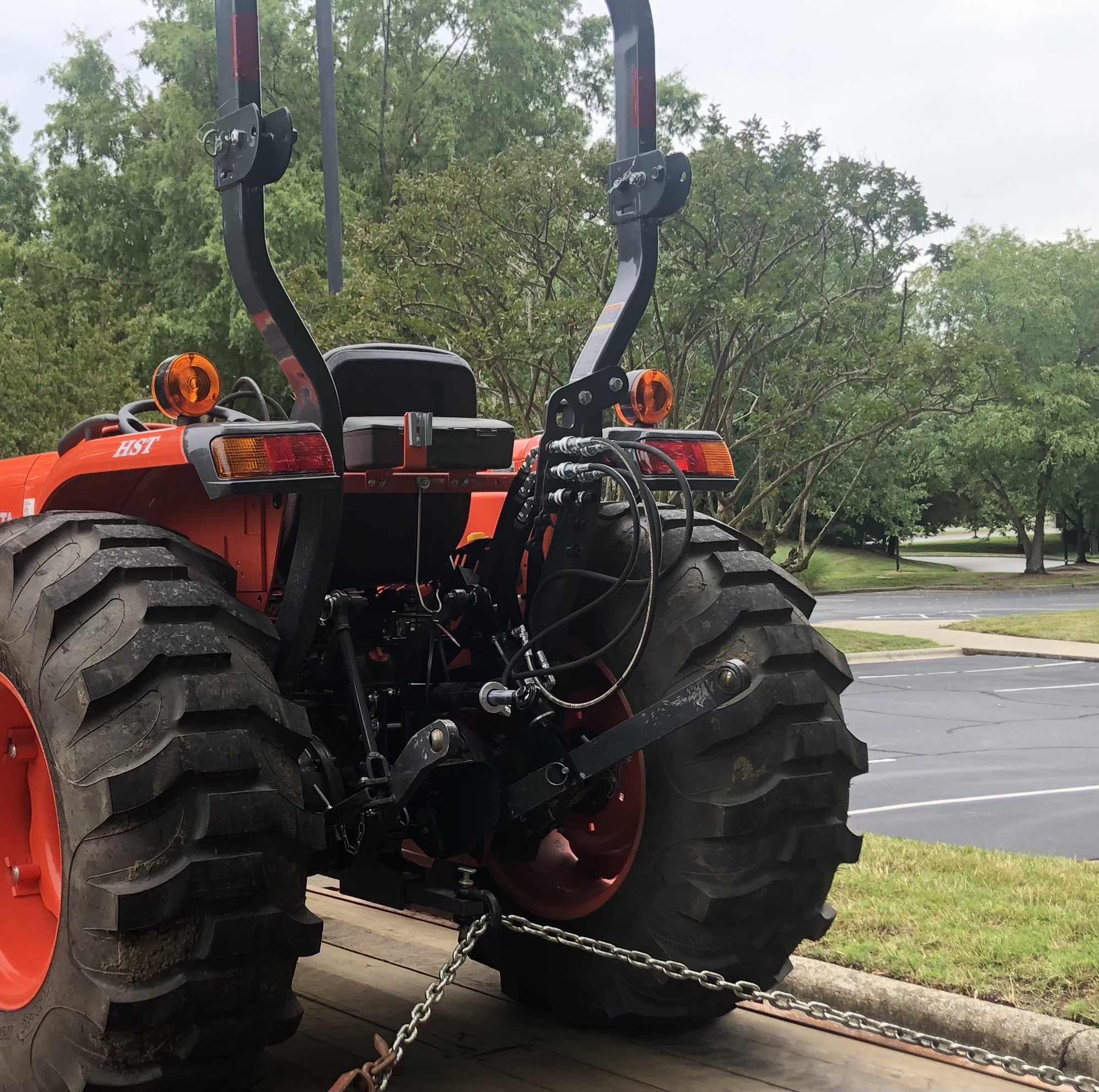

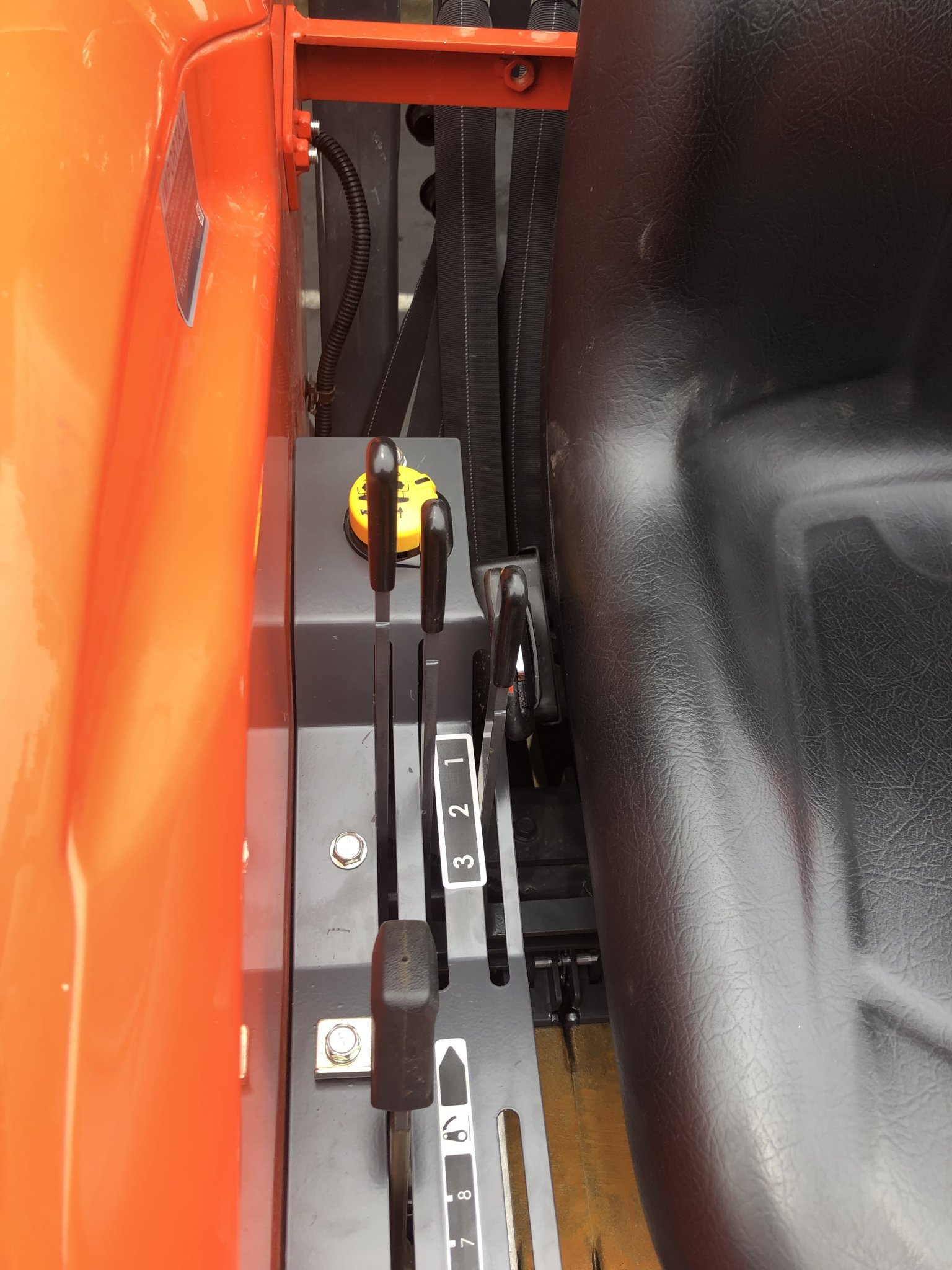

Pic of the remotes on the back of tractor and valve handle location below. I like the valve handles being in easy reach while driving and like them all being different height so no confusion which one I’m grabbing.
View attachment 63230
View attachment 63231
