Electrical - Wiring Diagrams
- Thread starter 85Hokie
- Start date
I just did a quick check of the BX1870 WSM (WorkShop Manual) and the schematic-diagram in in there.
HINT: The WSM has THREE parts.... look in part3
New to the site. Needing A wiring Diagram for a l3830. Mainly the tach input from alternator. Auction buy tractor says enough. Thanks
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
It really helps if asking for a electrical diagram that you include the EXACT sub model you need it for, A GST Cabbed does not have the same wiring as a DT ROPS.
Also that tractor doesn't use the Alternator for the tach, it uses a RPM sensor.
Dt rops. Ok thanks, I was told that it read from the alternator.It really helps if asking for a electrical diagram that you include the EXACT sub model you need it for, A GST Cabbed does not have the same wiring as a DT ROPS.
Also that tractor doesn't use the Alternator for the tach, it uses a RPM sensor.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
I don't know of any Kubota's that have ever used the alternator for the tach signal.
Most of these older models used mechanical tachs.
Newer models used engine sensors.
GreensvilleJay
Well-known member
Equipment
BX23-S,57 A-C D-14,58 A-C D-14, 57 A-C D-14,tiller,cults,Millcreek 25G spreader,
that's really just the connections to the cluster, not the schematic. A proper schematic would have parts listed, interconnections and CPU pinouts..... something any tech needs to troubleshoot and repair the cluster.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
I think the answer is a lot more complicated that just "it's right here" answer.
Read this thread, any similarities?
M120 will not shift into 5,6,7 or 8 gear in neither H or L range
When I am in H or L range and try to go into 5th, trzctor stops and alarm beeper starts up. I then can put in neutral and down shift to any gear below 5th and it runs as it should. Anybody know what's going on? Thanks
www.orangetractortalks.com
You need to get yourself the WSM (aka Service manual).
Dzień dobry czy ma ktoś może schemat instalacji elektrycznej Kubota l1511 dt special
Mod add:
Good morning, does anyone have a diagram of the Kubota l1511 dt special electrical installation
Mod add:
Good morning, does anyone have a diagram of the Kubota l1511 dt special electrical installation
Last edited by a moderator:
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
I don't know of a L1511 WSM (Service Manual) available.

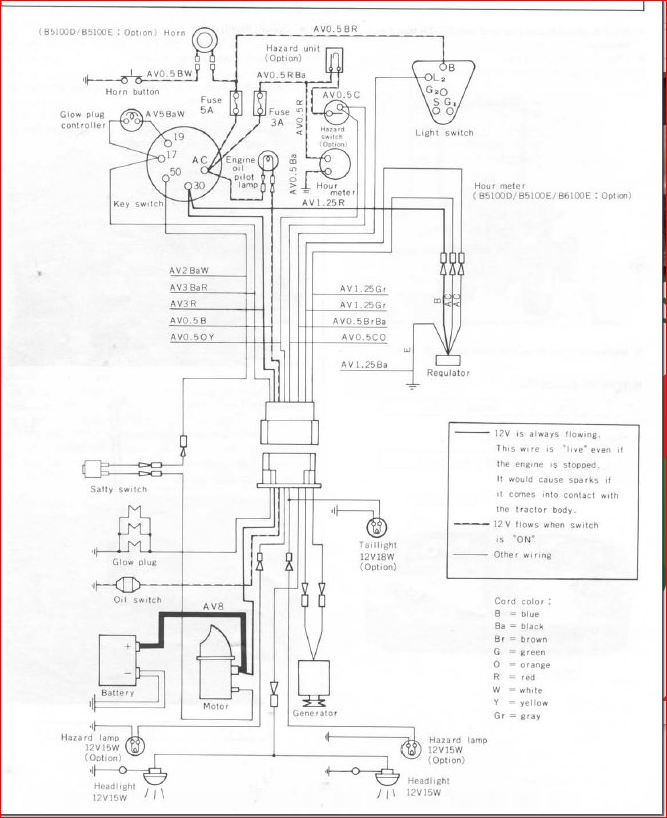

I will send you two tractor manuals that will have similar wiring, Look at colors of the wires and where they end up to compare.
Nie znam dostępnej instrukcji obsługi L1511 WSM.
Wyślę Ci dwie instrukcje obsługi traktora, które będą miały podobne okablowanie. Przyjrzyj się kolorom przewodów i ich końcowi, aby porównać.
