LA211 FEL Identifying Cylinder

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,847
5,957
113
Myersville, MD
windyridgefarm.us
Ok, I will disconnect and reconnect all the quick connectors for the loader.
What is referred to as PB ?? and tank swapped??
Power beyond is the hose that conveys pump pressure from the loader valve to the 3pt and mower. Tank is the hose going to the side of of the transmission.

Dig out your manuals and verify you have those hoses properly connected

Dan

  • Like
Reactions: 1 user

BillyBX

Member

Equipment
BX2200
Nov 27, 2020
38
5
8
Mt. Airy Maryland
I will re-verify! I took pics and labeled everything so I would like to think I got it correct, BUT who knows!
I will complete this task and get back to all of you here! Thanks :)

  • Like
Reactions: 1 user

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,847
5,957
113
Myersville, MD
windyridgefarm.us
I will re-verify! I took pics and labeled everything so I would like to think I got it correct, BUT who knows!
I will complete this task and get back to all of you here! Thanks :)
A simple test. Start the tractor and fully dump bucket. Move 3pt control to full up and then roll the bucket. If the lift comes up when you roll the bucket your tank and PB hoses are reversed.

Dan


BillyBX

Member

Equipment
BX2200
Nov 27, 2020
38
5
8
Mt. Airy Maryland
A simple test. Start the tractor and fully dump bucket. Move 3pt control to full up and then roll the bucket. If the lift comes up when you roll the bucket your tank and PB hoses are reversed.

Hi Dan, Did the test that you asked. No change. Tried it several times . . . . . .
I am sure the lines are all connected correctly, but I've seen people on here before that said that and admitted later they were crossed/ reversed.
I CAN NOT FIGURE THIS OUT!!


BillyBX

Member

Equipment
BX2200
Nov 27, 2020
38
5
8
Mt. Airy Maryland
Everything worked fine before servicing it with a couple new lines, connectors and fluid & filter change.
Did not adjust or mess with anything else . . . . . . :(


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,847
5,957
113
Myersville, MD
windyridgefarm.us
Everything worked fine before servicing it ing a couple new lines, connectors and thatfluid & filter change.
Did not adjust or mess with anything else . . . . . . :(
Whooaaaa. Whats this "couple new lines" thing? I dont recall you mentioning that before. What lines did you repIace?

Dan


BillyBX

Member

Equipment
BX2200
Nov 27, 2020
38
5
8
Mt. Airy Maryland
Lol :) I mentioned it yesterday in a post at 4:19 pm. !

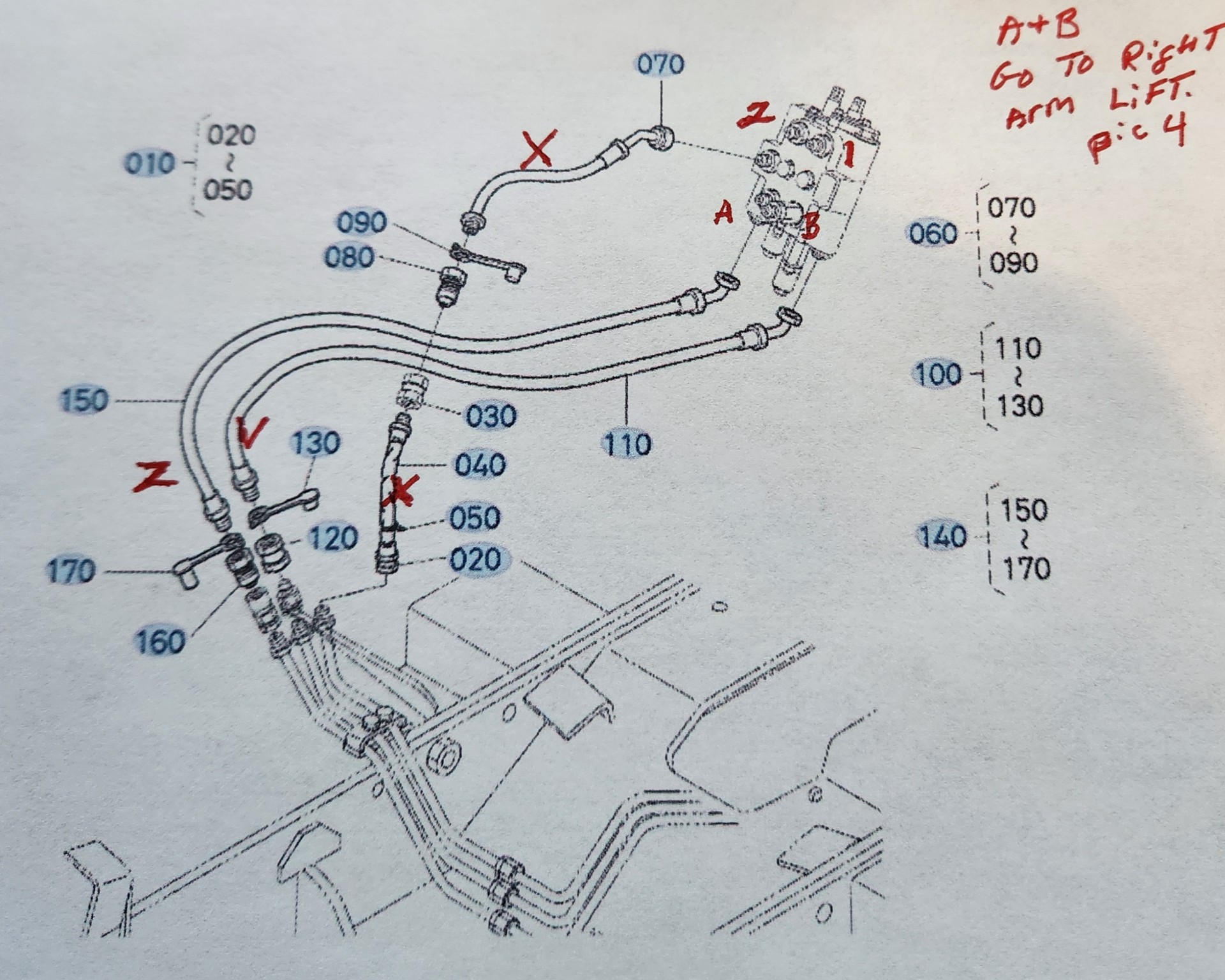

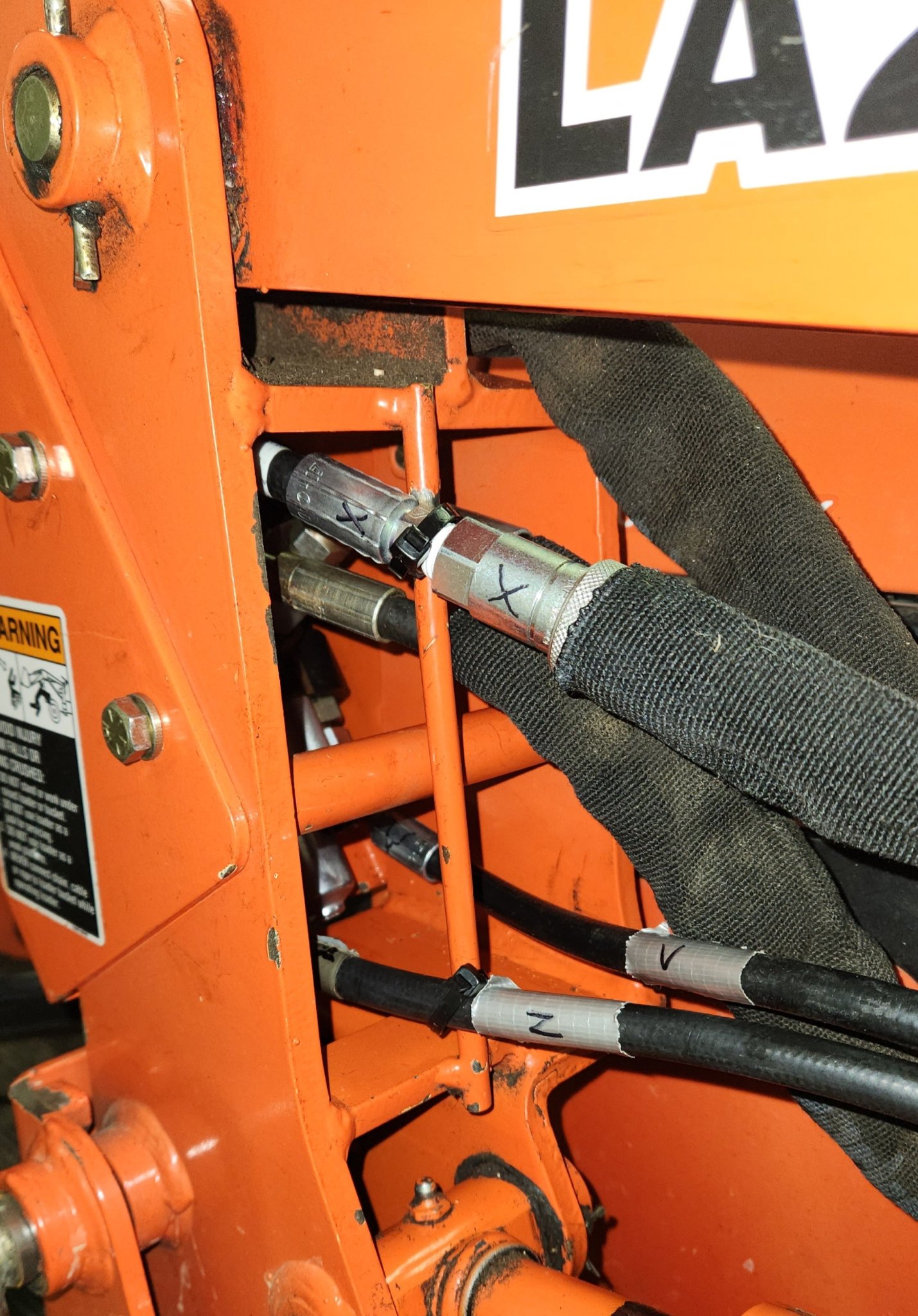

So here's some pics of the lines (hoses) in the pic #1 and #2 are lines/hoses and fittings I replaced.
They are all totally in the correct ports as I've now triple checked them with pics, labels and diagrams.

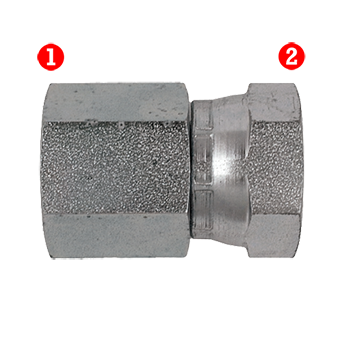

The 2nd pic shows another coupling that went onto one of the new lines/hoses into the control valve body.
Dag gone it, we gotta figure this out! LOL


Attachments

TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,847
5,957
113
Myersville, MD
windyridgefarm.us
Lol :) I mentioned it yesterday in a post at 4:19 pm. !
So here's some pics of the lines (hoses) in the pic #1 and #2 are lines/hoses and fittings I replaced.
They are all totally in the correct ports as I've now triple checked them with pics, labels and diagrams.
The 2nd pic shows another coupling that went onto one of the new lines/hoses into the control valve body.
Dag gone it, we gotta figure this out! LOL
I got money that says they are not connected properly. All three should go to the control vakve. .Left tk right where do they connect on the cintrol valve? And I wouod expect one set of those couplers to be turned arounx end to end so they can only be connected one way

Dan


Last edited:

Russell King

Well-known member
Lifetime Member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
7,020
2,475
113
Austin, Texas
I think the fastest way resolve this is for you to mark the three lines at the tractor end with colors and then take a picture of that. Then follow each line up to the valve and mark that end of the hoses with the same color as at the tractor. Take a picture of the valve and then post both pictures. Actually you say you have the pictures already so you should be able to post them easily.

How are the hoses between the valve and cylinders connected? Quick disconnects or hose to fitting in valve?


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
34,377
9,604
113
Sandpoint, ID
If I'm following your lines they are wrong.
If I am wrong, and they are routed properly, then I would take out the quick disconnects you replaced and see if that fixes the issue.



BillyBX

Member

Equipment
BX2200
Nov 27, 2020
38
5
8
Mt. Airy Maryland
All three lines do go to the control valve. They are plumbed and hooked up exactly as in the diagram. I used the same diagram but also my pics with labels confirmed every hose is exactly where it was prior to servicing.

Now I did observe that one of the new quick disconnects to the valve body (right before it screws onto the valve body) that the orifice is a lot smaller than the previous one. Not sure if this would be the issue but just an observation.
Tomorrow AM I will take and send more pics with complete descriptions and labels. Thanks so much for everyone participating in this headache of mine!!! 😵


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,847
5,957
113
Myersville, MD
windyridgefarm.us
All three lines do go to the control valve. They are plumbed and hooked up exactly as in the diagram. I used the same diagram but also my pics with labels confirmed every hose is exactly where it was prior to servicing.

Now I did observe that one of the new quick disconnects to the valve body (right before it screws onto the valve body) that the orifice is a lot smaller than the previous one. Not sure if this would be the issue but just an observation.
Tomorrow AM I will take and send more pics with complete descriptions and labels. Thanks so much for everyone participating in this headache of mine!!! 😵
Diagnostic #2

Remove the quick connects from lines 2 and 3 and connect the hoses straight to the pipes.

Dan
