If you look back at post #311, you can clearly see the soft outboard end, and the hard rest of the shaft.
That is just as it was turned; same tool & cut, no polishing or alteration.


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,617
864
113
Muskoka, Ont.
Yeah, I get it now.

  • Like
Reactions: 1 user

RCW

Well-known member
Lifetime Member

Equipment
BX2360, FEL, MMM, BX2750D snowblower. 1953 Minneapolis Moline ZAU
Apr 28, 2013
9,071
5,067
113
Chenango County, NY
Bill - have nothing to help you, but want you to know I’m learning a lot here.

The dialogue between you and the guys more skilled than me is much appreciated.

Thanks all for sharing. 👍😎

  • Like
Reactions: 1 users

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
Thanks, glad to help, but I think I'm getting more help & knowledge than anyone, and I appreciate all the input. (y)

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
Found this vid of a Hanix N150-2, using a "root mouse". o_O
That is an implement I've never seen.

Last edited:
  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ

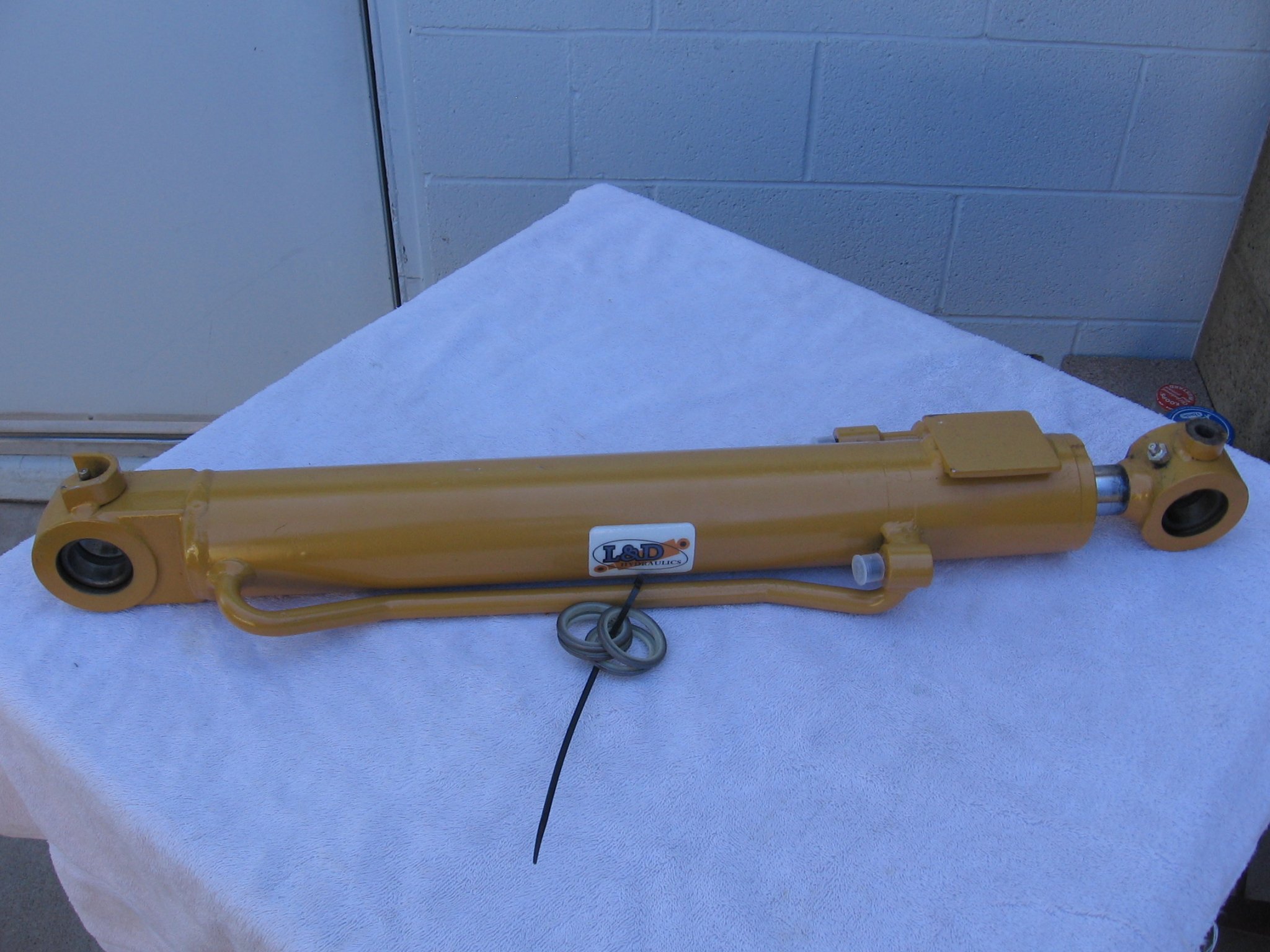

Got my cylinder back from rebuild at L&D Hydraulics. They gave me a substantial discount for cash, so I went for the rebuild. (still more than I wanted to pay, but it save me a lot of labor)
I have to say I'm impressed.
They replaced the ram, (weld looks fantastic) all the seals and packings, power honed the bore, polished the piston, & gland, cleared the grease passages, installed new zerks, pressure tested it, and repainted it. They left the wiper seals un-installed as I requested. I will install them after I decide if the bushings are good enough to re-use.

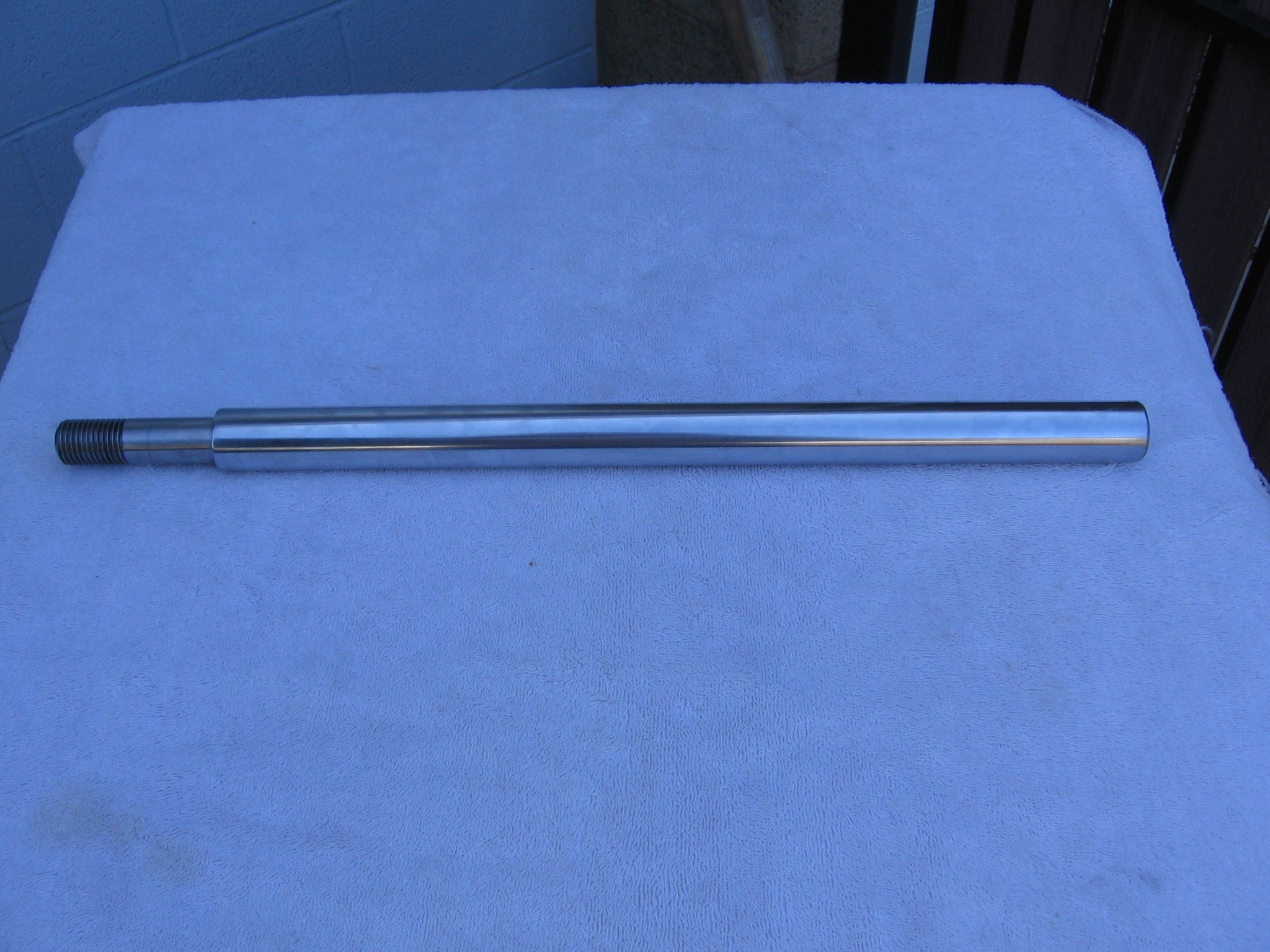

They saved the old bent 30mm ram as per my request, so I can use it to make 2-3 replacement pins.
It is bent about .028 over the whole length, so more than adequate for pins.
They also included a sheet of documentation listing the specs for the metric threads on the hose fittings, as I had mentioned I had not been able to identify them.


Last edited:
  • Like
Reactions: 5 users

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ

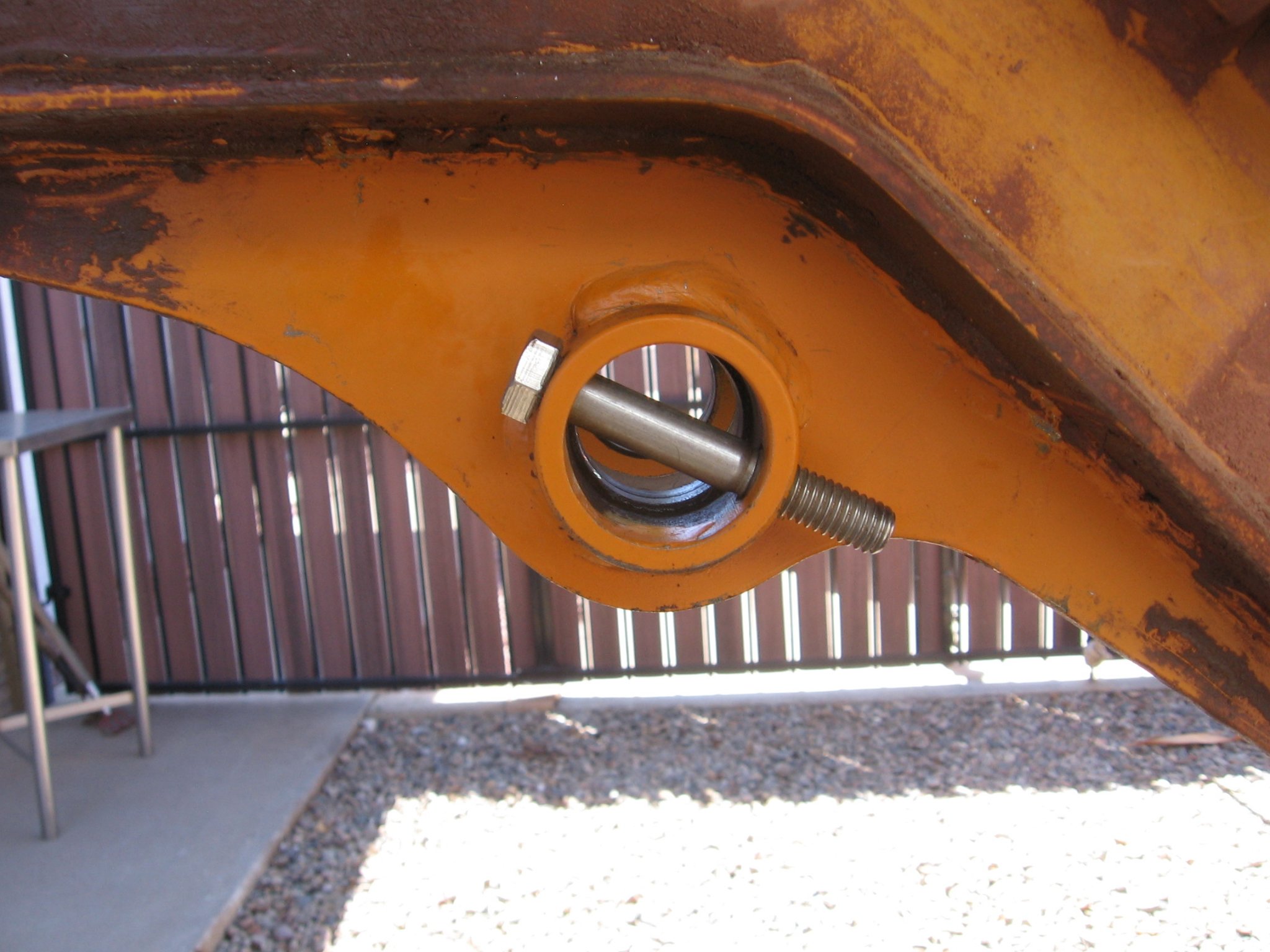

Most of the 8mm (.315) bolts that anchor the pins are worn and the cross holes are wallowed out, so I am going to drill/ream the holes to 3/8 (.375) and use 3/8 bolts.

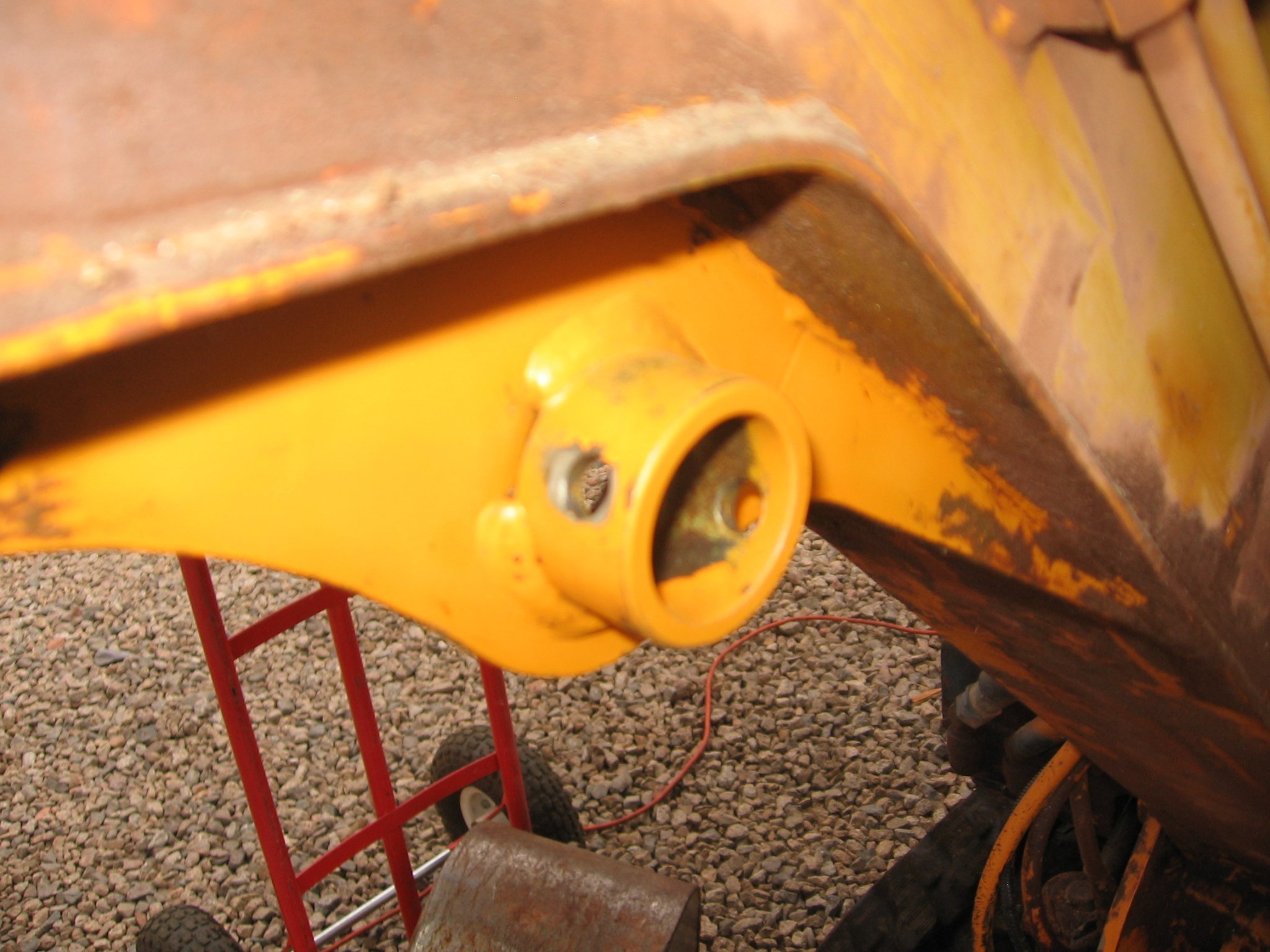

Pretty easy proposition in most cases, but the cross hole in the "elbow" of the boom doesn't have the clearance to get a normal drill or reamer in position. And yes, I tried a RT angle drill, and that was even worse.
Obviously, the hole was drilled before the hub was welded to the boom.

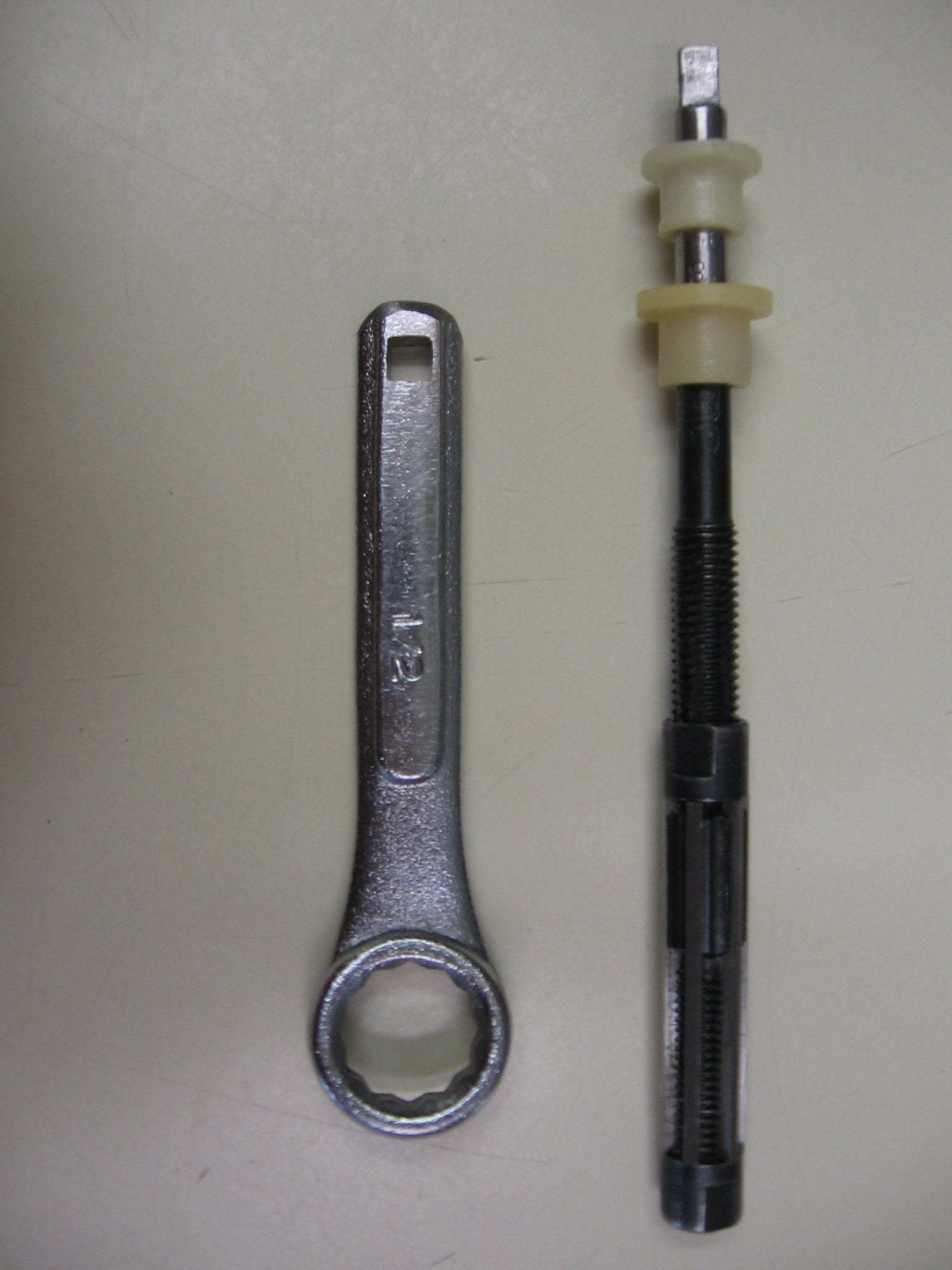

This hole was wallowed out from about .340 to about .360, so I got out an adjustable .375 reamer, made a couple different size nylon bushings, and made up a special .165 square wrench to turn it.

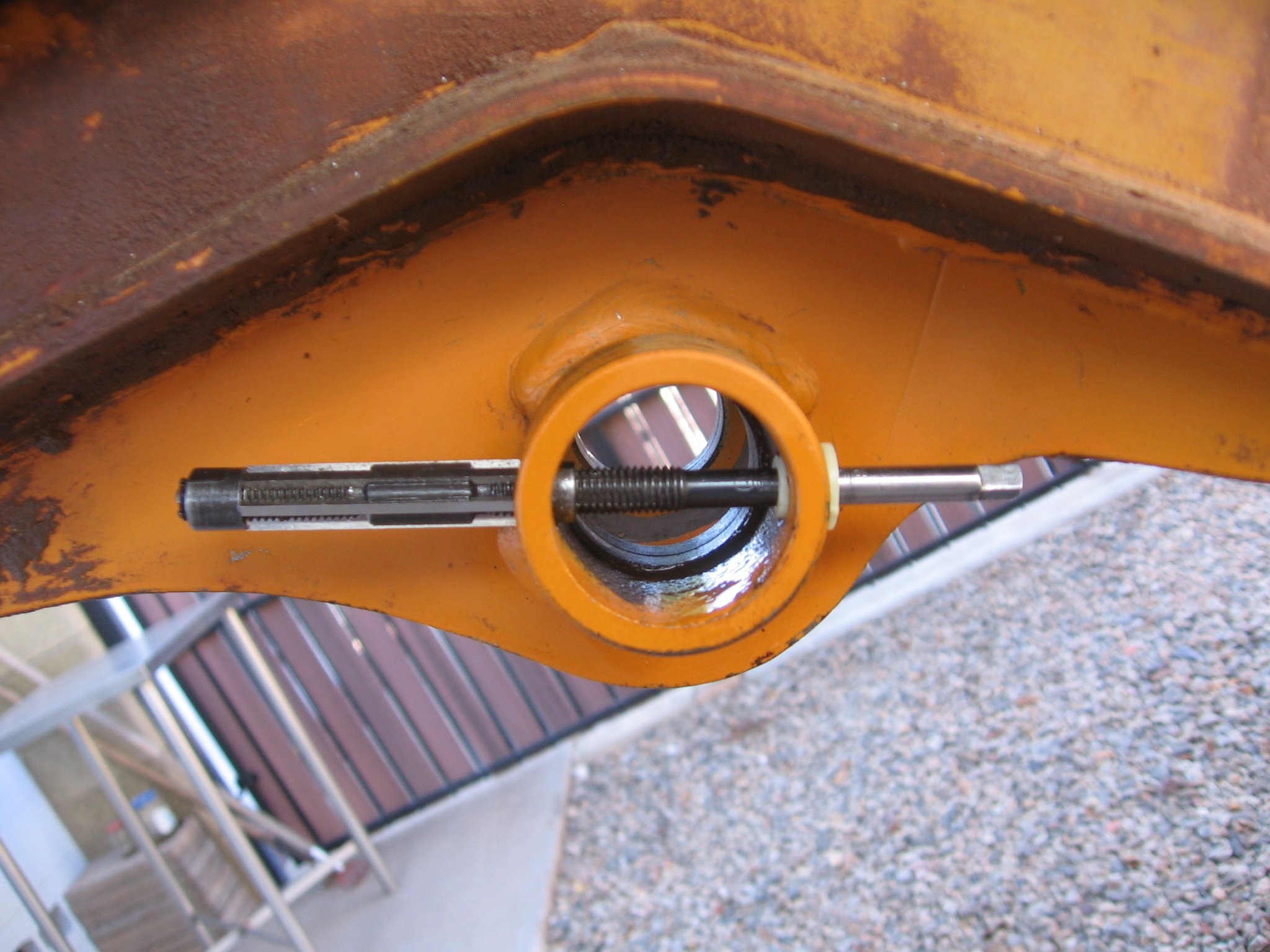

Using the smaller bushing to keep things aligned, I reamed one side out (in stages) to .375.

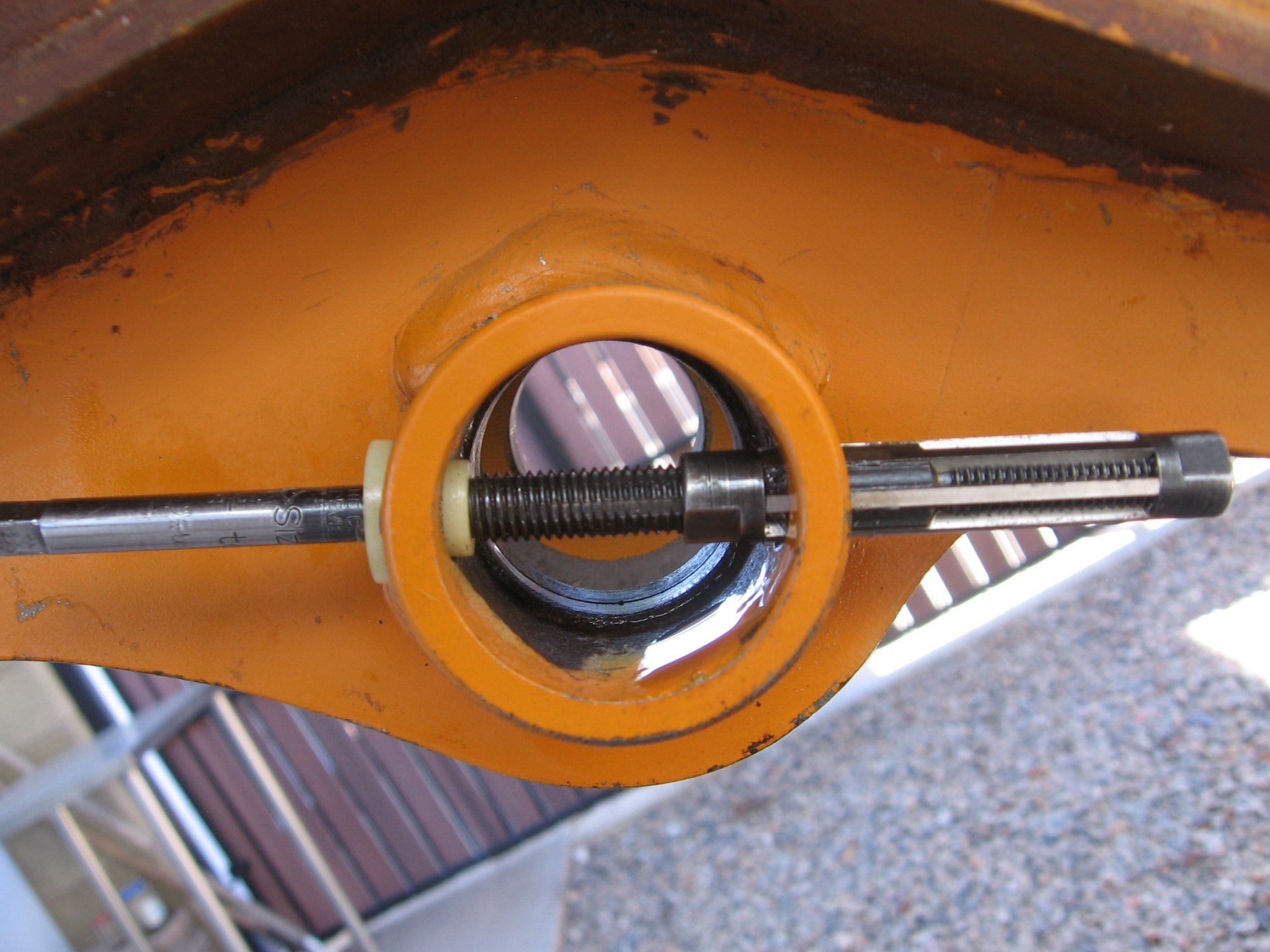

Then I reversed the reamer, used the larger bushing, and reamed the other side to .375.
Worked great, even if it was a bit tedious.
IMG_0005 copy 2.JPG
IMG_0010 copy 2.JPG
IMG_0003 copy 2.JPG

Last edited:
  • Like
Reactions: 1 users

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,065
113
Eastham, Ma
Most of the 8mm (.315) bolts that anchor the pins are worn and the cross holes are wallowed out, so I am going to drill/ream the holes to 3/8 (.375) and use 3/8 bolts.
Pretty easy proposition in most cases, but the cross hole in the "elbow" of the boom doesn't have the clearance to get a normal drill or reamer in position. And yes, I tried a RT angle drill, and that was even worse.
Obviously, the hole was drilled before the hub was welded to the boom.
This hole was wallowed out from about .340 to about .360, so I got out an adjustable .375 reamer, made a couple different size nylon bushings, and made up a special .165 square wrench to turn it.
Using the smaller bushing to keep things aligned, I reamed one side out (in stages) to .375.
Then I reversed the reamer, used the larger bushing, and reamed the other side to .375.
Worked great, even if it was a bit tedious.
View attachment 85581 View attachment 85582 View attachment 85583 View attachment 85584 View attachment 85585
Excellent!
I did not even know that such a tool was available.

  • Like
Reactions: 1 user

woodman55

Well-known member

Equipment
L6060HSTC, RTV 1100
May 15, 2022
926
720
93
canada
Most of the 8mm (.315) bolts that anchor the pins are worn and the cross holes are wallowed out, so I am going to drill/ream the holes to 3/8 (.375) and use 3/8 bolts.
Pretty easy proposition in most cases, but the cross hole in the "elbow" of the boom doesn't have the clearance to get a normal drill or reamer in position. And yes, I tried a RT angle drill, and that was even worse.
Obviously, the hole was drilled before the hub was welded to the boom.
This hole was wallowed out from about .340 to about .360, so I got out an adjustable .375 reamer, made a couple different size nylon bushings, and made up a special .165 square wrench to turn it.
Using the smaller bushing to keep things aligned, I reamed one side out (in stages) to .375.
Then I reversed the reamer, used the larger bushing, and reamed the other side to .375.
Worked great, even if it was a bit tedious.
View attachment 85581 View attachment 85582 View attachment 85583 View attachment 85584 View attachment 85585
How did you make the square hole in the 1/2 inch wrench ?

  • Like
Reactions: 1 users

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
How did you make the square hole in the 1/2 inch wrench ?
Back in olden times when I had access to the plant machine shop, I would have EDM'ed the square hole. (Electrical Discharge Machining)
This was pretty old school. I drilled the hole with a .164 carbide drill, then filed it square with a series of jeweler's files.
I had already cut the wrench down sometime ago for some another job.

Last edited:
  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
Excellent!
I did not even know that such a tool was available.

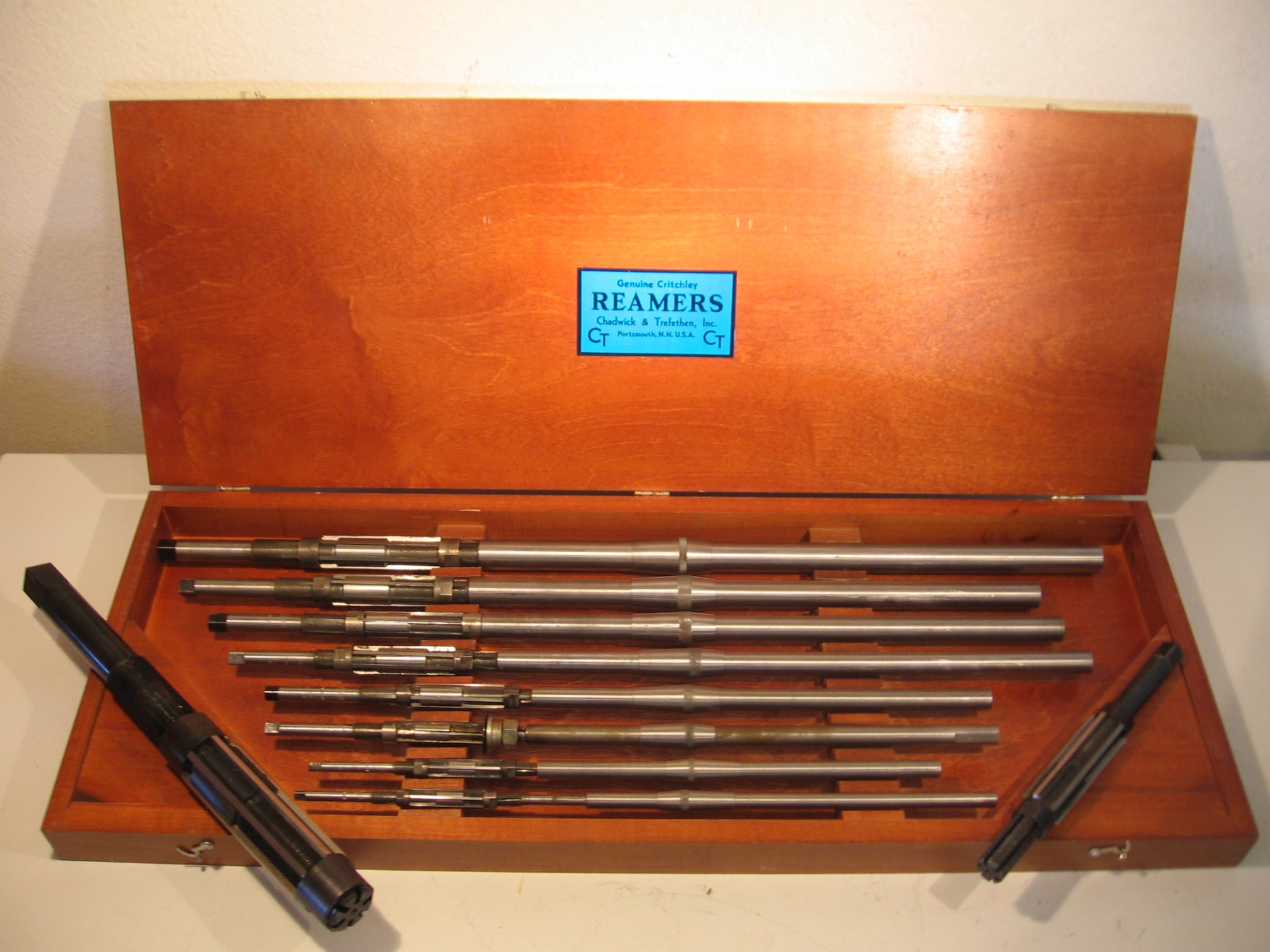

Lots of different styles and manufacturers, but they are not as common as they once were in these days of CNC machining. I have maybe another 8 or 10 besides these.

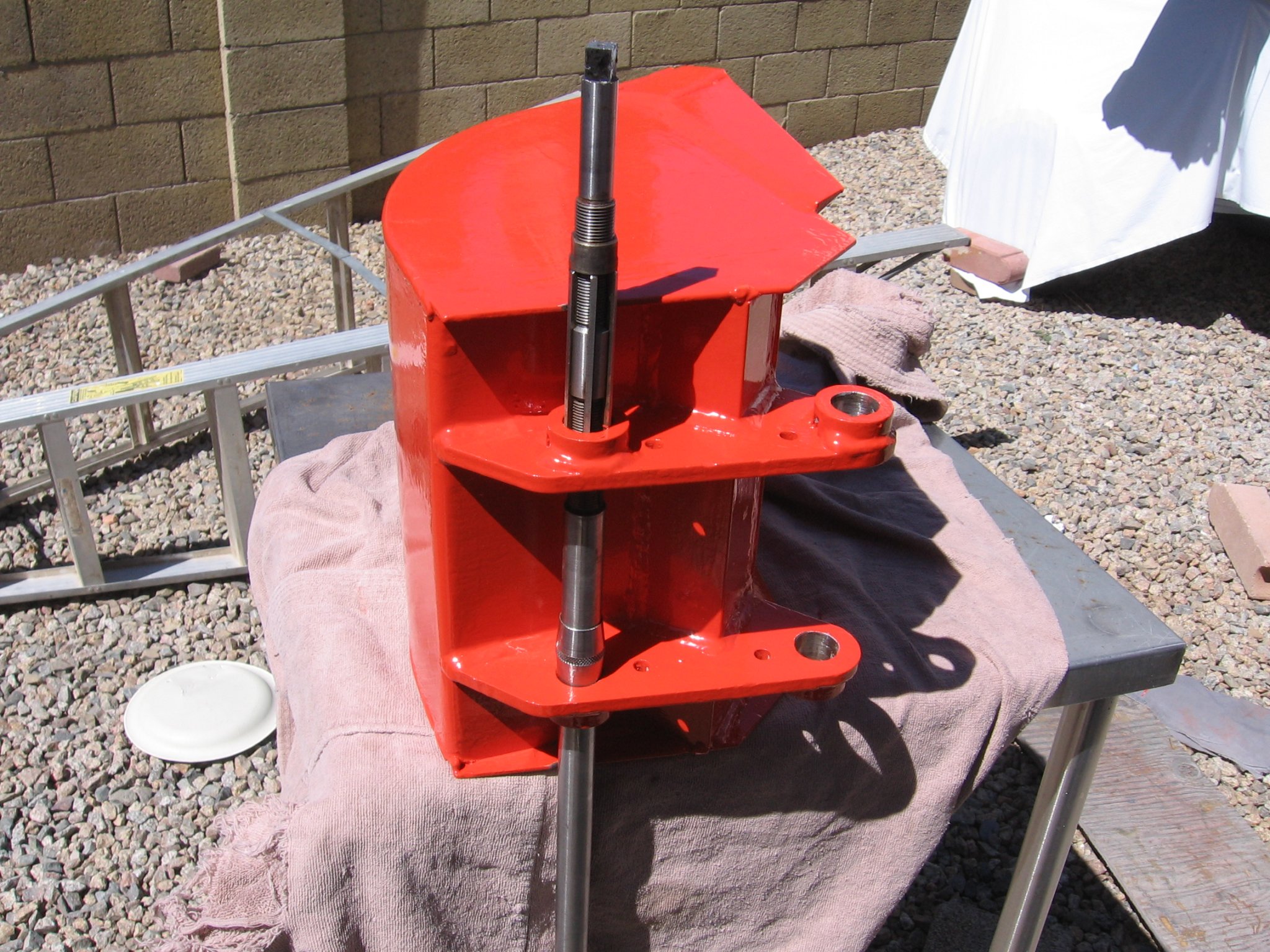

Here is another example of "line reaming".


Last edited:
  • Like
Reactions: 1 users

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,065
113
Eastham, Ma
  • Like
Reactions: 1 users

torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,617
864
113
Muskoka, Ont.
the filed it square with a series of jeweler's files.
What, no rotary broach??? <lol>

.164" seems an odd value. I would have expected 5/32" or 3/16" or maybe even 4mm for a wrench size.

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
What, no rotary broach??? <lol>

.164" seems an odd value. I would have expected 5/32" or 3/16" or maybe even 4mm for a wrench size.
You're right, I agree it is an odd size.
If it had been something more standard, I might have been able to turn it with a ratchet & square socket.
That would have been easier & faster.


torch

Well-known member

Equipment
B7100HSD, B2789, B2550, B4672, 48" cultivator, homemade FEL and Cab
Jun 10, 2016
2,617
864
113
Muskoka, Ont.
Now you got my curiosity up, so I went and checked my adjustable reamers. The 3/8"- is 0.147" and the 3/8"+ is 0.162". I guess I just always used a tap wrench and never thought about it before. Would there have been enough room for a ratcheting tap wrench?


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,491
2,507
113
Peoria, AZ
Would there have been enough room for a ratcheting tap wrench?

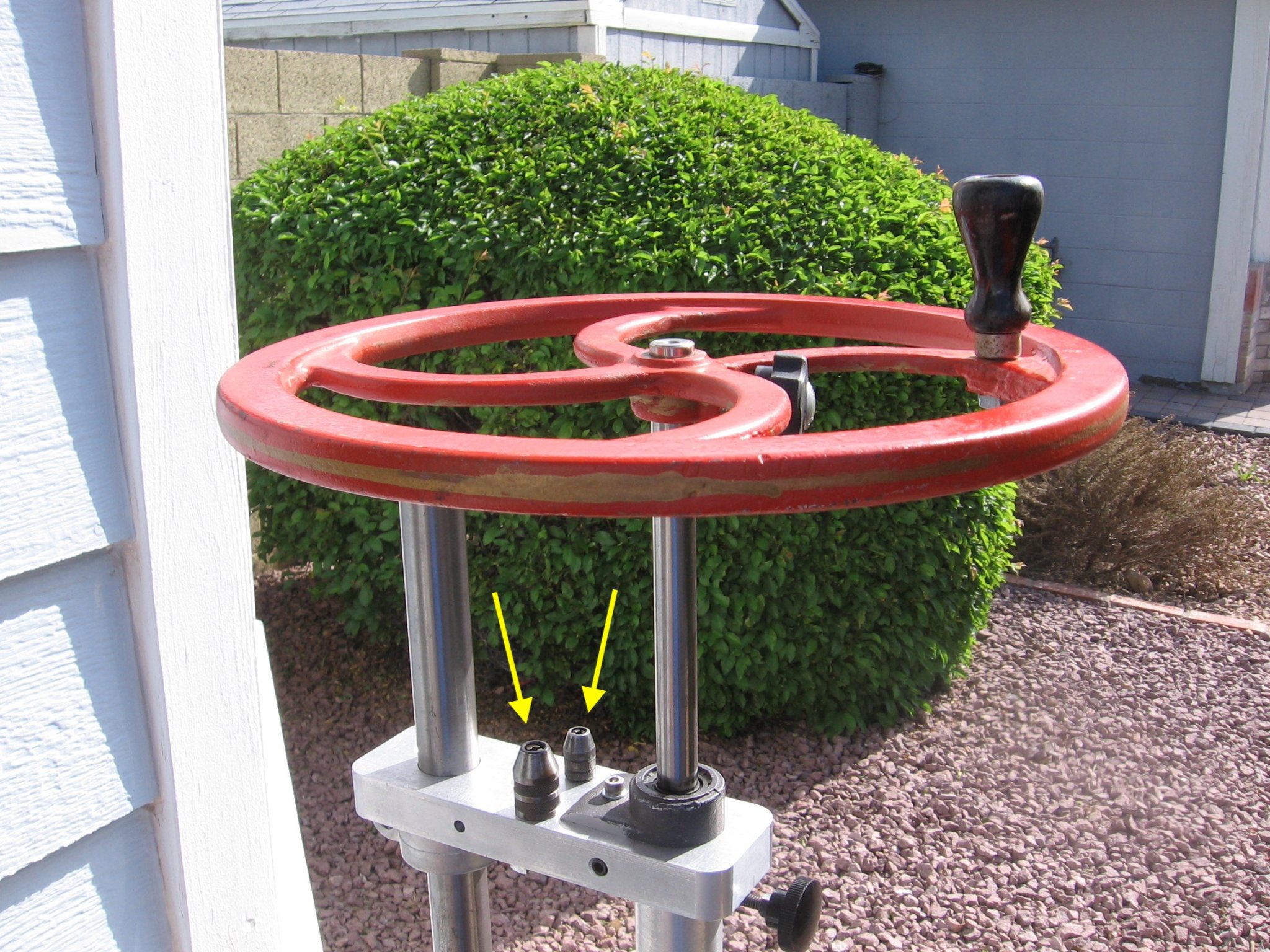

No, not even close. I have a couple of small tap chucks that I use as reducers for my big tapping stand, (see pic) that I had hoped I could use, and then drive one of them with a square socket, but not enough room for that either.


Vigo

Well-known member

Equipment
B6100, B8200
Jan 9, 2022
595
340
63
San Antonio Texas
VERY cool that you got the hydraulic shop to follow such specific instructions (keep old ram, write down thread sizes, leave wiper seals out) and not have them miss any of them.

Very cool that you have some 'free' pin stock. Free, yeah let's choose to think of it in those terms..

The 'root mouse' is odd.. It's a ripper but I have never seen one shaped like that. With the horizontal blade it reminds me of a 'root grubber' tractor attachment. But with the vertical pylon it also reminds me of a 4way splitting wedge on a log splitter.

Which leads me to the rabbit hole of: Can i buy any cheap appropriately sized log splitter wedge and make an attachment out of it? :ROFLMAO:
