B670 Backhoe Rebuild

Jtub

New member

Equipment
B7100, Fl850, B670, B219
Jul 20, 2015
4
1
0
Yakima, Wa.
Re: Backhoe rebuild

Yea! Thank you. Perfect timing for me lol. Almost torn down. Then the fun begins!


Seemtns

New member

Equipment
B7100
Jan 8, 2016
12
2
3
NH
Here are more pics of my rebuild of the B670 Backhoe, I will also forward websites I got parts from.

ASBBearings.com
This place is great I got all the bearings there, priced very well.

Surpluscenter.com
Hoses, pumps, pto shaft coupler, valves etc.

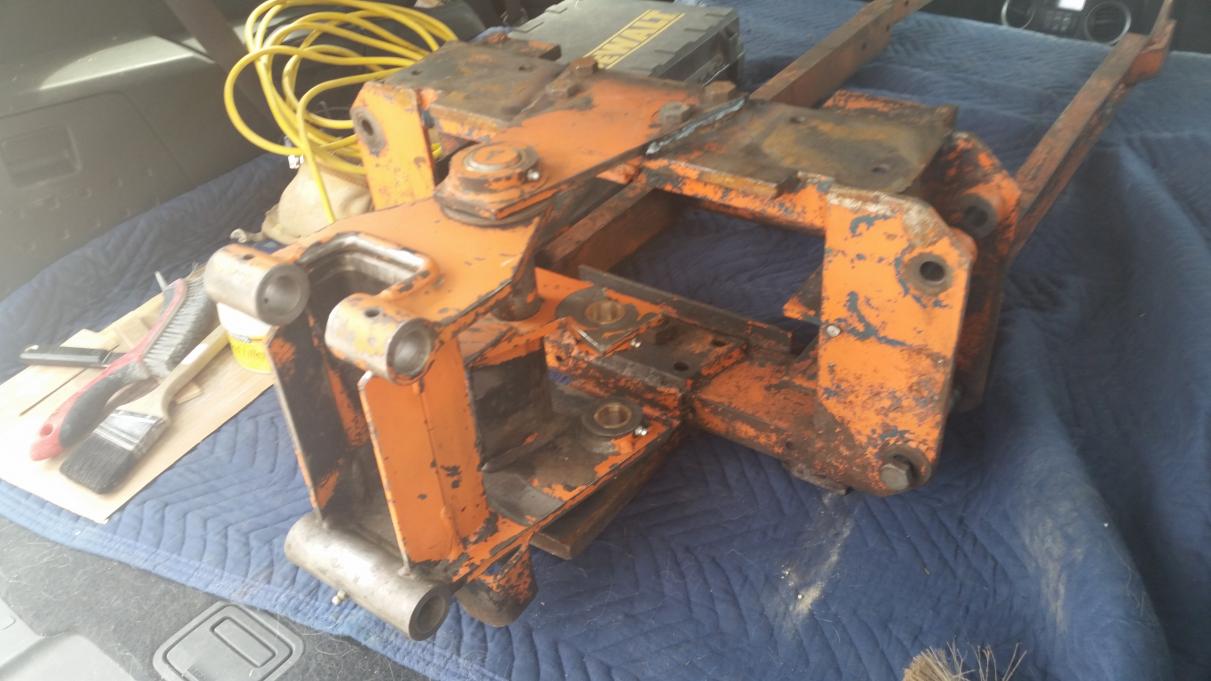

The bottom "ball joint" is just another bearing. What I did was place a heavy wall 3/8" piece of pipe, I think it was 2.5" in length, i had it welded in the right spot on the mounting plate and with the sized bearing from ASB pressed in. Then if you look at the photo with the swivel carriage and frame. I had them weld the mounting plates due to the amount of slop that was there from the past 40 plus years. I figure I won't ever need to get in there again!

Ebay
I got the 6 spoon valve for $125.00 brand new old stock, they had a few of them type in the part number.

Tractorjoe.com
Tire rims

Petes tire barn, this is a local store for me, but look them up on line and they will ship. You can also Simpletire.com, I got the 8-16 AG rear tires here.

Grizzly.com has a huge supply of spacers needed between the hoe frame and pin holes.

Amazon.com I bought cold rolled steel tube A513 1.5" OD 1"ID. This welds very nice, very heavy tube for all your 1" pin stock.

Tractor Supply had the right color spray paint on sale for 2.95 each...bargin

My local kubota dealer had all necessary hose connectors at a very reasonable price, the one and only item they could get for that backhoe were the teeth, and shafts which were actually Woods Parts
Hope this helps.
I did most of the work myself except the welding which was done by a good friend for a little money. He actually made the rear brackets for my after I gave him the pattern. They work great.

One of the biggest helps was Kubota.com (full site) go to parts, then illustrated parts list, scroll down, and check off I accept terms, type in your machine and you got the whole blown up view page by page. Very helpful even though you can't by the parts anymore, you can see what you need with specs.

The one thing I'm going to change is to cut new slots in the back mounting plate to raise the hoe by 2". This will be very helpful to ground clearance.
Happy rebuilding!


Attachments

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,578
2,636
113
Peoria, AZ
Great pics & write up for supplies.


sinisterbiker

New member
Sep 26, 2016
43
0
0
US
Nice, what is the spacing between the subframe side rails. I have a three point backhoe i want to make a subframe for.

Sent from my SM-G930T using Tapatalk


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,578
2,636
113
Peoria, AZ
Hopefully someone will jump in here, I can't get to mine to measure it for the foreseeable future.:(


sinisterbiker

New member
Sep 26, 2016
43
0
0
US
O.k. , was also wondering in that rod diameter that goes between them in the rear and sets into the tractor mounted brackets

Sent from my SM-G930T using Tapatalk


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,578
2,636
113
Peoria, AZ
OK, spacing between the side rails is 14 3/4".
Rails are 3" x 1 1/4" x 1/4" channel.
Bar is 1" diameter.
The front connectors are made from 2" x 1/2" stock, connector bolts are 1/2"-13.

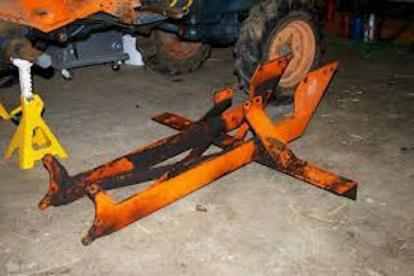

1st pic is B670 frame (upside down)
2nd is connector to FEL subframe
3rd is 1" bar to diff housing plates
4th is B219 FEL subframe


Attachments

sinisterbiker

New member
Sep 26, 2016
43
0
0
US
Awesome, thanks. That rod and those two front bolts are the only connection points to the machine ?

Sent from my SM-G930T using Tapatalk


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,578
2,636
113
Peoria, AZ
Awesome, thanks. That rod and those two front bolts are the only connection points to the machine ?
Sent from my SM-G930T using Tapatalk
Yup, I was stunned when I realized that, but it works.


Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,578
2,636
113
Peoria, AZ
Thank you Andy. It is really nice to have one's work appreciated.:eek:


KennysNewFarm

Member

Equipment
MX5800
Dec 28, 2017
220
13
18
Missouri
Re: Backhoe rebuild

We had the same issue with wood peckers, have you tried hanging an owl or hawk on the eve. Kept them from returning.
