Not sure how are the measurements are made. Longer tooth you lose lever advantage for breaking roots. In actual use I never felt it was too short. Using the tip to cut, split or break roots important Clearing top roots allows deeper penetration. Large oak, maple, persimmon cedar. Agree with the shank and hitch length should not hit the boom. The design geometry of a close to a bucket should maximize breakout force.

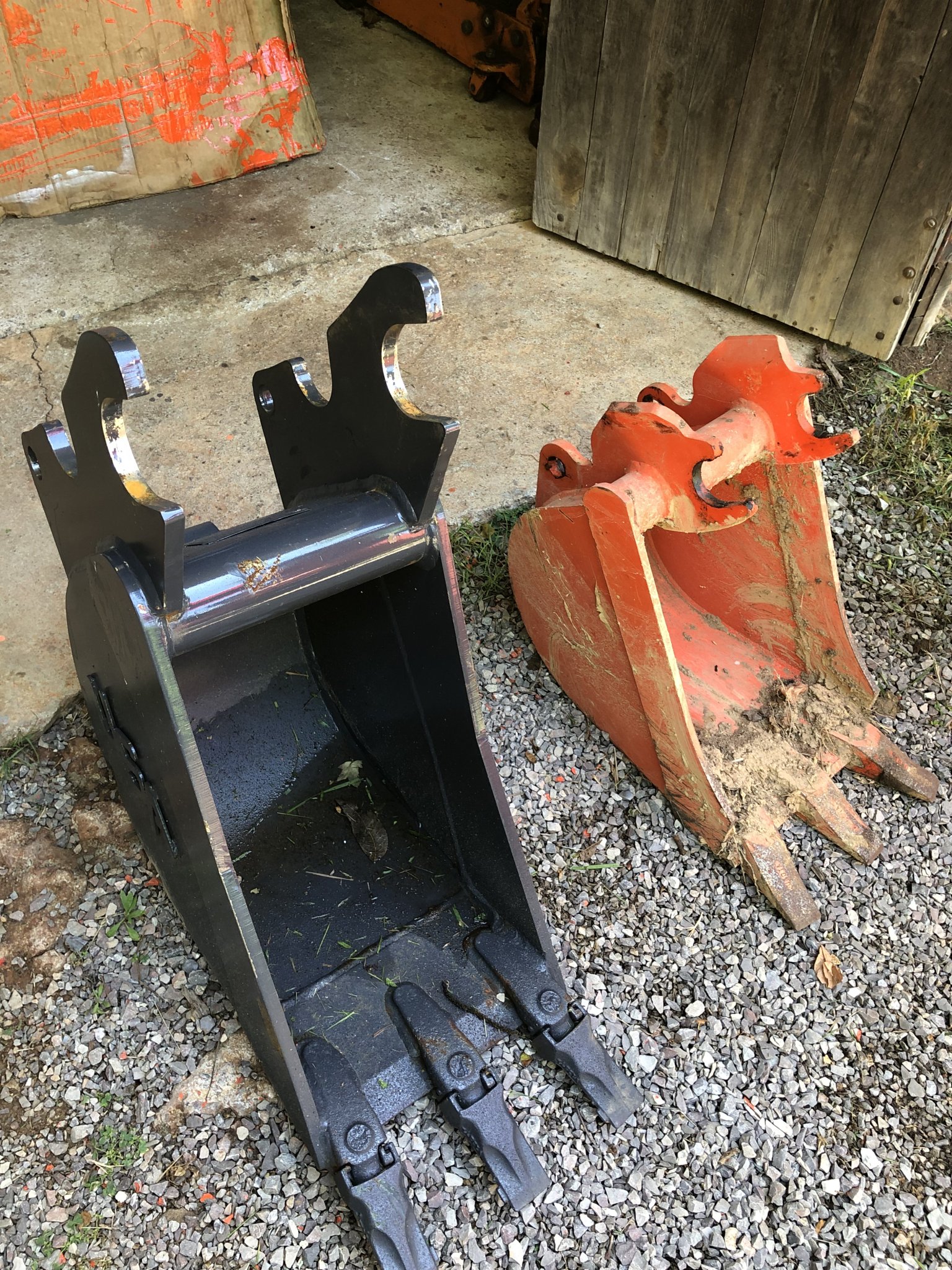

Kubota 12” excavator compared to 12” B26 bucket.

Test fit no-go. Need to trim OEM ears to similar profile of bucket to clear thumb.


Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee

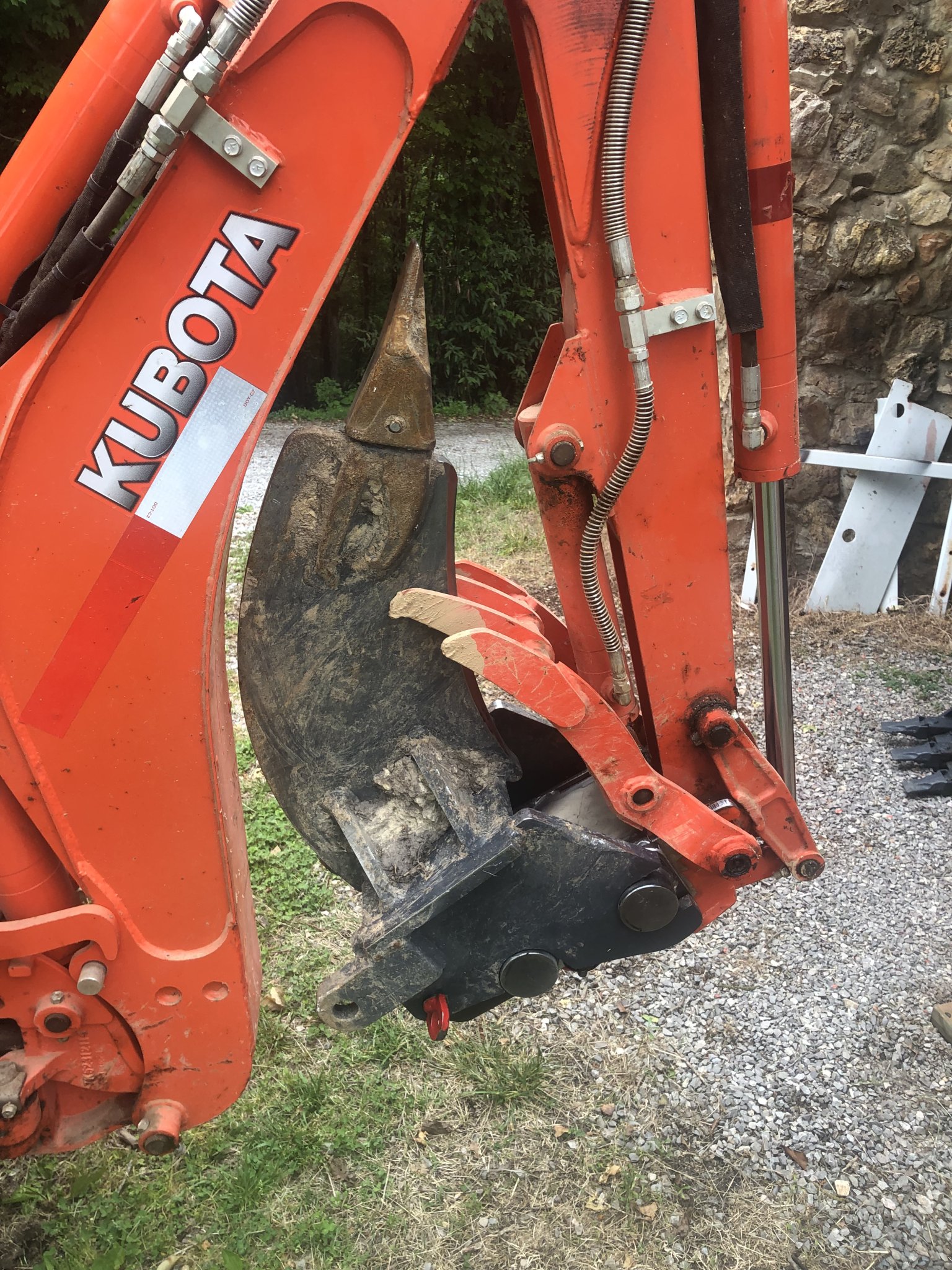

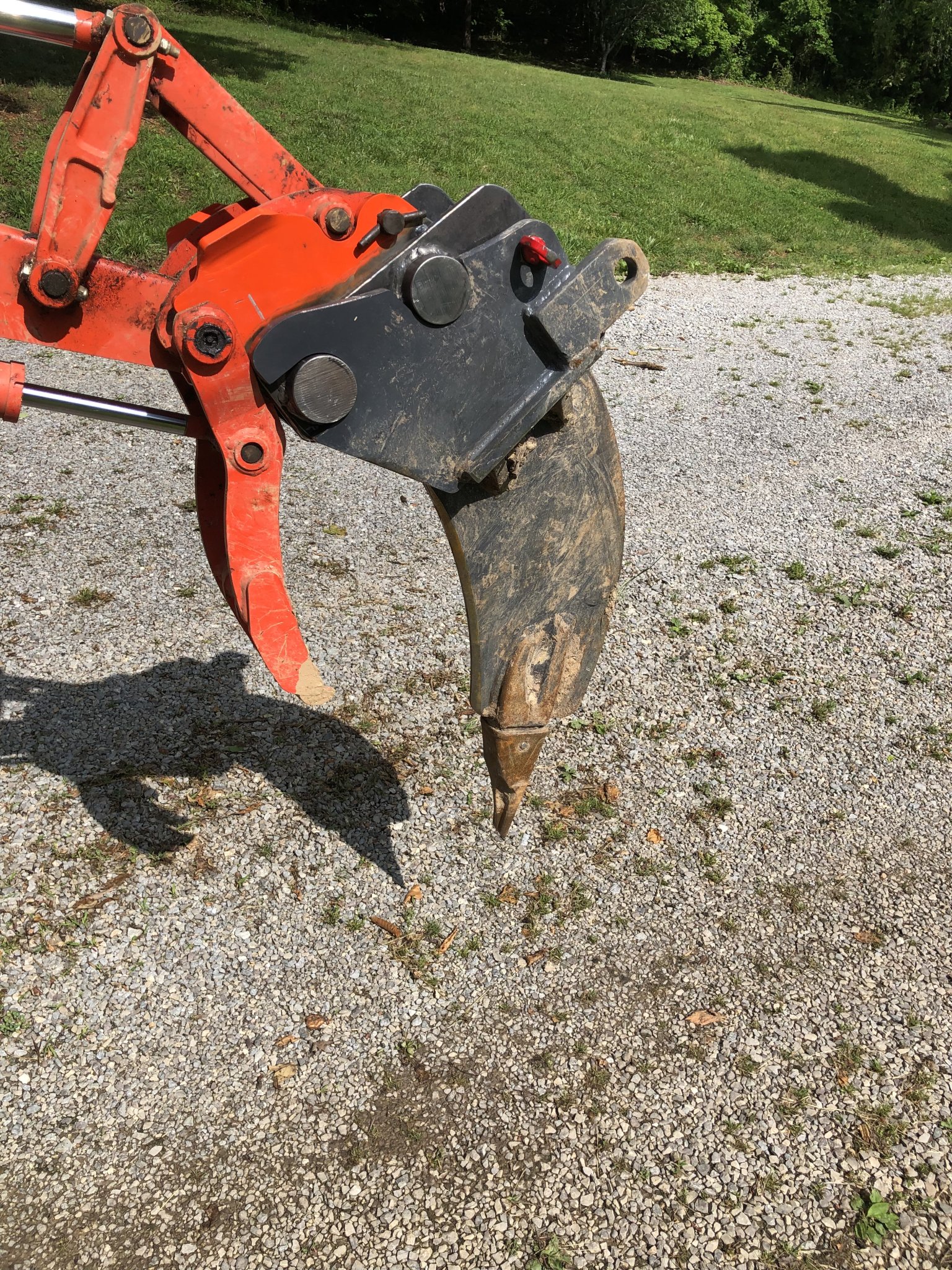

Got it on. Some interference with thumb articulation. Thinking how best to move the ears to give best geometry.

  • Like
Reactions: 1 users

Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee
Does your ripper tip come that close to touching the boom on your M59?

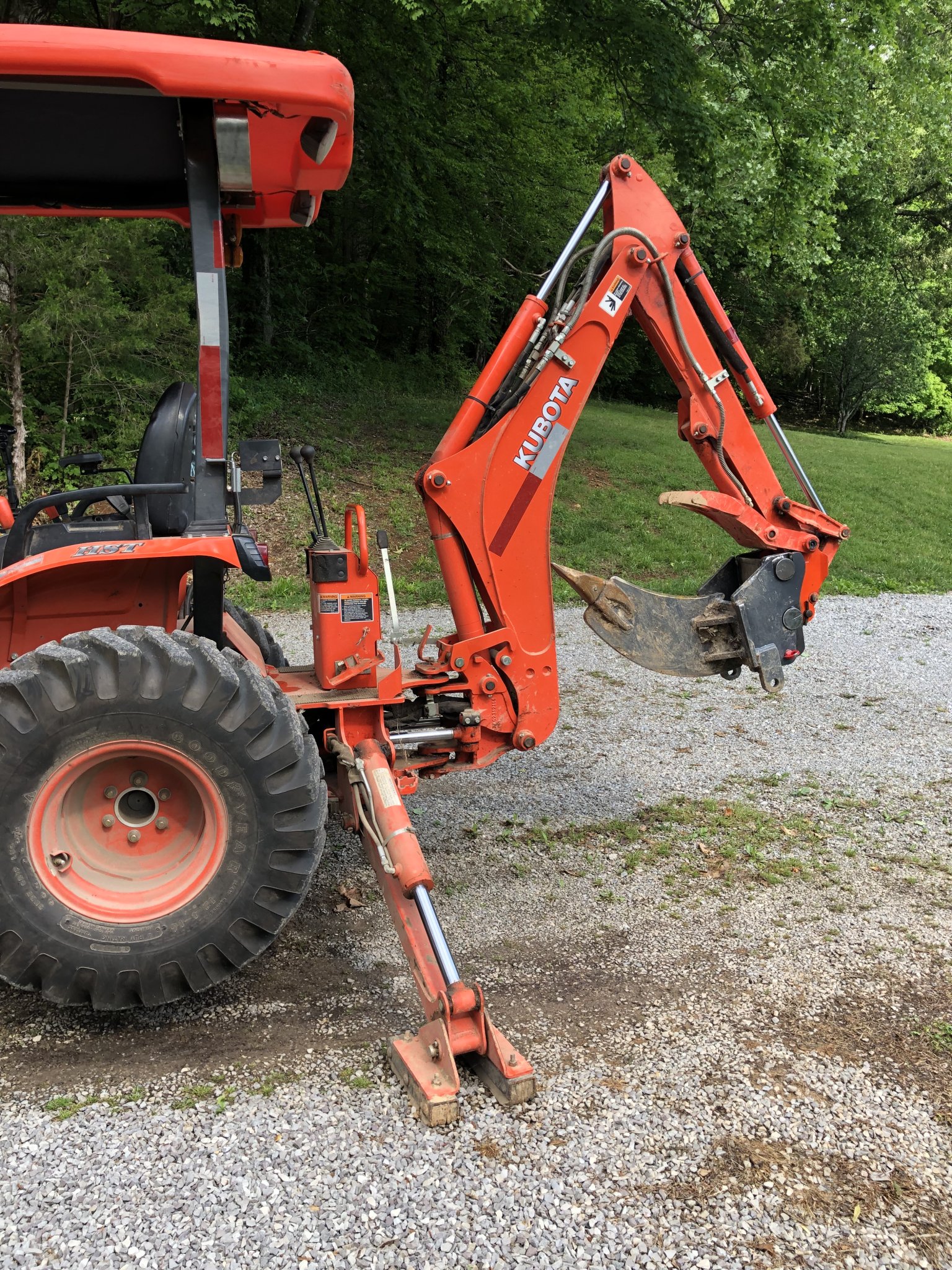

Does not hit the boom on the M59. About 1.5” clearance.

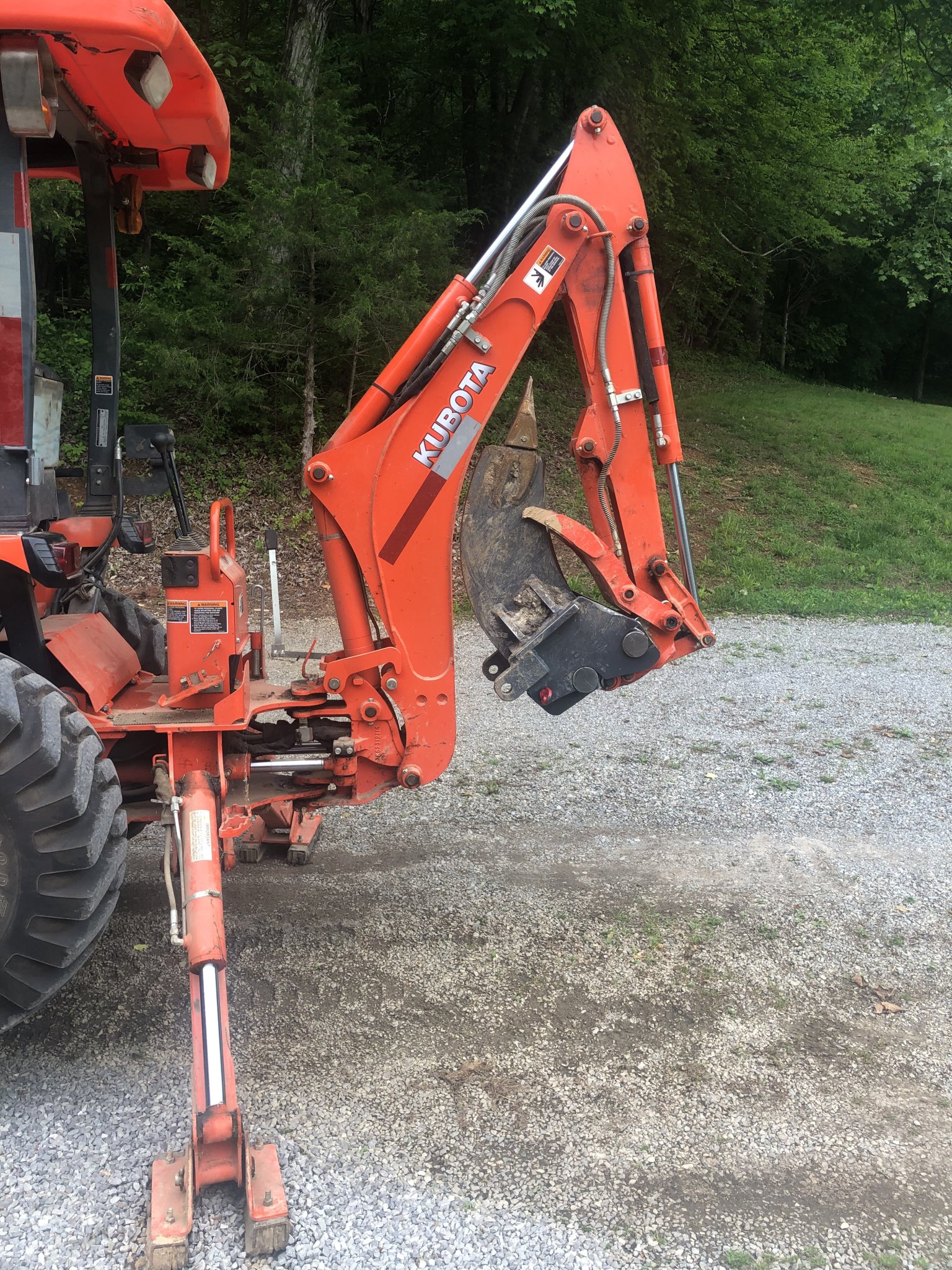

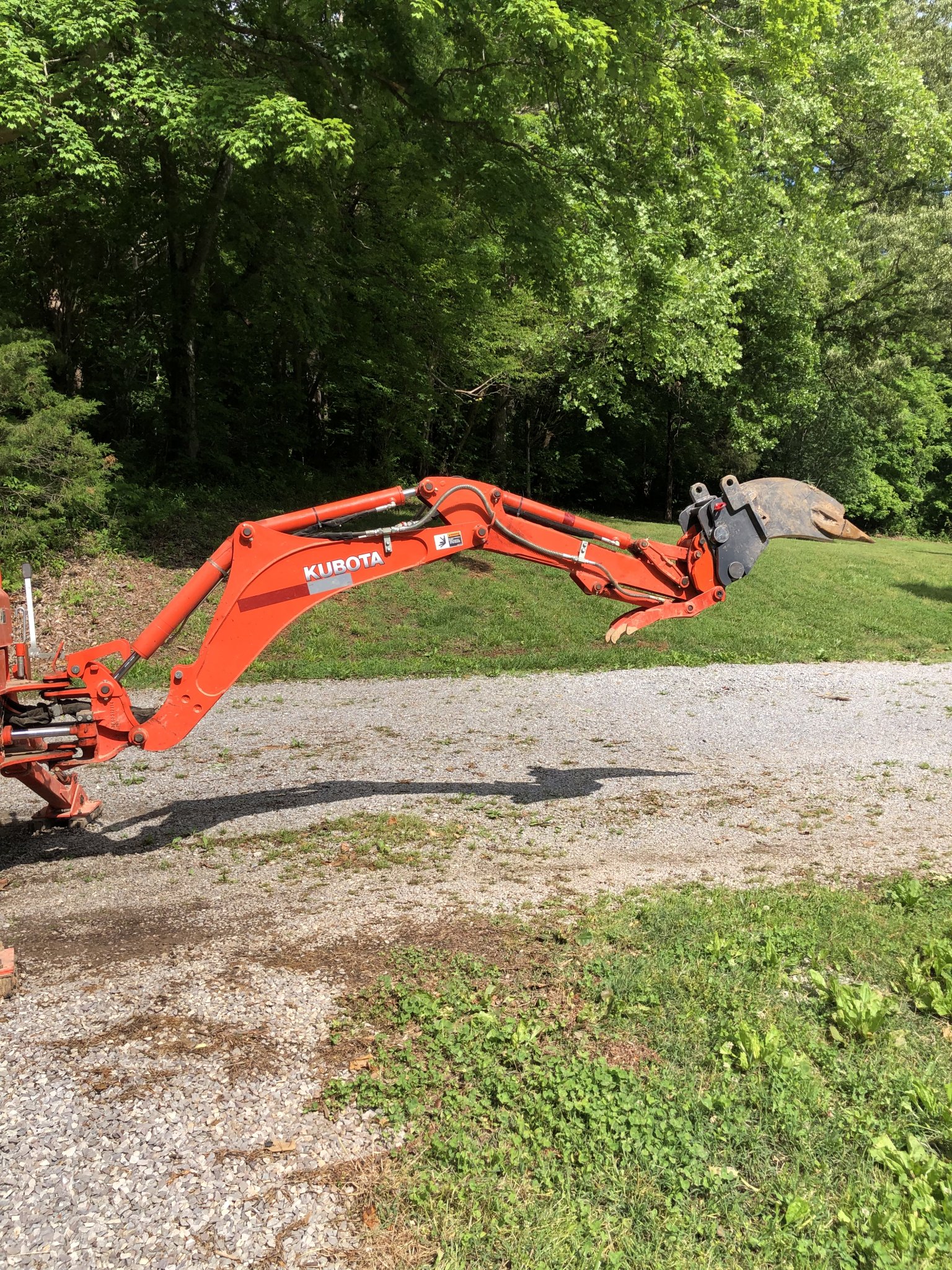

Does hit the boom on the B26. The ears are only tacked to the excavator coupler. Thinking about trimming the ears more to have front “C” go from top to the bottom of the coupler. This give about 4” more clearance from the boom to ripper tooth. Also move the ears toward the tractor about an inch will give thumb more clearance. Sleep on it and look with fresh eyes before cutting. Prototype growing pains.

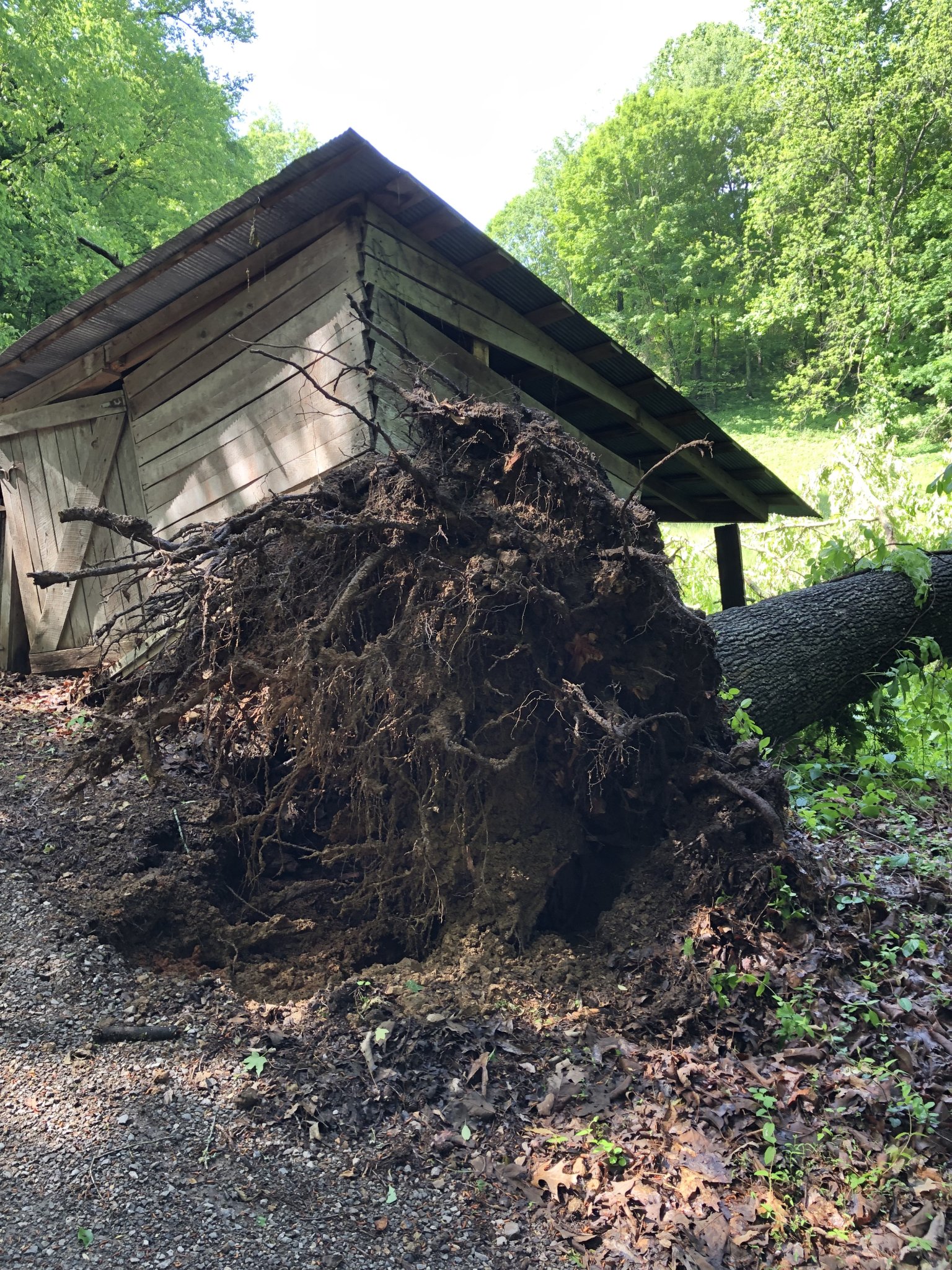

Had this red oak uprooted during storm last night. Root ripping job.

  • Like
Reactions: 1 user

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,066
113
Eastham, Ma
Does not hit the boom on the M59. About 1.5” clearance.

Does hit the boom on the B26. The ears are only tacked to the excavator coupler. Thinking about trimming the ears more to have front “C” go from top to the bottom of the coupler. This give about 4” more clearance from the boom to ripper tooth. Also move the ears toward the tractor about an inch will give thumb more clearance. Sleep on it and look with fresh eyes before cutting. Prototype growing pains.

View attachment 102132
Had this red oak uprooted during storm last night. Root ripping job.
Have ordered and paid for my "Ox Thumbs" 28" ripper.
Now, just waiting for it to arrive from GA (via UPS).

I still think that the tip will not hit the boom on my L48, but am not absolutely certain of that.
If it does hit, I am planning to glue a 4" square piece of flat hard rubber to the bottom of the boom, at that particular spot.


Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee
Have ordered and paid for my "Ox Thumbs" 28" ripper.
Now, just waiting for it to arrive from GA (via UPS).

I still think that the tip will not hit the boom on my L48, but am not absolutely certain of that.
If it does hit, I am planning to glue a 4" square piece of flat hard rubber to the bottom of the boom, at that particular spot.
Think you will enjoy your new ripper. Useful tool. Measuring from the bottom of front “C” of the quick attach to the tip would give the overall length to compare rippers.


fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,066
113
Eastham, Ma
Think you will enjoy your new ripper. Useful tool. Measuring from the bottom of front “C” of the quick attach to the tip would give the overall length to compare rippers.
Thanks.
At this point, I will just wait for the ripper to arrivre, .....and see how it fits ......or not?


Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee

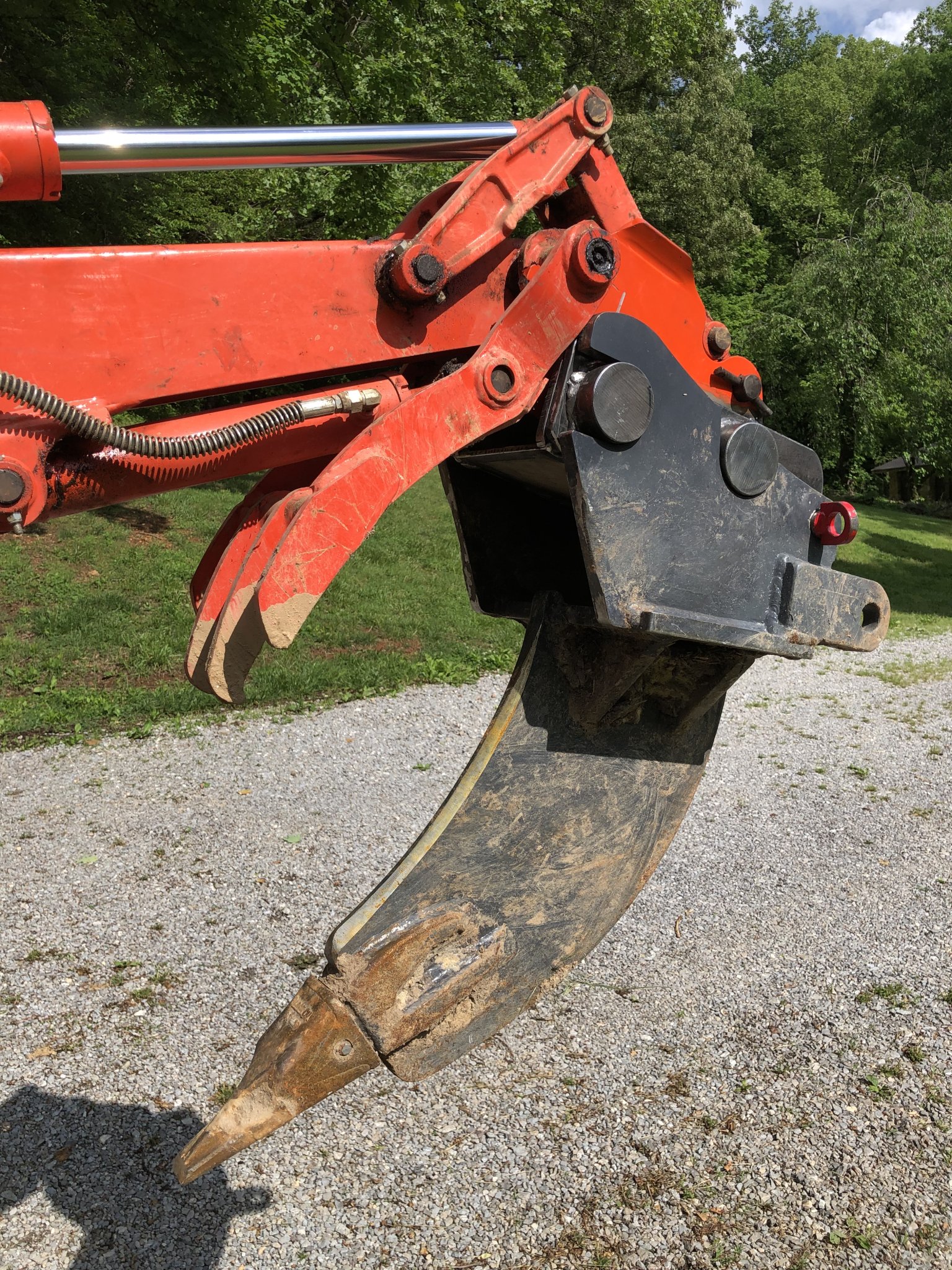

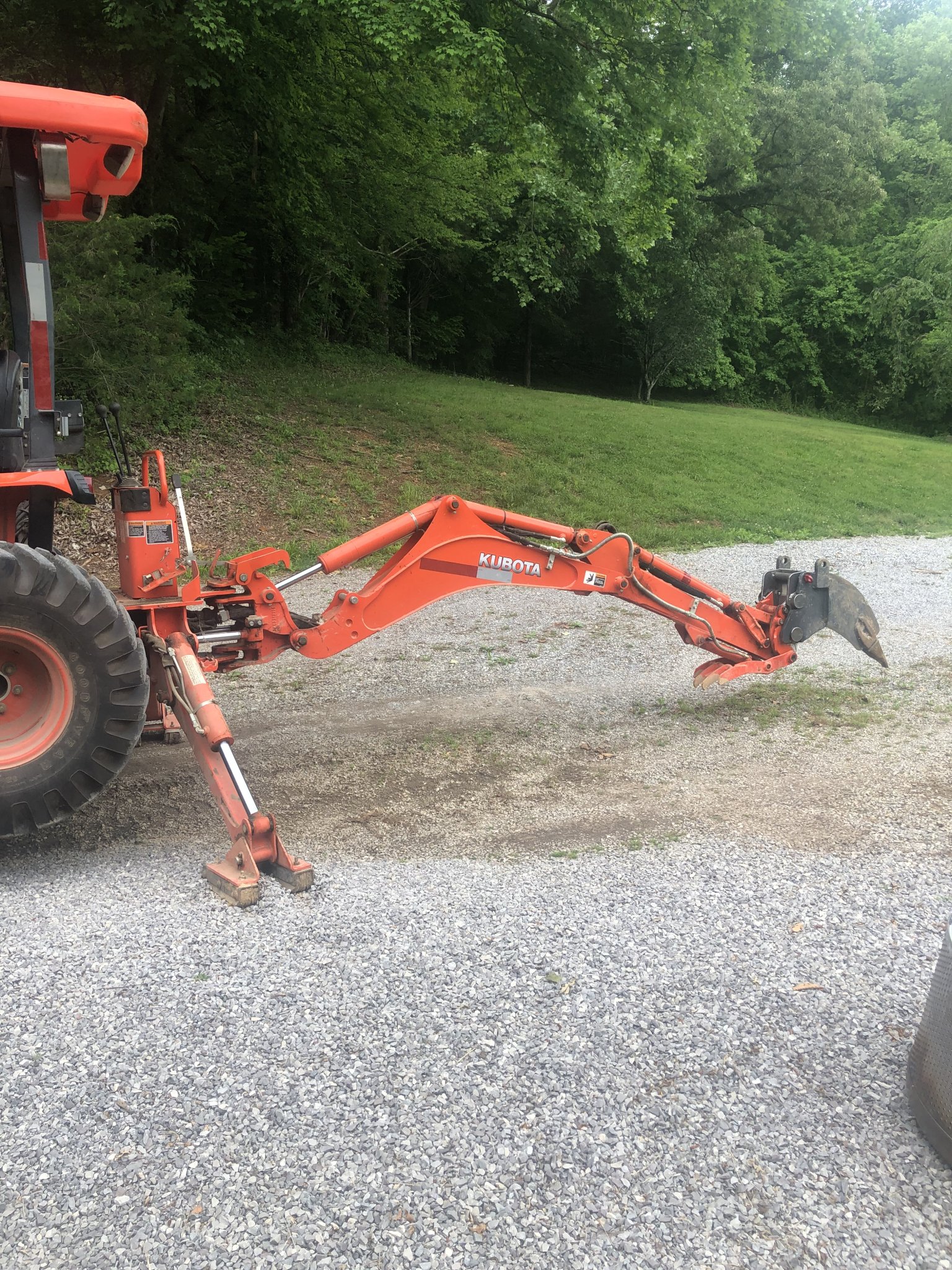

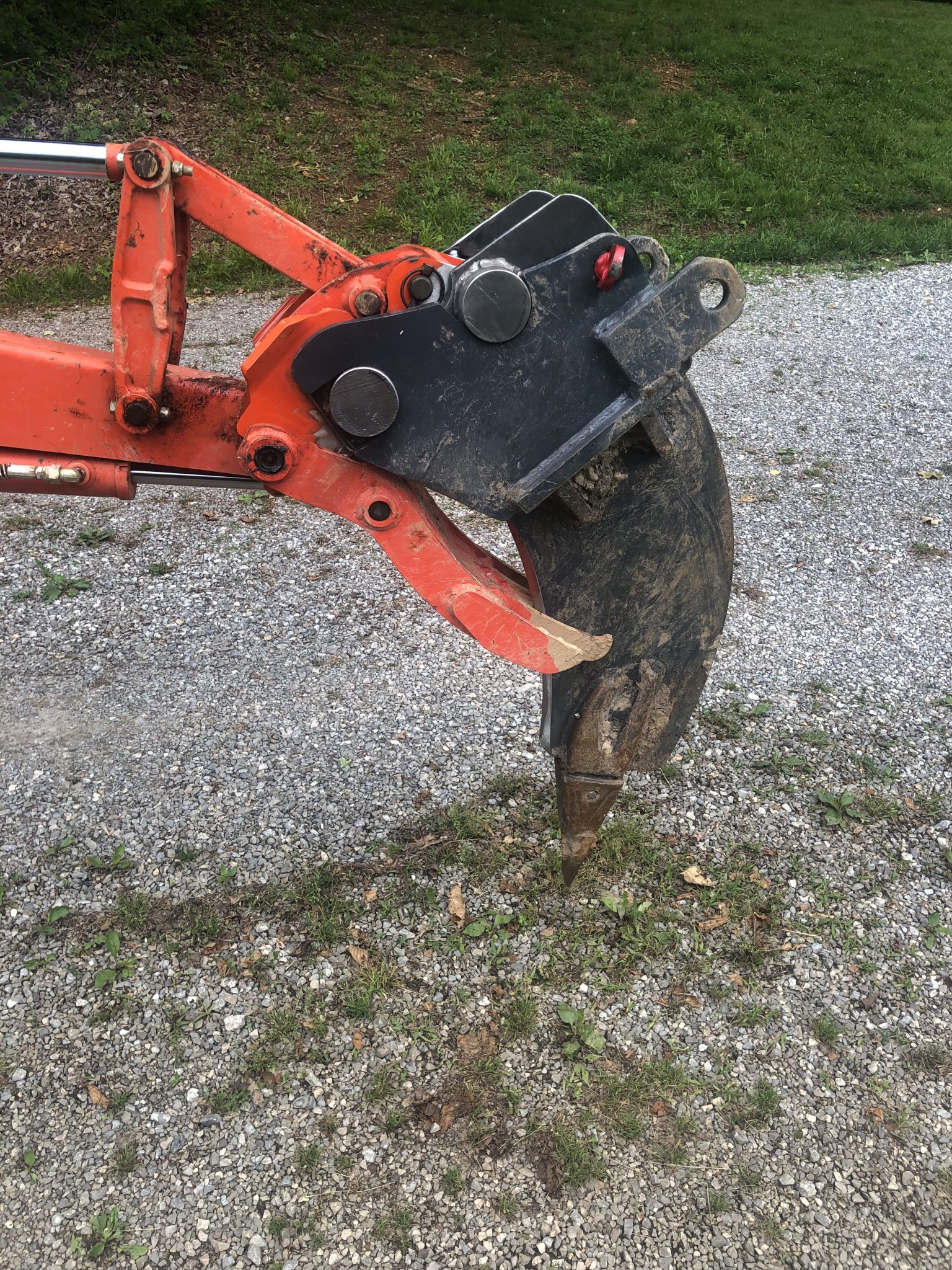

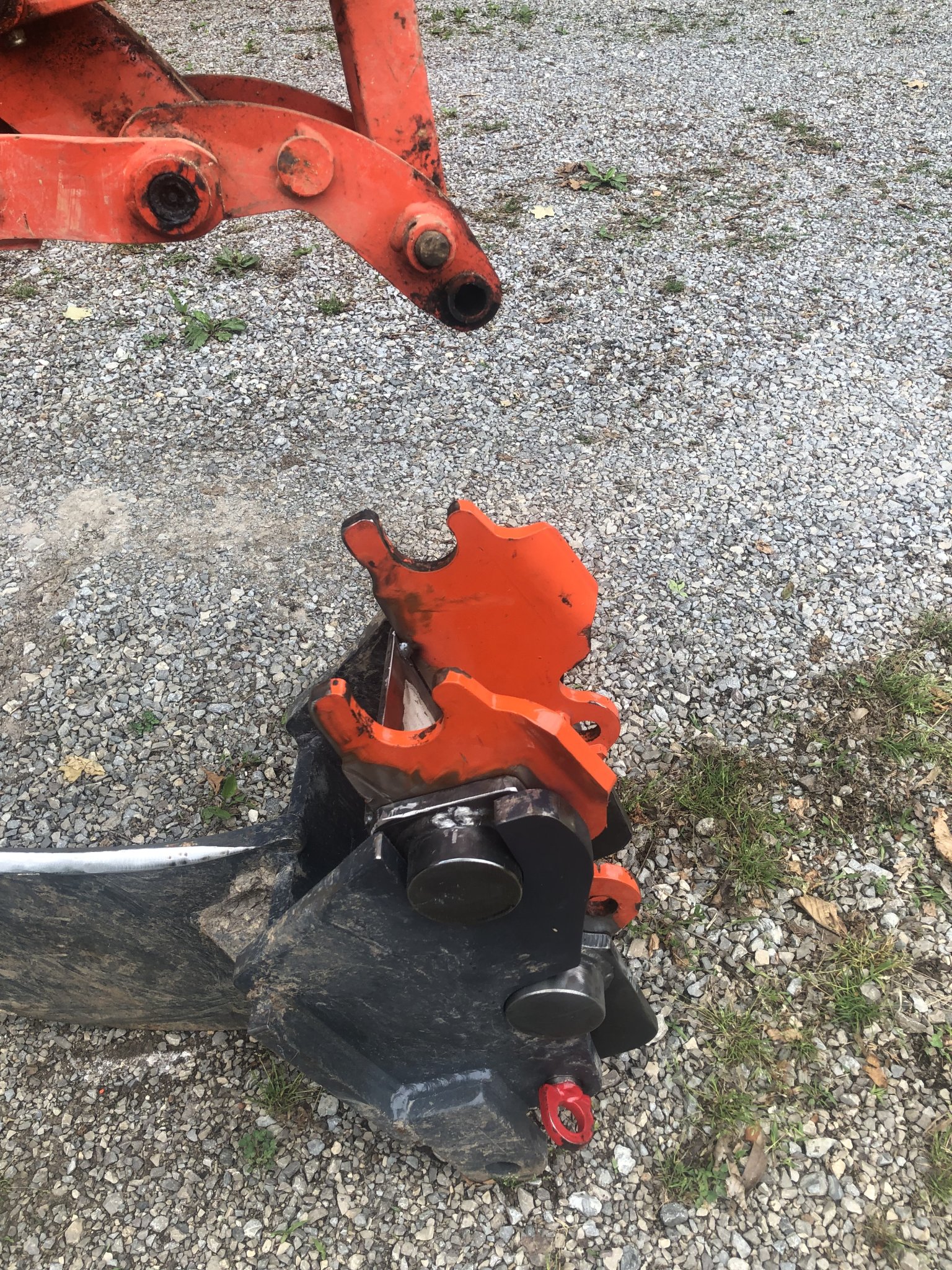

Third attempt at improving the ear placement fit. Much better fit and function. Full articulation of the thumb. The ripper can contact the boom if not careful.

Now to lay in a couple of good welds and test dig. This might just work.

  • Love
  • Like
Reactions: 1 users

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,066
113
Eastham, Ma

Crash277

Well-known member

Equipment
BX23S
Jan 17, 2021
846
622
93
Canada
Great work!! i only have the 12" bucket and ripper for my little BH. I love having the QA, and the ripper makes much faster work of roots. i have the plans to build a trailer hitch and a 16" ditching bucket. hope to get those done this summer.

i love seeing the stuff people make/modify on this page.


Vigo

Well-known member

Equipment
B6100, B8200
Jan 9, 2022
595
340
63
San Antonio Texas
Wow, those last pics look like a million bucks compared to the previous fitment. The way that ripper tucks in there with the arm folded, between the teeth of the thumb and everything, is like it was just meant to be!

NICE work!

  • Like
Reactions: 1 users

Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee

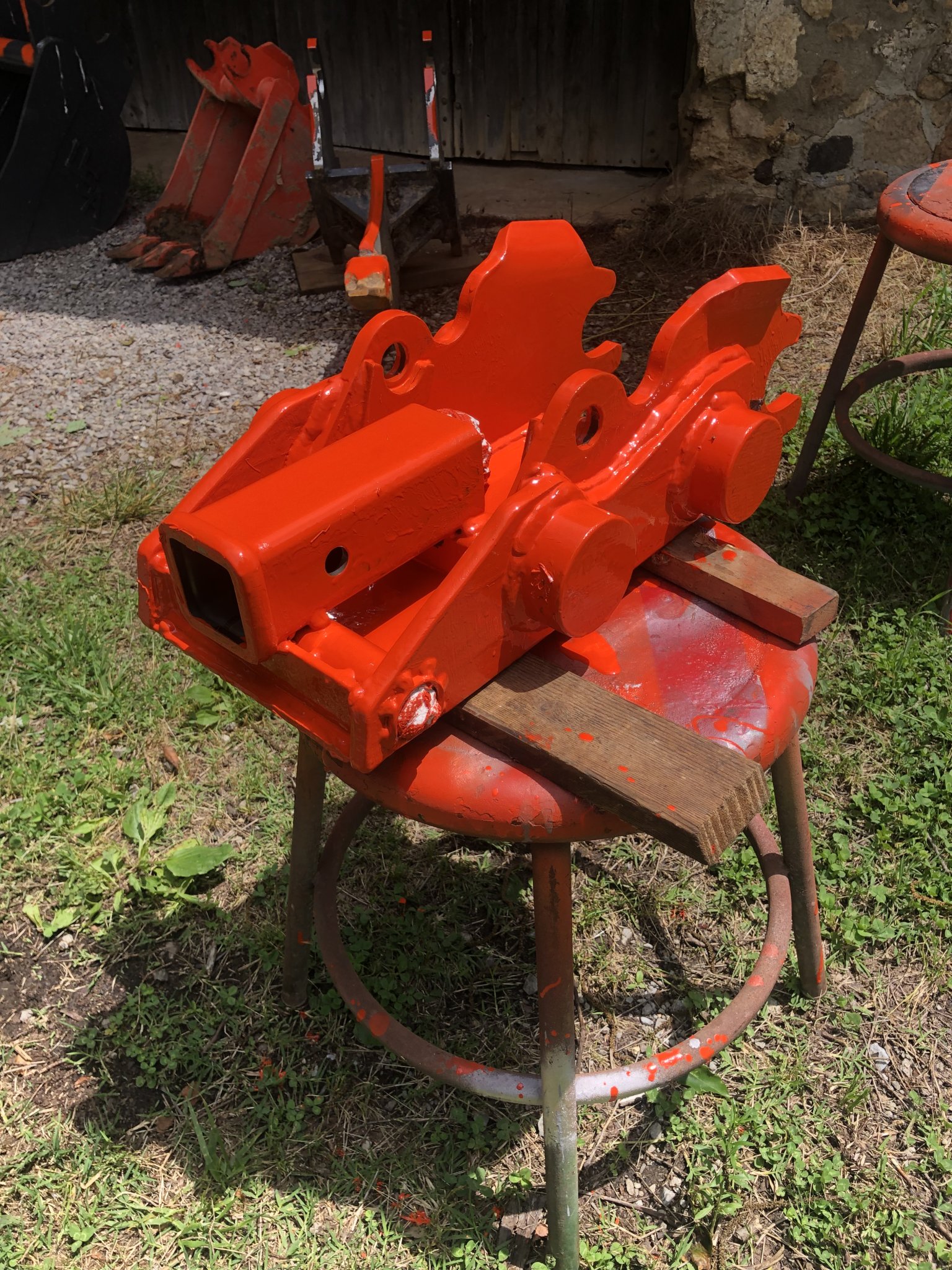

Final adjustments made. Quick attach pins can be installed or removed without tools. Receiver hitch parts fitted. All welded together. Ready to paint.
Could always add a ripper shank to this base if it doesn’t work out.

Have receiver hitches on the FEL buckets for a bale spear to move round bales. Stacking round bales in an old square bale ground level pole barn wasted a lot of space. Using a bale spear on a backhoe maybe could have got more in the barn.

  • Like
Reactions: 1 user

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
2,365
2,685
113
Michigan

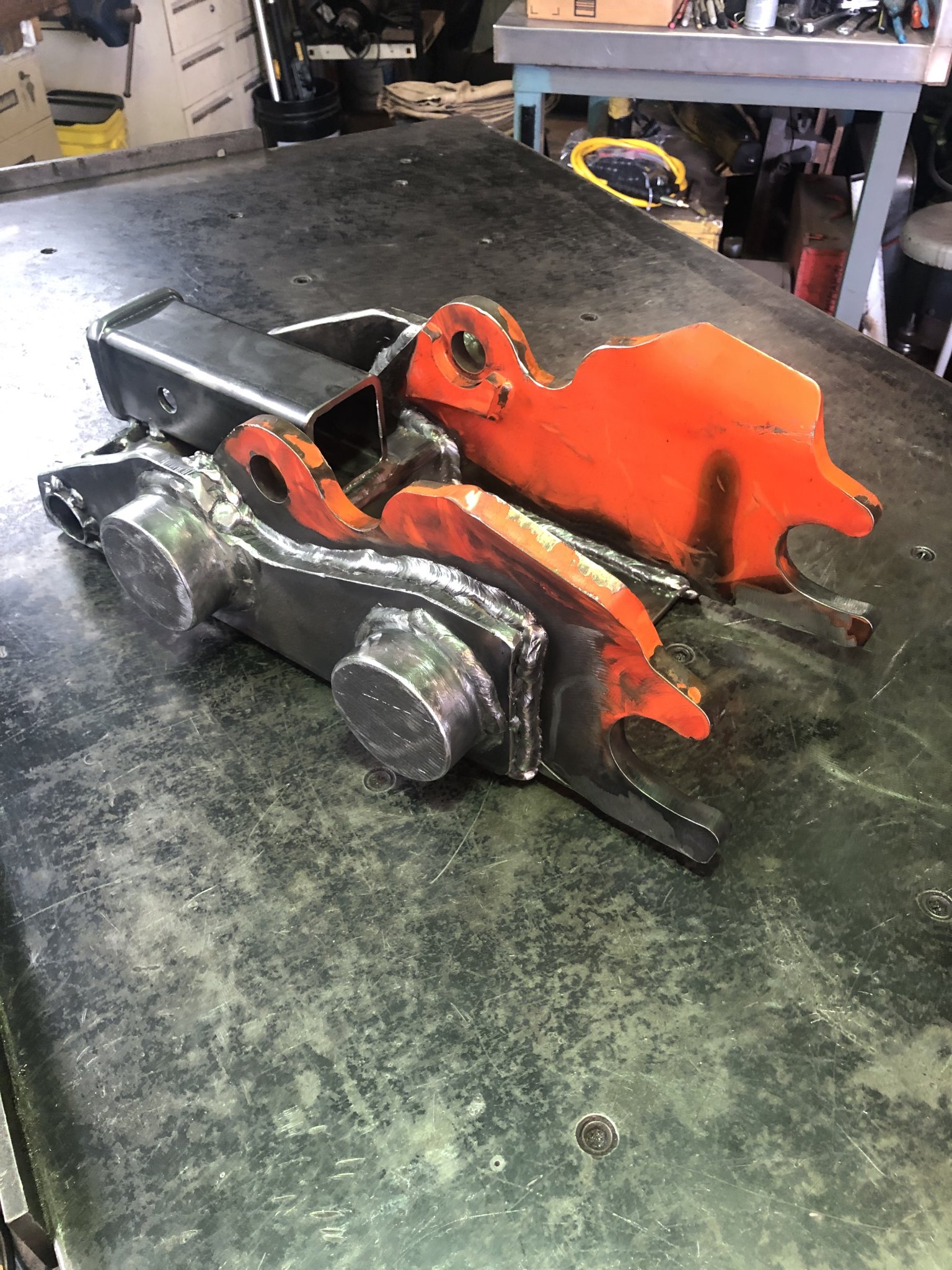

View attachment 102650
Final adjustments made. Quick attach pins can be installed or removed without tools. Receiver hitch parts fitted. All welded together. Ready to paint.
Could always add a ripper shank to this base if it doesn’t work out.

Have receiver hitches on the FEL buckets for a bale spear to move round bales. Stacking round bales in an old square bale ground level pole barn wasted a lot of space. Using a bale spear on a backhoe maybe could have got more in the barn.

Very Nice job man!

Those welds look great!

Sure looks like it fits great too in the other pics.


Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee

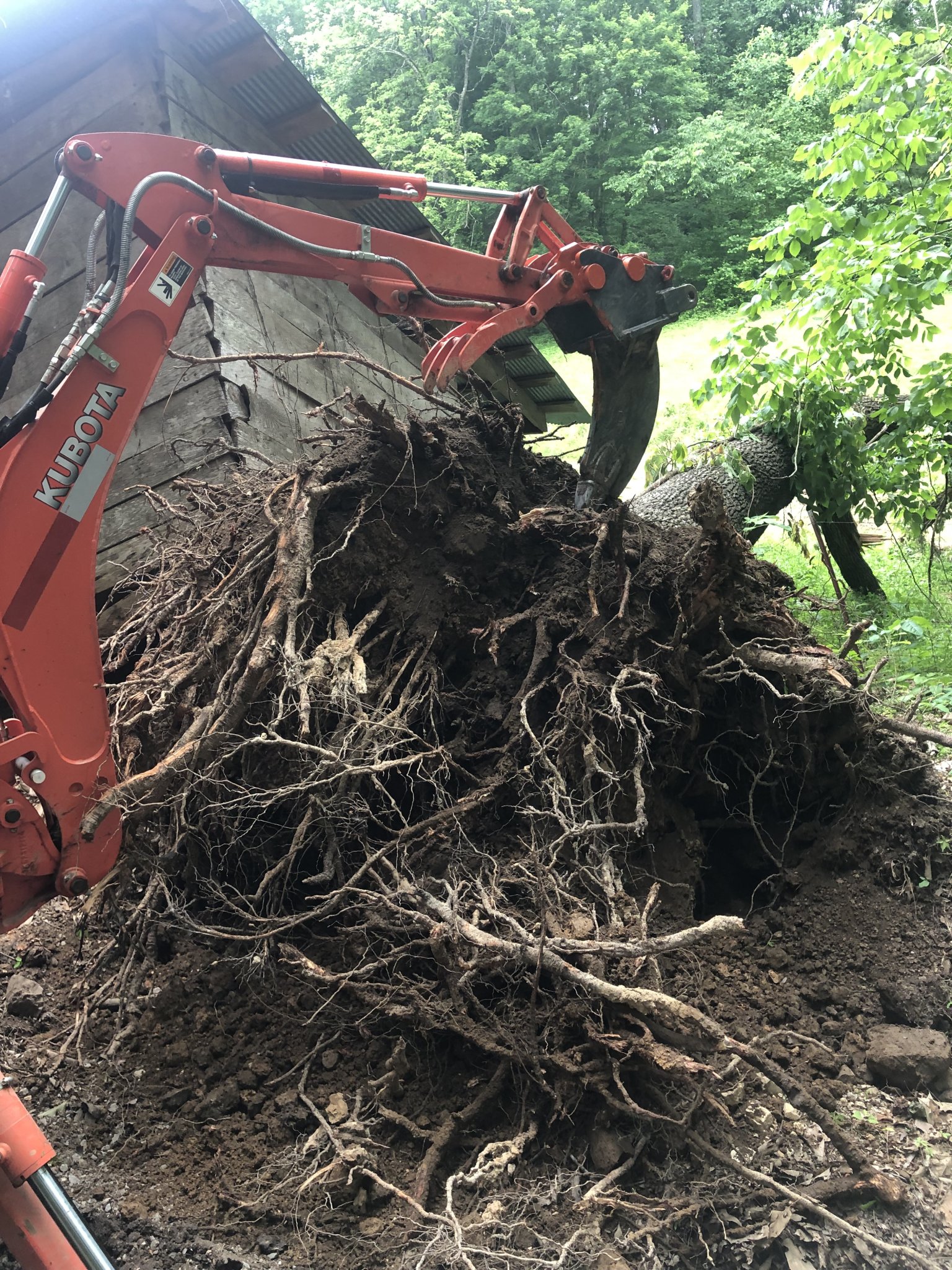

Whittled on a root ball. Good power and strength with the oversized ripper. Good root breaking curl. Ripper 150# + 60# for adapter. Thumb worked great. B26 handles it like a champ. Think this is going to be a success.

Mega size outrigger pads and cylinder guard steps have spoiled me on the M59. No fun if get hurt while climbing. I guess another project…

  • Like
Reactions: 1 user

fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,066
113
Eastham, Ma

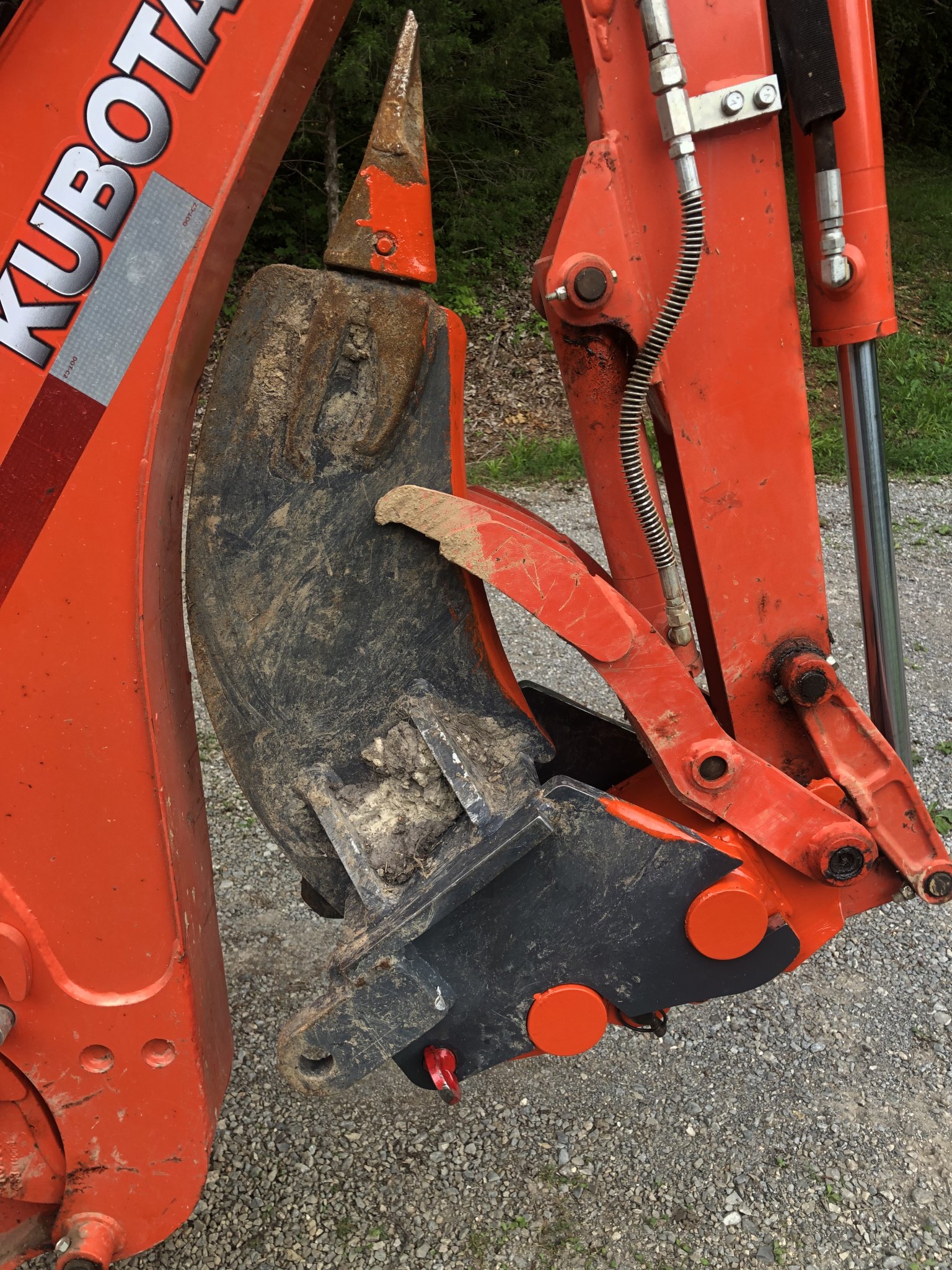

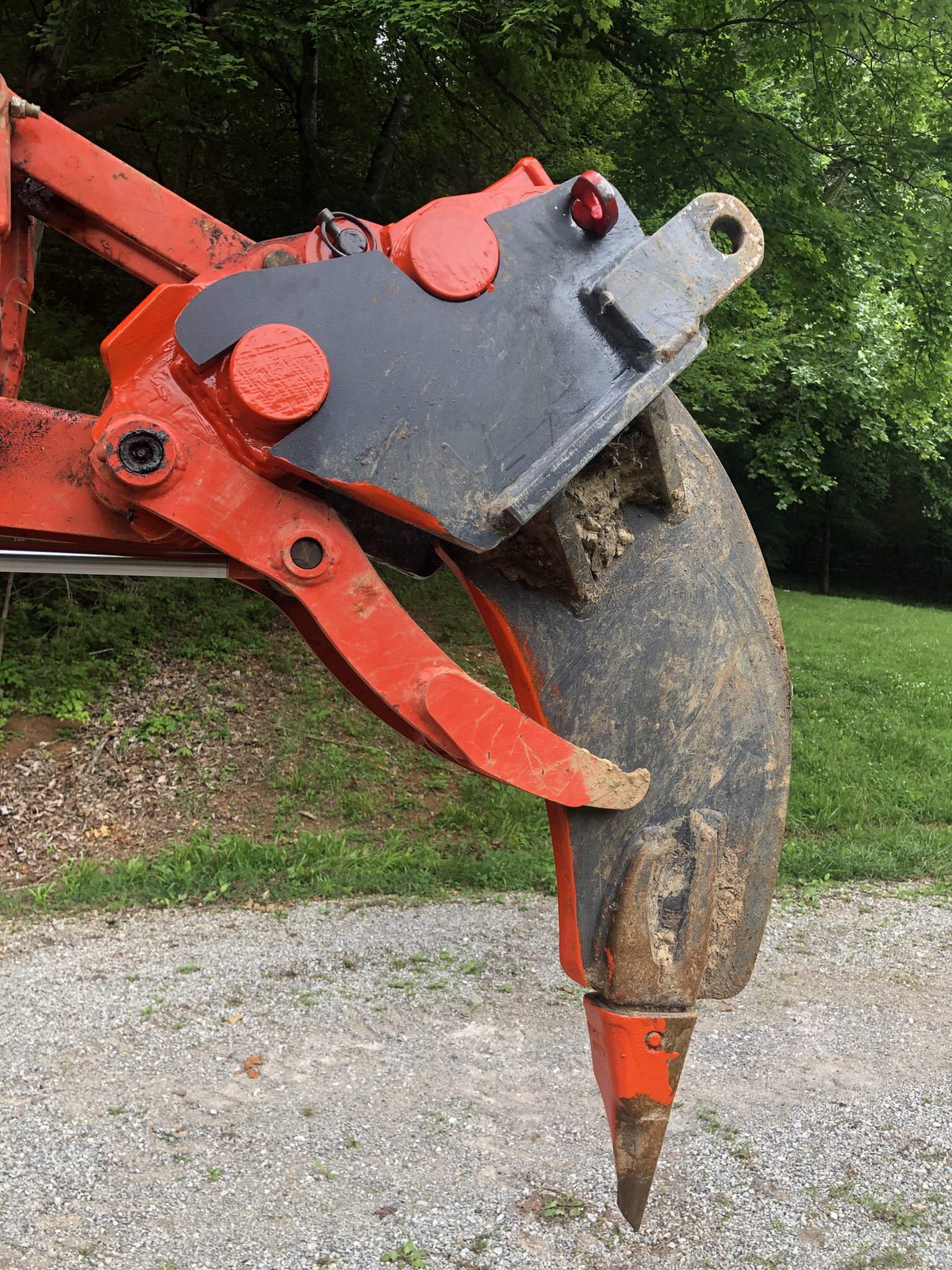

View attachment 102985 View attachment 102986 View attachment 102987
Whittled on a root ball. Good power and strength with the oversized ripper. Good root breaking curl. Ripper 150# + 60# for adapter. Thumb worked great. B26 handles it like a champ. Think this is going to be a success.

Mega size outrigger pads and cylinder guard steps have spoiled me on the M59. No fun if get hurt while climbing. I guess another project…
Installed my "OX Thumbs" 28" ripper today.
I really like it!
Misses boom by 1/2" when fully retracted.
Would post pictures, but cannot figure out how to do that.

Last edited:

Smokeydog

Well-known member

Equipment
M59, B26 grapples, backhoes, tillers, graders, diesel atv
Jun 2, 2020
657
601
93
knoxville, Tennessee
Installed my "OX Thumbs" 28" ripper today.
I really like it!
Misses boom by 1/2" when fully retracted.
Would post pictures, but cannot figure out how to do that.
Great! Sure it will be handy. Glad it can’t hit your boom.


Russell King

Well-known member
Lifetime Member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
5,299
1,353
113
Austin, Texas
Installed my "OX Thumbs" 28" ripper today.
I really like it!
Misses boom by 1/2" when fully retracted.
Would post pictures, but cannot figure out how to do that.
See this thread for more information on how to post photos



fried1765

Well-known member

Equipment
Kubota L48 TLB, Ford 1920 FEL, Ford 8N, SCAG Liberty Z, Gravely Pro.
Nov 14, 2019
7,842
5,066
113
Eastham, Ma
See this thread for more information on how to post photos

Thank you for the try Russell,
I looked at that info, but still can't seem to make anything there work for me.
Just too much hi-tech for this old guy.


#40Fan

Active member
Jul 21, 2022
286
165
43
USA
Can you get the photo from your camera to your computer?

If so, go to www.imgbb.com

Upload photo. Tell it not to delete. After it is done uploading, you'll have a pull down menu to select the format that you'd like to attach the photo. Select BBCode Full Linked. Copy the address and paste it here in your reply.
