Tachometer

[johndeerebones]

Tachometer, quit working. The weird parts is it rests below "zero" now. At least my dad had Kubota's since the early 90s, I've had mine for long enough, worked on equipment too. Can "guess" the RPMs by sound. Annoying though. What's going on? L4200 by the way.



[GeoHorn]

It sounds as if the tach has suffered a mechanical failure.

Messick’s says that tach is discontinued …. You might see if an instrument-repair shop can fix it.

Tachometer Repair and Restoration

D&M Restoration rebuilds and repairs almost any antique, classic or vintage car tachometer to its stock/ original condition, or we can convert a mechanical tachometer to an electric tachometer while keeping the original appearance. We have designed our own circuit boards for upgrading and...

dandmrestoration.com



[TheOldHokie]

Tachometer, quit working. The weird parts is it rests below "zero" now. At least my dad had Kubota's since the early 90s, I've had mine for long enough, worked on equipment too. Can "guess" the RPMs by sound. Annoying though. What's going on? L4200 by the way.

Its a mechanical gauge - I would start by inspecting the drive cable. Broken tachometer/speedometer cables are pretty common.

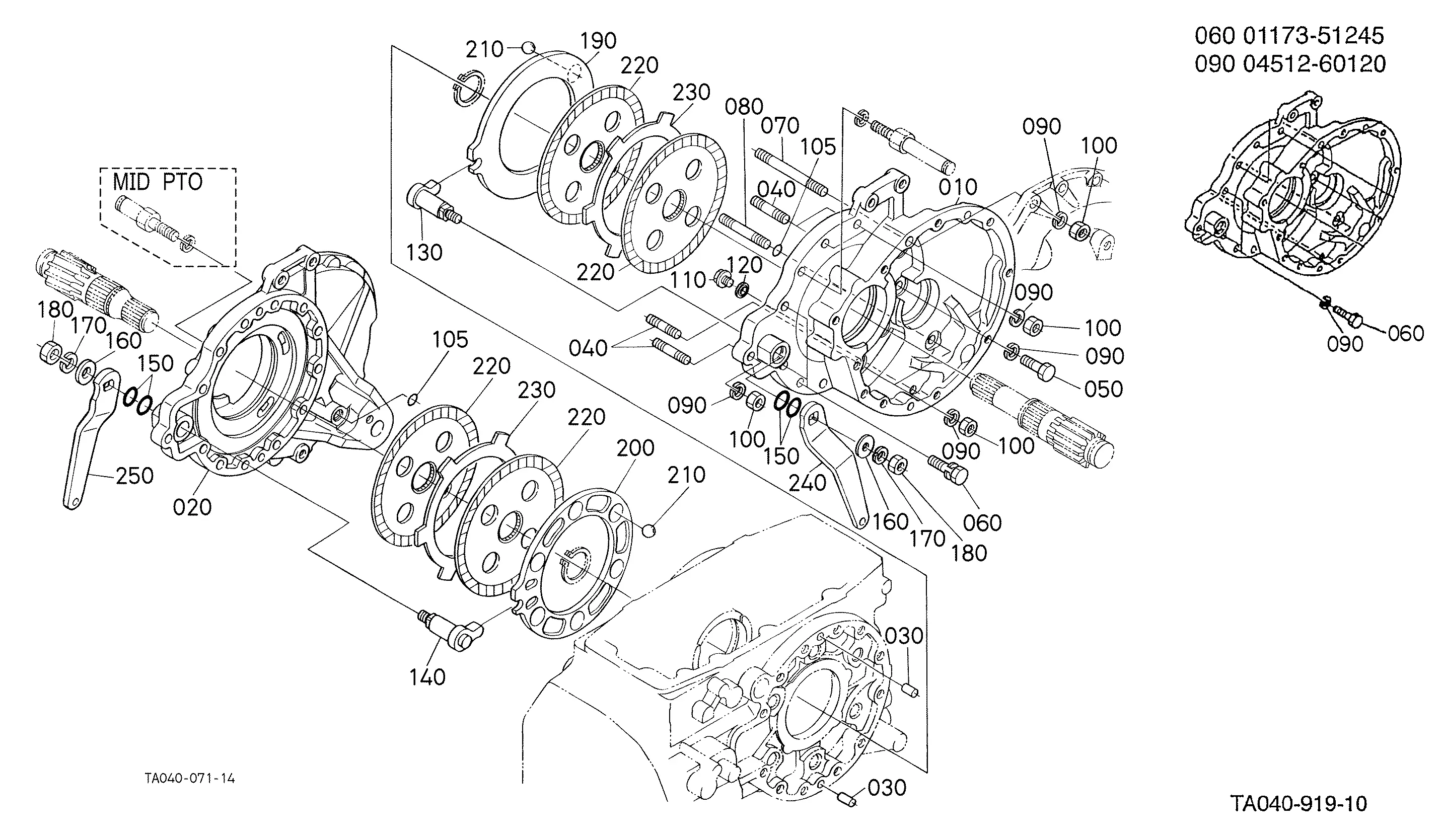

Item number 20 in the parts diagram

Kubota L4200DT (Dual Traction 4wd, Rops) Parts Diagrams

Kubota Parts Catalog Lookup. Buy Kubota Parts Online & Save!

www.messicks.com

Dan



[johndeerebones]

By the way,removed the cluster a opened it. Where the needle seats is cracked. Cable and drives were ok. thinking epoxy needle to shaft. Have JB on hand also. Whichto use?



[GreensvilleJay]

a very small dab of 5 minute epoxy or clear nail polish



[DustyRusty]

You will need something very light to hold the needle to the shaft or the weight will affect the reading. I would use a Cyanoacrylate glue for the repair aka Super Glue. My wife bought me a bottle that you keep in the freezer and took it out to use it. It doesn't freeze, but it keeps the potency of the glue. It is called Max 1 and the website is www.max1.us I have never used a super glue like this before, but it is better than any that I have ever used.



[North Idaho Wolfman]

small drop of Super glue gel so that it doesn't just into the works.
