Sub-Compact Backhoe subframe/mount dimensions

[benneys123]

It attaches to the ROPs at the rear, has a little bracket that attaches to the axle housing, then attaches to the loader mounts at the front.

Not sure if these will help any, this is for a BH77 and the later L series then yours.

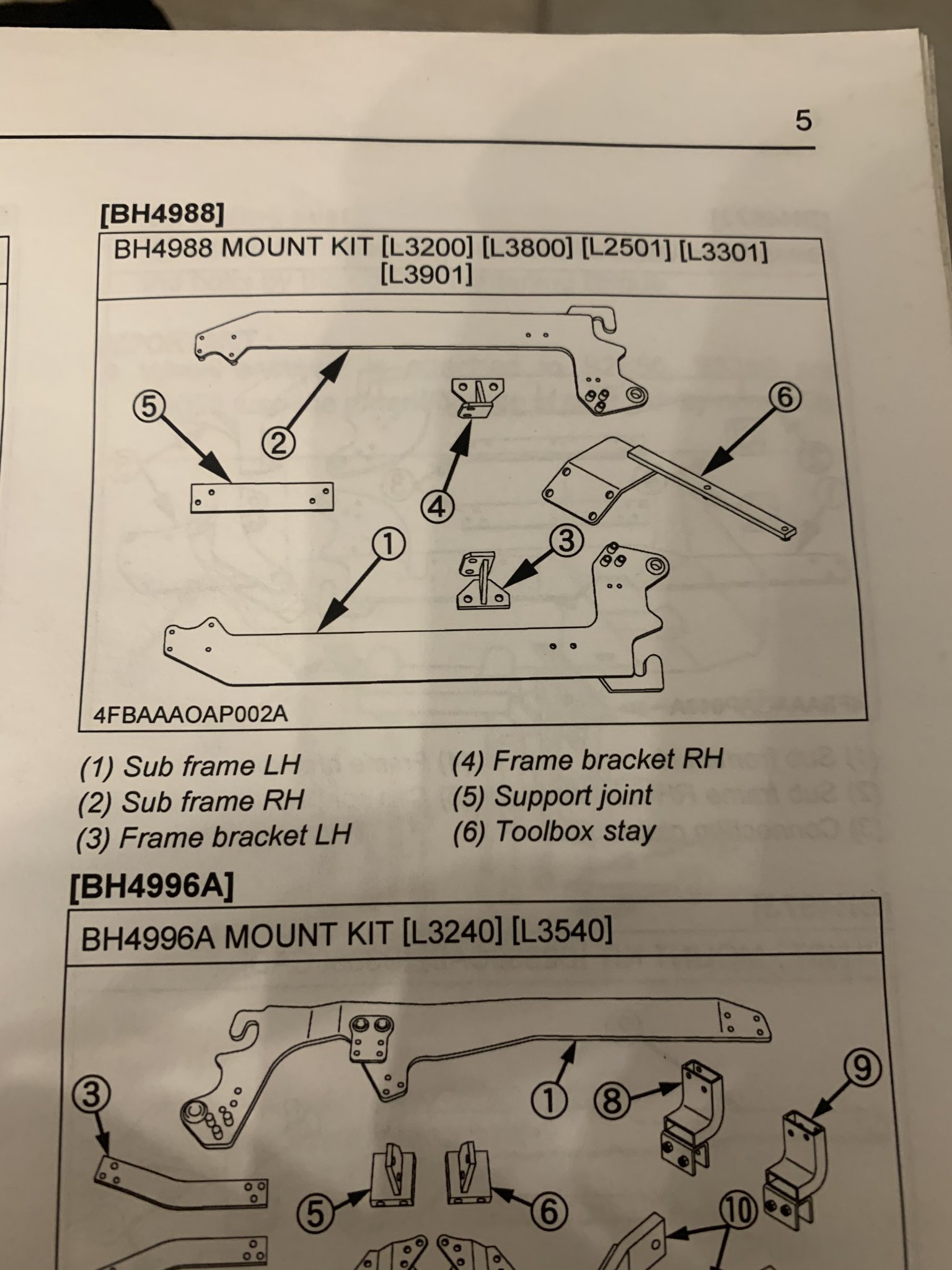

View attachment 62516

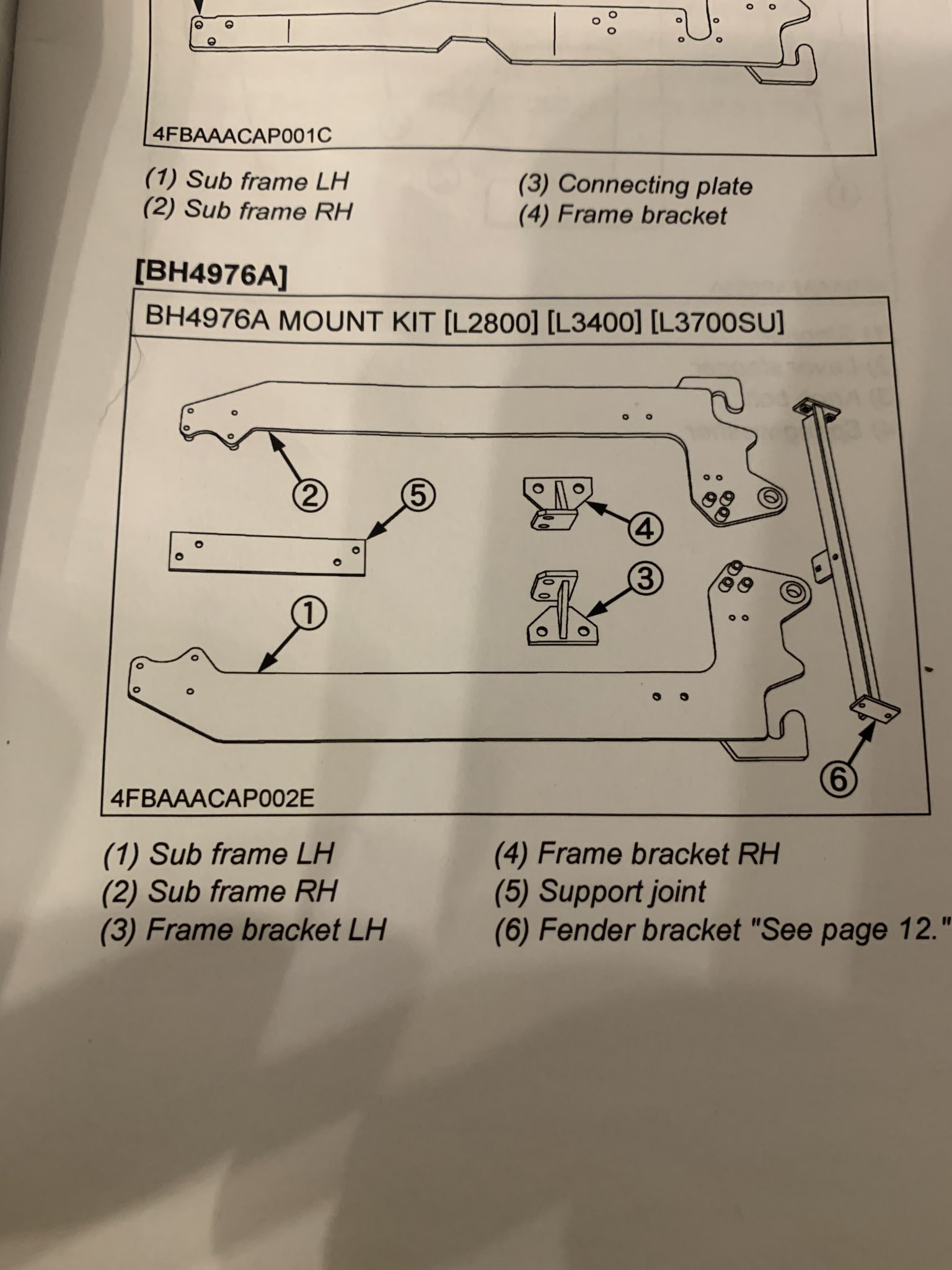

View attachment 62517
Im not sure of the differences between the BH75 and the 77. I recall another thread about this, not sure if it was a BH75 or 76 tho. I will try to find it and post back.

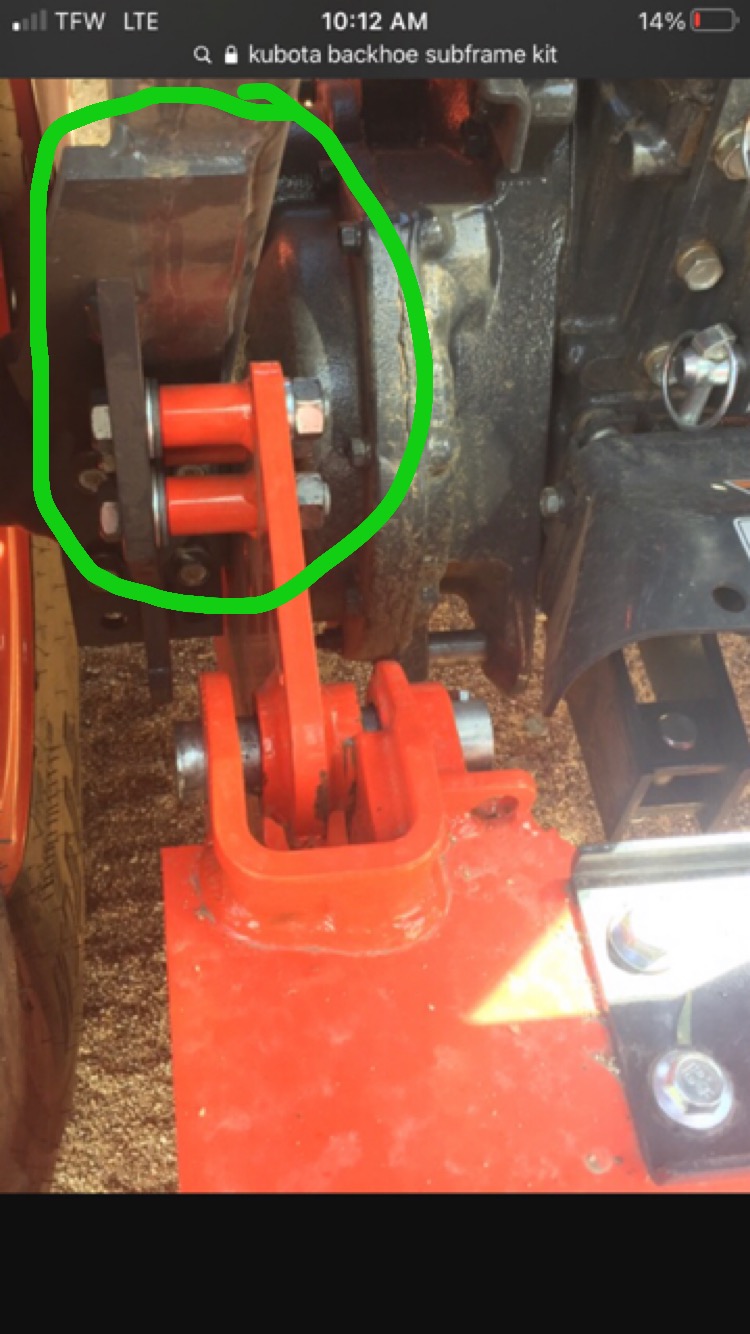

So, I see a lot of things in common between the 75 and 77, the one question I still have is the rear axle bracket, I may not have factory holes like that for a 90’ bracket to bolt to, I know I will be welding a new plate to the angled back of the ROPs, (down low,-above axle sandwich plates, ), was thinking while ROPs is apart, I could revamp bottom side of ROPs “sandwich “ plates to make a angled bracket for the other rear axle tie point. The attached pic is an online pic for a newer L, my L doesn’t have the build to spine plate coming from back of the ROPs, I have to fab both
