Kubota Zero Turn ZD21F

[BrianD]

Hi All,

just recently purchased a ZD21 diesel mower that had a fuel tank missing. I bought a used one off of ebay and it was missing the fuel pickup tube. Does anyone
know what kind of pickup line it uses and is there a screen on the end of it at the bottom of the tank. The dealer couldn't find any parts for the tank other then the fuel gauge sending unit, they can't even get a whole new tank. Also does the fuel return line have a line off the bottom of the fitting that goes into the tank with a check ball on the end of it.

Thanks,



[GreensvilleJay]

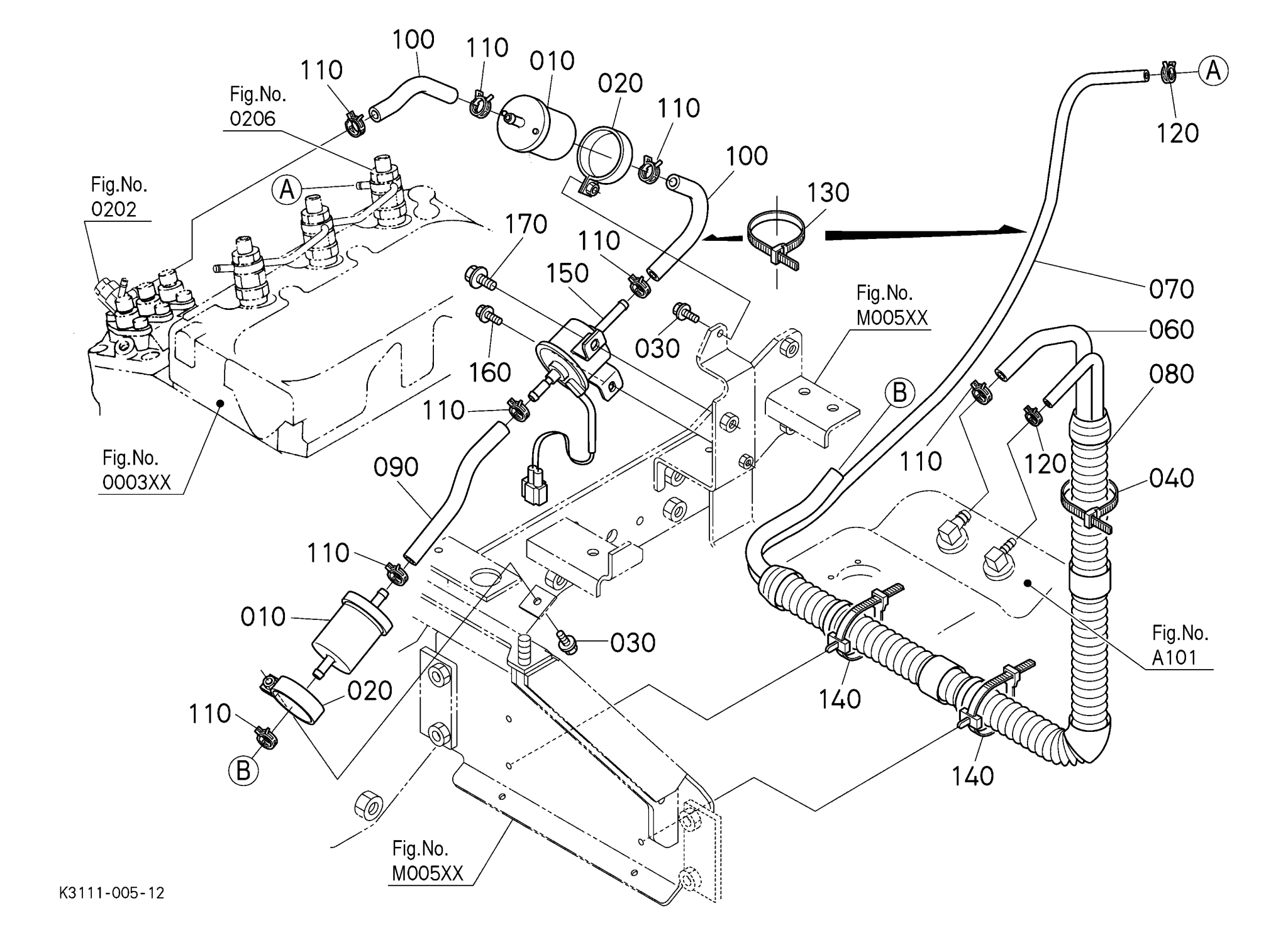

curious I found this at the 'parts finder' website, might be of some help ? I assume #060 is the fuel to engine, the bigger pipe , the return will be the smaller, #070. Do you have those 'right angled' connectors on your tank ?? Would think you only need a 'pickup' tube on the 'fuel to engine' ? Hopefully those that have or work on them will know..



[BrianD]

View attachment 156792
curious I found this at the 'parts finder' website, might be of some help ? I assume #060 is the fuel to engine, the bigger pipe , the return will be the smaller, #070. Do you have those 'right angled' connectors on your tank ?? Would think you only need a 'pickup' tube on the 'fuel to engine' ? Hopefully those that have or work on them will know..



[BrianD]

Hi Greensvillejay,

I saw that too but, it doesn’t show the pickup line that is in the tank , thanks though for the suggestion
