Front Axle oil filling process

[imarobot]

Seems that filling the front axle with gear oil is a several day process. The manual says it takes 9.5 qts but after about 6 qts it starts leaking out the fill hole. Wait a while and it will only take a little more. I check if every few hours after running the tractor and every time I check it, it will take more oil. Does it take that long for the oil to fill the bevel gear cases?

I also noticed that when I remove the filler cap there is air leaking in or out of the filler hose, either a vacuum or pressure in the axle case. There is no vent hose that I can find on the axle. Is this normal?



[D2Cat]

It take time for the oil to get through to the other side. Be patient, keep checking!



[JimDeL]

Is there a vent - or fill plug - on the opposite side? Some have them. If so, loosen/remove that plug/vent ant the axle will fill a lot faster.



[North Idaho Wolfman]

Seems that filling the front axle with gear oil is a several day process. The manual says it takes 9.5 qts but after about 6 qts it starts leaking out the fill hole. Wait a while and it will only take a little more. I check if every few hours after running the tractor and every time I check it, it will take more oil. Does it take that long for the oil to fill the bevel gear cases?

I also noticed that when I remove the filler cap there is air leaking in or out of the filler hose, either a vacuum or pressure in the axle case. There is no vent hose that I can find on the axle. Is this normal?

Care to walk out to the tractor and have pencil and paper in hand and write down the model number, as Kubota never made a 5750HSTC-3.

(Edited bad info removed)



[imarobot]

Oops, never noticed that I had the wrong model #listed in my profile. Is there a way I can correct that? It is a L5740.
However, according to both my owners manual and WSM it is listed as 9.5 qts. the L3240, L3540 & L3940 have a 6.9 qt capacity. No models are listed as 6.3 qts. Is my information incorrect?
Also even after putting over 6 qts in it and rechecking every so often I am still able to add more. Never measured the total amount I put in, but I'd say it's no way 9.5 qts.
I tried to copy what's in my manual to this post, but I don't know how to do that.



[imarobot]

There is no vent cap, but the filler hole is large enough to let air escape out as I add oil.



[imarobot]

May be confused about a lot of things, but I did figure out how to fix the model # of my tractor!



[JasonW]

Keep adding until it’s full. Use the book numbers as a rough estimate.

It might take several days depending on temperature with gear oil. Just don’t forget about it being low.

My M6040 took topping off 4 days with UDT2 to be completely full. Which flows better than gear oil.



[North Idaho Wolfman]

Keep adding until it’s full. Use the book numbers as a rough estimate.

It might take several days depending on temperature with gear oil. Just don’t forget about it being low.

My M6040 took topping off 4 days with UDT2 to be completely full. Which flows better than gear oil.

Your front axle should never be full of fluid!



[whitetiger]

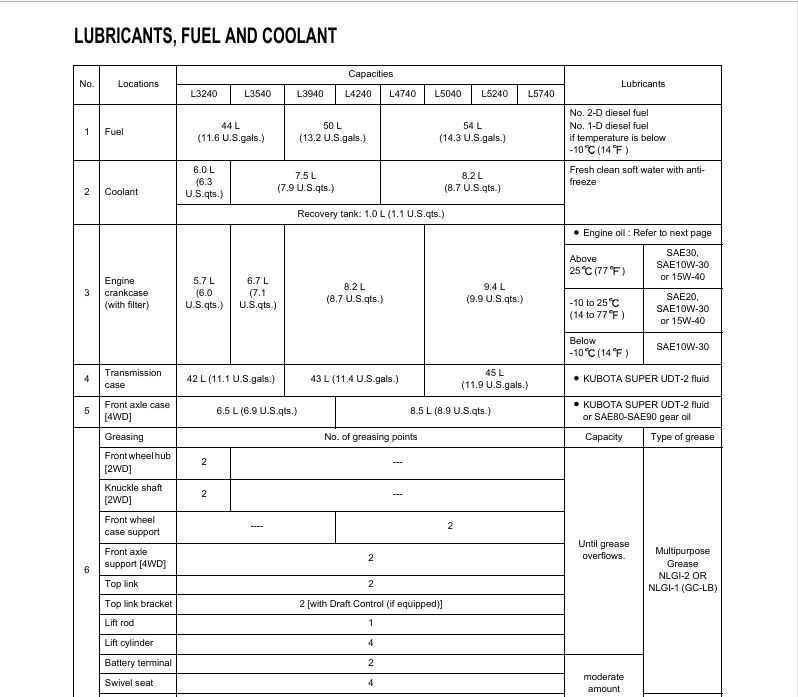

Here is a screenshot of the operator's manual for an L5740HSTC-3 as theOPM always has to most up-to-date information.



[North Idaho Wolfman]

Here is a screenshot of the operator's manual for an L5740HSTC-3 as theOPM always has to most up-to-date information. View attachment 153852

So there is a huge discrepancy between manuals?
Did they change the axles between the L5740 and the L5740-3 and info didn't get transferred to the -3 older manuals?
I hate giving bad info!

Thanks for providing the right answer!

I edited out my bad info!
