B7200D gear lever leaking hydro fluid

[sweyers]

Does anyone know where I can find info regarding the seal at the gear shifter. The boot is damaged but I would assume there must be a seal that is also not sealed.
It’s gear driven not hydrostatic.
I have a repair manual but it only covers the hydrostatic transmission.



[Russell King]

See the illustrated at Kubota USA dot com or Messicks
Here is a link to Messicks
https://www.messicks.com/catalogs/kubota/b7100d-p/speed-change-lever/t03300-main-speed-change-group
and here is the illustration



[TheOldHokie]

Does anyone know where I can find info regarding the seal at the gear shifter. The boot is damaged but I would assume there must be a seal that is also not sealed.
It’s gear driven not hydrostatic.
I have a repair manual but it only covers the hydrostatic transmission.

Its just a boot

Dan



[North Idaho Wolfman]

Go straight to kubota when trying to figure out parts.

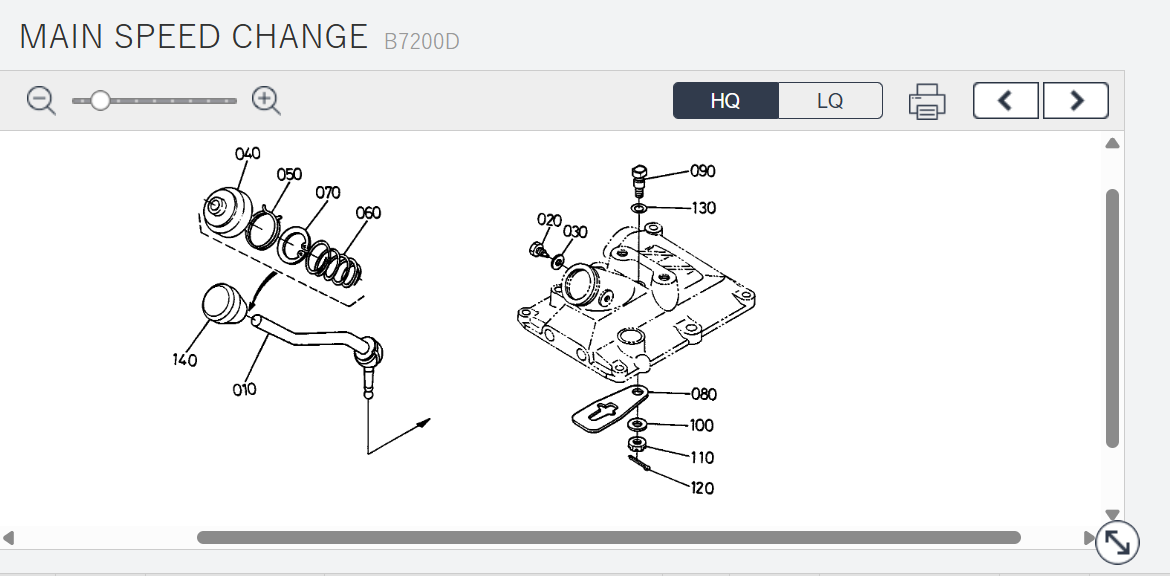

Kubota Tractor Corporation - Illustrated Parts List

- K-PAD - Parts Lists - Illustrated Parts Lists - diagrams

apps.kubotausa.com

Like other have said, no seals just the boot.

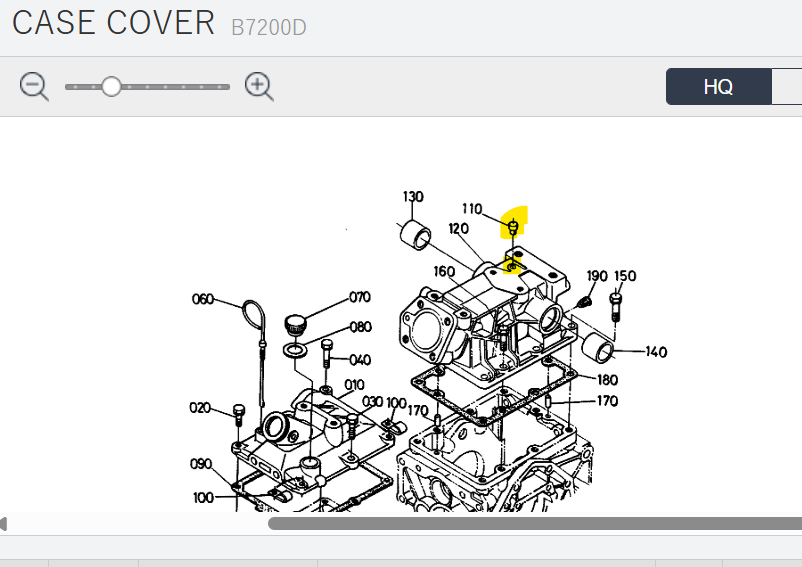

Check the vent under the seat.



[North Idaho Wolfman]

See the illustrated at Kubota USA dot com or Messicks
Here is a link to Messicks
https://www.messicks.com/catalogs/kubota/b7100d-p/speed-change-lever/t03300-main-speed-change-group

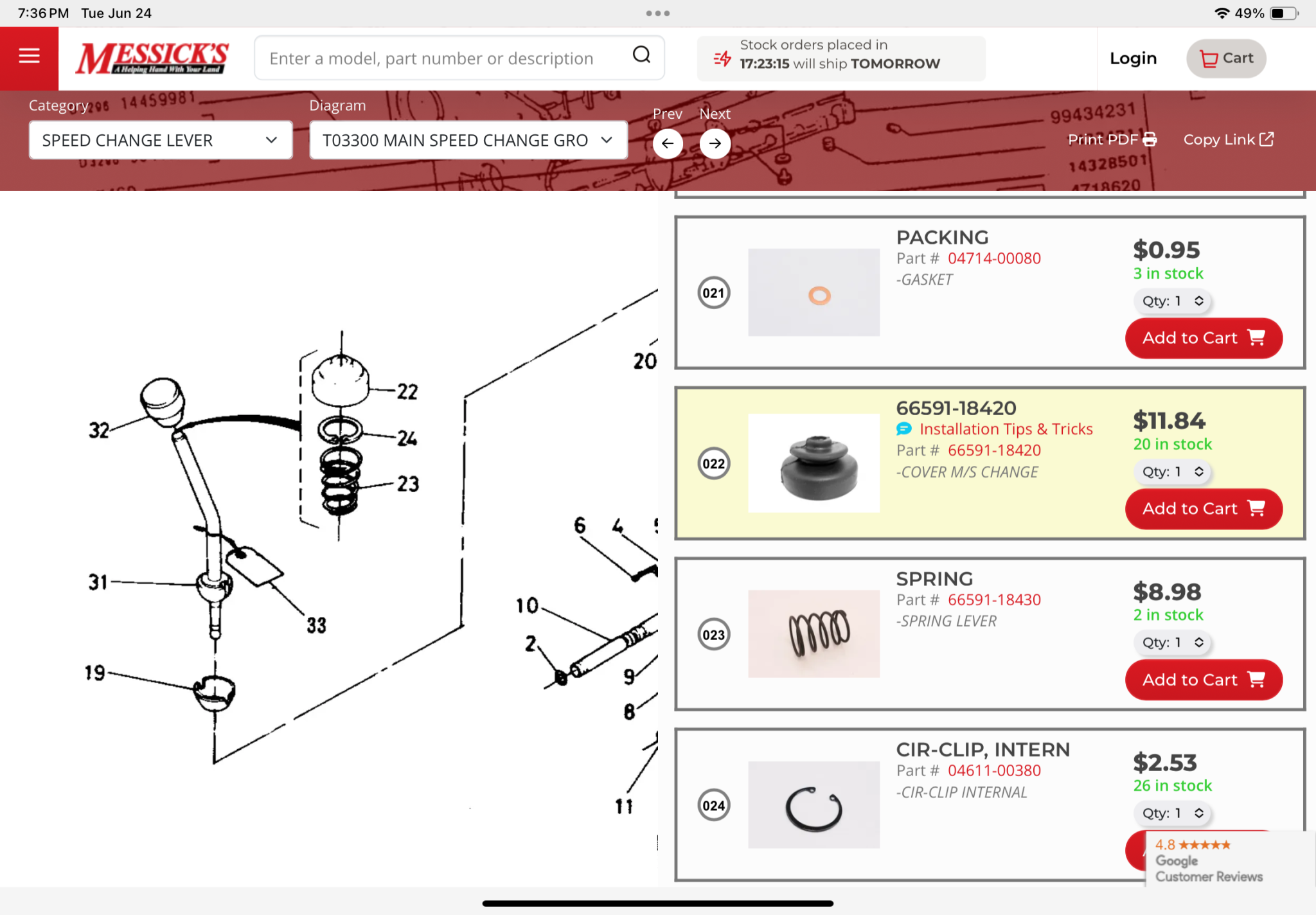

and here is the illustration
View attachment 157284

That's a B7100 print, different than a B7200.



[Russell King]

That's a B7100 print, different than a B7200.

Bad memory for model number!



[sweyers]

Thanks for the assist. That K-Pad is the ticket.
im now checking out the removal of the #66711-42310 GRIP, LEVER

Maybe it’s easy but if anyone’s up for a chat about.



[TheOldHokie]

Thanks for the assist. That K-Pad is the ticket.
im now checking out the removal of the #66711-42310 GRIP, LEVER

Maybe it’s easy but if anyone’s up for a chat about.

I have never removed it but if its a slip fit and not screwed on its probably glued itself to the lever. Wrap something around the knob to protect the plastic and use vice grips to twist it free.

Dan
