Just a as the title says. I'm looking to make this one of my next attachments. Question is 4' or 5' ? Will the 5' be to much to handle? Anyone with experience with this scenario?
B7100 hst 4x4 box blade size?
- Thread starter Morgan44
- Start date
I have a B6100 2wd and I pull a 4ft box, sometimes depending on terrian I struggle a bit if its on a hillside. Other times I'm mostly on level ground and pull the 4ft box just fine and feel like I can pull a bit more. Sometimes I struggle every now and then breaking up hard ground with the teeth down also.
MHO get a good quality heavy built box scrape that will work properly and 4' is all your tractor will handle.
I have a L3000 which is double the hp of a 7100 and a 5 1/2' box is all I can handle when I'm really making it bite in and move material.
I have a L3000 which is double the hp of a 7100 and a 5 1/2' box is all I can handle when I'm really making it bite in and move material.
Lil Foot
Well-known member
Lifetime Member
Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
I have a B7100 with the originally issued 42" Gannon box blade, and based on it's performance, I would not go over 48". Get the heaviest, stoutest box blade you can afford, weight & strength really make a difference here.
Attachments
You guys are breaking my heart. I really wants it to stick out past the wheels some, so I could get closer to things.
Lil Foot
Well-known member
Lifetime Member
Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
Probably depends on your soil & planned uses. Out here the ground is so hard, compacted, & rocky I'm sure I would have trouble with a larger box blade.
But if your soil is soft, sandy, or free from rocks you can probably get away with something larger than 4 ft..... if you are only going to re-grade an existing gravel drive, or drag loose material to level low spots...... see what I mean?
But if your soil is soft, sandy, or free from rocks you can probably get away with something larger than 4 ft..... if you are only going to re-grade an existing gravel drive, or drag loose material to level low spots...... see what I mean?
You might get by dragging a wider box but you will never get the full potential out of it.
Myself I would rather have a 4' that worked as intended than a larger one that I got 50% use because the tractor can't pull it. In the end it's all up to you. I have a strong feeling that your 7100 will handle the 54" box fairly well almost every time you use it. When you really get to digging or have a full load of material there will be times it can't handle the load but for the most part you'll be fine. JMHO
Myself I would rather have a 4' that worked as intended than a larger one that I got 50% use because the tractor can't pull it. In the end it's all up to you. I have a strong feeling that your 7100 will handle the 54" box fairly well almost every time you use it. When you really get to digging or have a full load of material there will be times it can't handle the load but for the most part you'll be fine. JMHO
Like I was saying in my post, sometimes I feel like 4 foot is little and I can pull a bigger box and other times I struggle and fit with it depending on the job. I look at it like this, anything I can do with a 4ft box sure beats the hell out of a shovel and a rake and is faster then I can anything I do by hand.

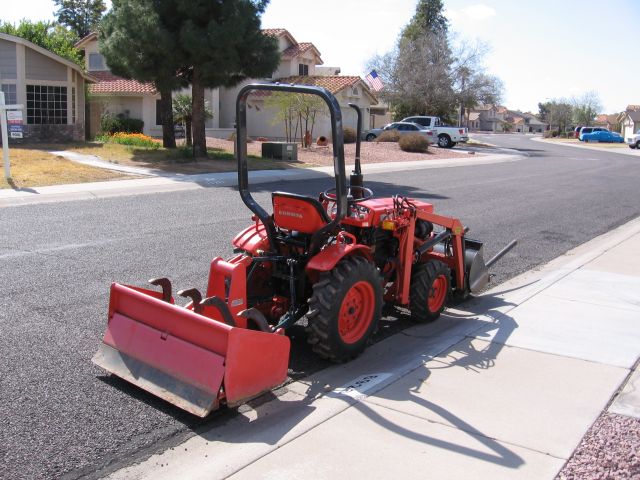

Is that a 4' box? What brand is that? I have turf tires so I think my tires are a little wider than yours, but that looks great. That's just my style, nice and clean.
With turfs you sure ain't pull'n no 5' box anyway.
The box is a store brand of a local dealer.........don't know the name.
