B3350 problems

[Portage]

I am looking for a wiring diagram for my b3350. Trying to find where the can high and can low wires are.Please help Thanks



[Dave_eng]

I am looking for a wiring diagram for my b3350. Trying to find where the can high and can low wires are.Please help Thanks

More details about your tractor would help as there is more than one B3350.
My material is for the HSD. There is also a SU model with its own wiring.
I have provided the wiring diagram but you will find if you are more specific about any issue you are trying to resolve, the WSM often breaks down the wiring into much smaller sections intended for troubleshooting.

Edit:
attaching two pages from WSM
Dave



[Portage]

I have a 2014 b3350HSD



[North Idaho Wolfman]

I am looking for a wiring diagram for my b3350. Trying to find where the can high and can low wires are.Please help Thanks

What are you tying to do?



[sheepfarmer]

I have a 2014 b3350HSD

The wsm and owner's manual for the b2650 and b3350 are lumped together, so the pages dave sent you should be helpful.



[Portage]

More details about your tractor would help as there is more than one B3350.
My material is for the HSD. There is also a SU model with its own wiring.
I have provided the wiring diagram but you will find if you are more specific about any issue you are trying to resolve, the WSM often breaks down the wiring into much smaller sections intended for troubleshooting.

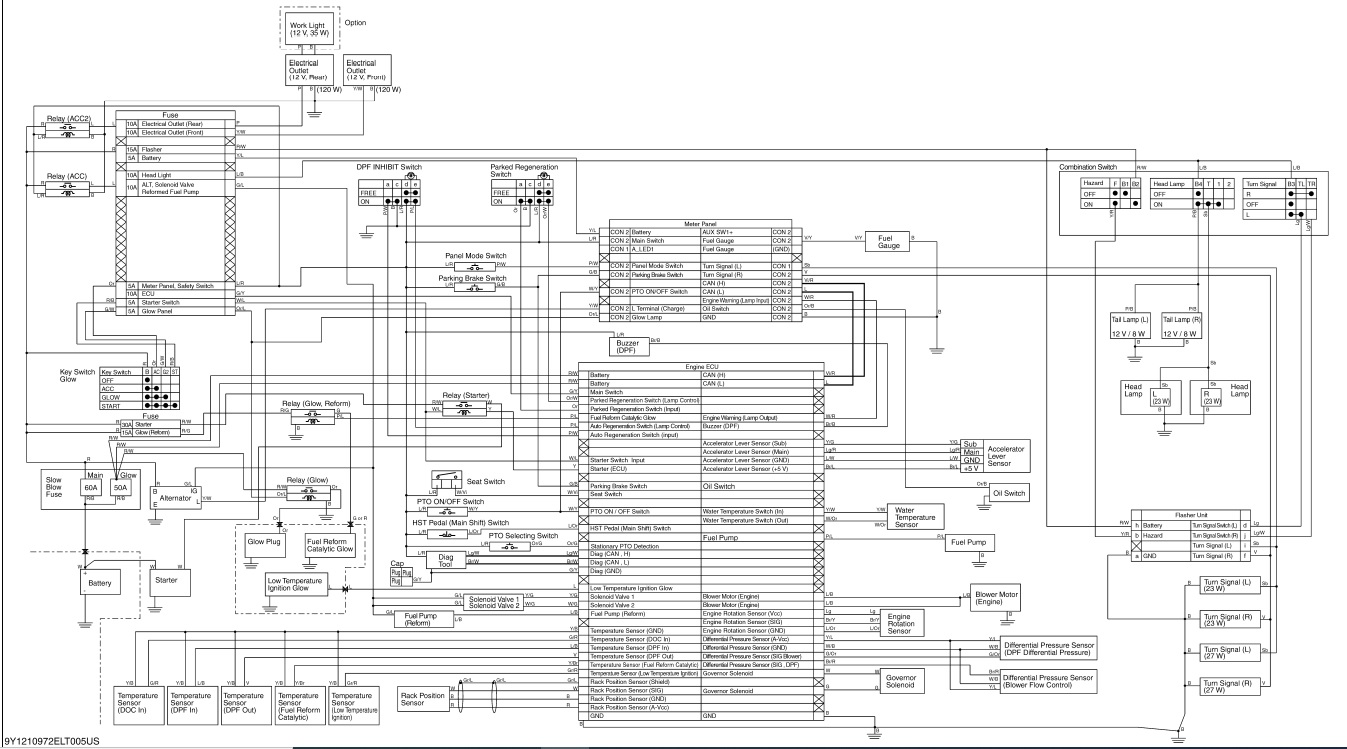

View attachment 72404
Edit:
attaching two pages from WSM
Dave

I have a 2014 kubota b3350 HSD. Is that the same wire diagram?



[Portage]

The wsm and owner's manual for the b2650 and b3350 are lumped together, so the pages dave sent you should be helpful.

Great thanks



[Portage]

What are you tying to do?

I need locate these wires to splice into them.



[Portage]

More details about your tractor would help as there is more than one B3350.
My material is for the HSD. There is also a SU model with its own wiring.
I have provided the wiring diagram but you will find if you are more specific about any issue you are trying to resolve, the WSM often breaks down the wiring into much smaller sections intended for troubleshooting.
View attachment 72404
Edit:
attaching two pages from WSM
Dave



[Portage]

The can high and can low wires have a WR and L,what does that mean?



[Fordtech86]

The can high and can low wires have a WR and L,what does that mean?

wire color



[Portage]

wire color

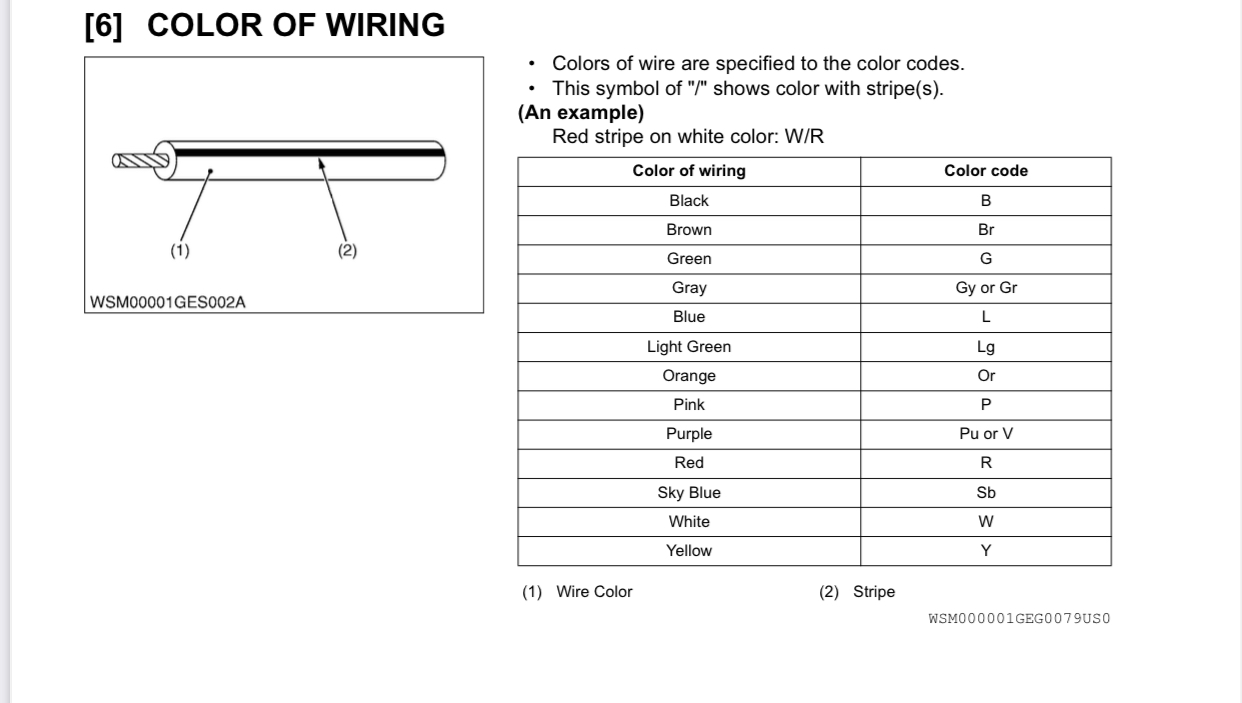

View attachment 72514

I was sure it was colors but that L had me guessing.



[North Idaho Wolfman]

I need locate these wires to splice into them.

I was really looking for more of an answer as to what end or what purpose do you need to mess with those wires?
Just curious what your trying to accomplish or fix?



[Portage]

I am working on a emissions problem



[Portage]

Where would I find the diagnostic tool socket on my tractor?



[Portage]

The diagnostic socket on a b3350 is where? And what does it look like? Anyone know?



[whitetiger]

The diagnostic socket on a b3350 is where? And what does it look like? Anyone know?

The location would depend on the model of your tractor.



[rancher1524]

The emissions are guaranteed for the life of the tractor. Take it to the dealer. Kubota has already spent over $5000.00 in parts not including labor on my B3350SU in the last few months.



[whitetiger]

The emissions are guaranteed for the life of the tractor. Take it to the dealer. Kubota has already spent over $5000.00 in parts not including labor on my B3350SU in the last few months.

I have a feeling he is trying to defeat the Reformer system as his answers are very evasive.



[rancher1524]

Probably end up with a tractor that will not start or worse.
