m4050 VOLTAGE REGULATOR WIRING

[Whitetail Hunter]

I am having and issue trying to find out what the dark blue wire coming out of my regulator should be going to. All the wiring diagrams I can find do not show a dark blue wire.



[North Idaho Wolfman]

I am having and issue trying to find out what the dark blue wire coming out of my regulator should be going to. All the wiring diagrams I can find do not show a dark blue wire.

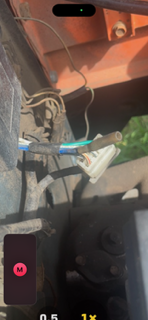

Take a picture of what your looking at.
You should not have a dark blue wire going to the regulator.



[Whitetail Hunter]

Ok I will when I get home later tonight. Also FYI I have the OEM service manual, and on the schematic, it doesn't show a blue wire going to it.



[Whitetail Hunter]

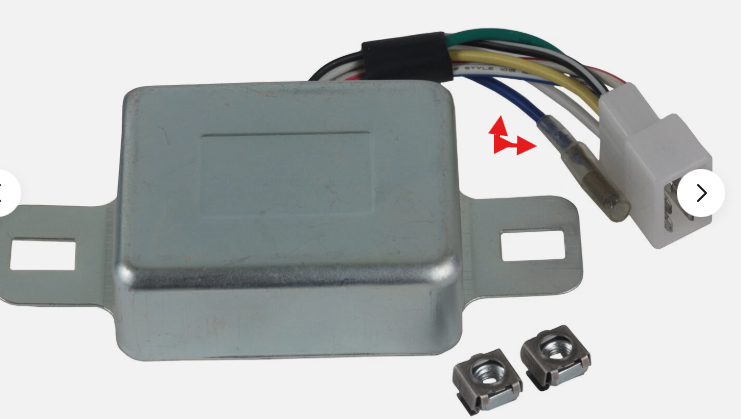

Here is a screen shot of a new one



[GreensvilleJay]

please post the part number of what you bought, i'm curious....



[North Idaho Wolfman]

I don't see black....
I'm wondering if that is ground.
Can you match the pinouts of the original OEM regulator.
