Does anyone have a diagram showing the oder and layout for the hard lines on a 1153. They were all corroded and replacing. I thought I had a good plan for keeping it all organized and marked. Unfortunately the ones I got from Kubota are not exactly thr same bend. Close but a little off. Having a hard time getting it all tucked in and I think I have it laid out incorrectly. Not worried about the hoses inhave those all marked. But somewhere I have made a install order error
La1153 hard hydraulic line replacement
- Thread starter cjd7514
- Start date
Russell King
Well-known member
Lifetime Member
Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Look at the illustrated parts list at Kubota USA dot com.
or at Messicks website they also have the illustration of parts
or at Messicks website they also have the illustration of parts
The information for a loader may be in the loader manual. Should show details of lines.

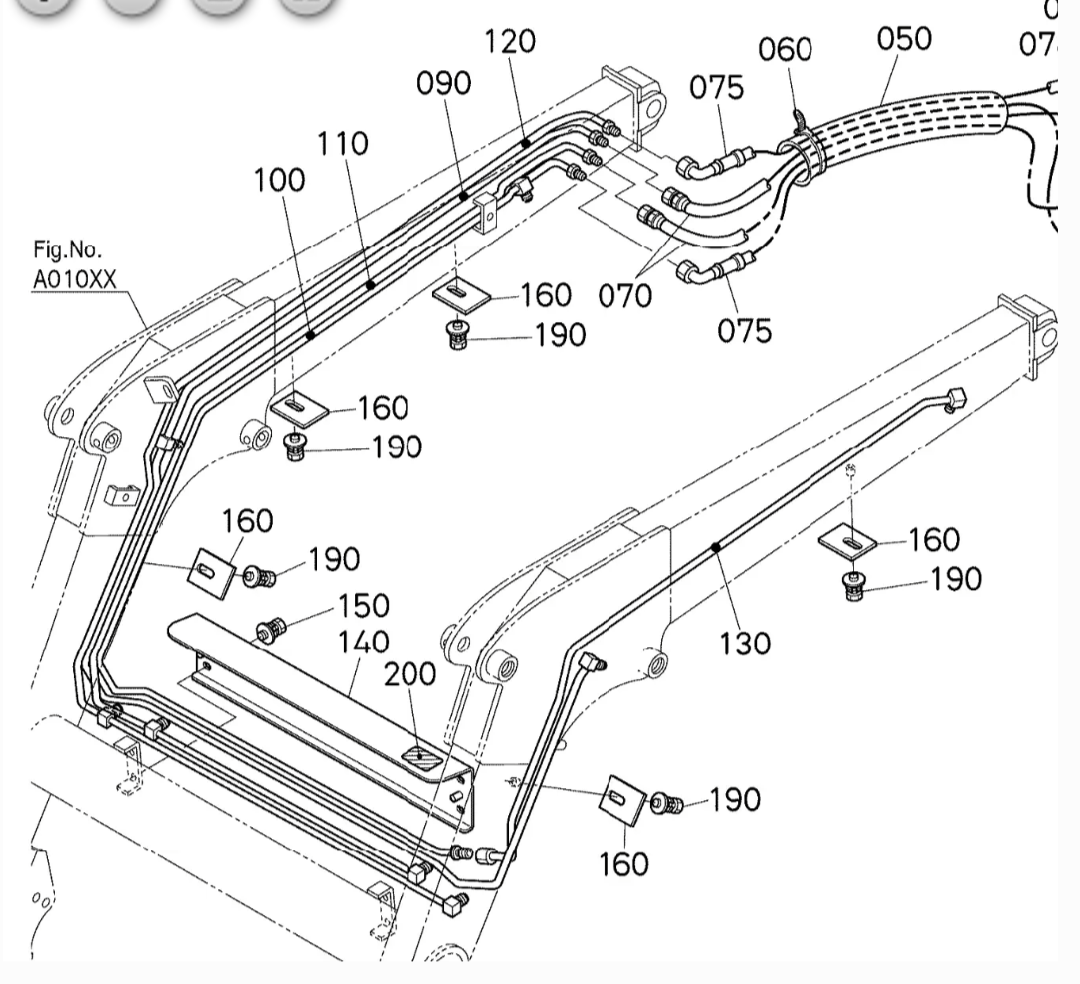

The WSM is no help, here's the diagram
I had a similar problem when I replaced the lines on my TL720. One of the replacements was bent wrong, so I had to reuse an old one. Fortunately, it was the least damaged one.
I had a similar problem when I replaced the lines on my TL720. One of the replacements was bent wrong, so I had to reuse an old one. Fortunately, it was the least damaged one.
