L3561 Finish Mower belt diagram

[Grouse44721]

Hi! Have a L3561 3 pt. Finish Mower. Lost the belt....and was looking for a belt diagram so I can install replacement. Any know where one is located on internet.... or does one one have the manual and could send a pdf?
Thanks in advance!



[GeoHorn]

Messicks has both belts: PN 70080-01411 for the drive belt and PN 70080-01451 for the deck belt. Don’t see a routing on the page tho’



[Dave_eng]

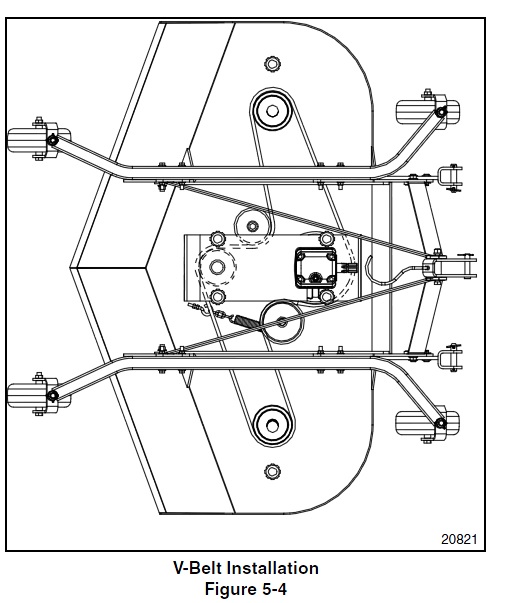

I will give you what I believe is the belt routing.

For the future (and also if you find my info wrong), remember these rear finishing mowers, painted orange, are made by Landpride which is now owned by Kubota

On the Kubota Canada web site they list 3 mowers. Models FDR 1648, 1660, & 1672.

All three have the same belt routing.

If you go on the Landpride web site you will recognize your mower and find the manual for it.

If you now have a new belt ( for measurement purposes) and want to learn how to buy high quality but much cheaper belts please ask.

Landpride.com

There is a second heavier series of mowers made by Landpride and I have included the belt routing also

Dave
