L3302 REAR REMOTE

[midironman]

Rear Remote

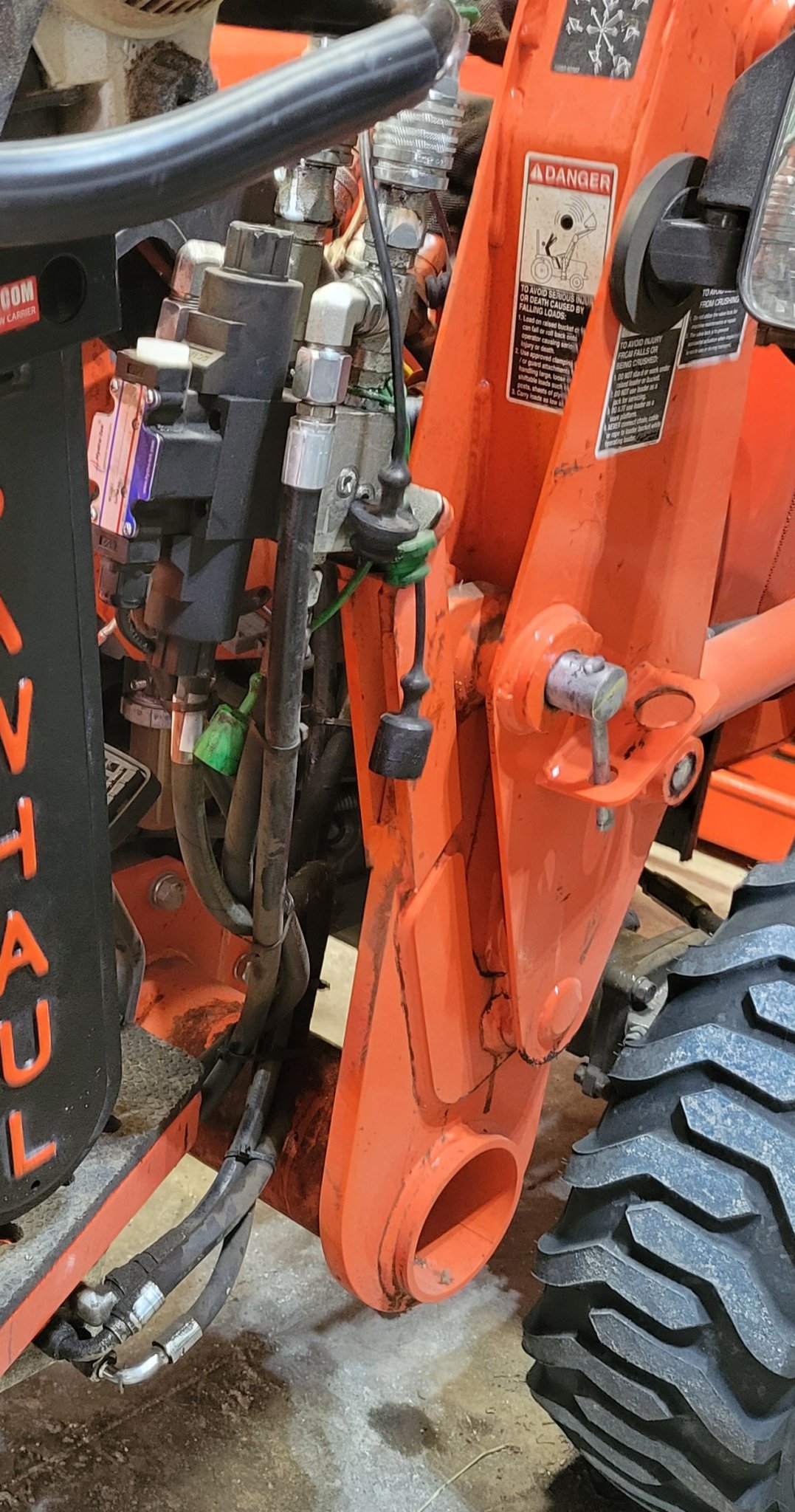

I have a L3302 with Land Pride 3rd Function. Does anyone make a rear remote kit that includes just a bracket, and hoses with connectors and quick disconnects that would connect directly to my 3rd function valve? I just want to have it available when needed for a hydraulic top link etc. I would just disconnect the 3rd function hoses from the valve that run up the FEL for my grapple and then connect the rear remote hoses to the valve. My plan is to switch between the two. Not ideal I know, but I think it would work in a pinch.



[Russell King]

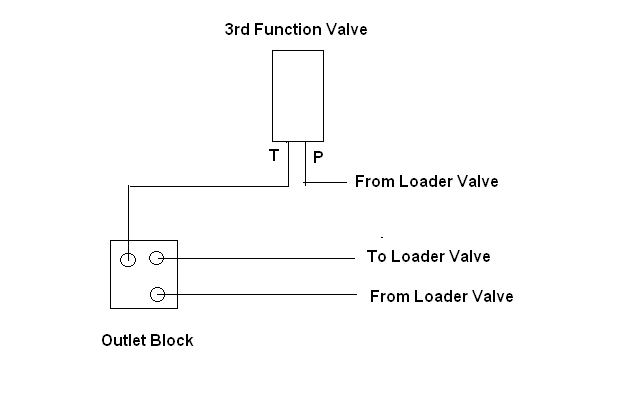

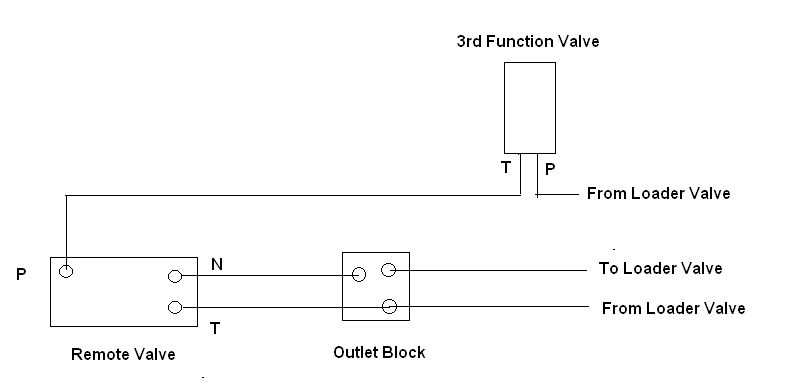

Why use the third function valve? Why not come off the FEL valve power beyond port to hook up the rear remotes? You might have to make the third function become first before the FEL valve (if I recall how they hook up correctly).



[old and tired]

1. Can you precisely feather your grapple close and open with your 3rd function? - If you can (since you need to do that for a toplink), just buy a 1/4" hydraulic hose to run it to the rear.​
