L275DT - Missing starter brake spring in end cap

timsch

Member
Lifetime Member

Equipment
'49 8N, L275DT
Jun 11, 2018
124
23
18
Houston, TX

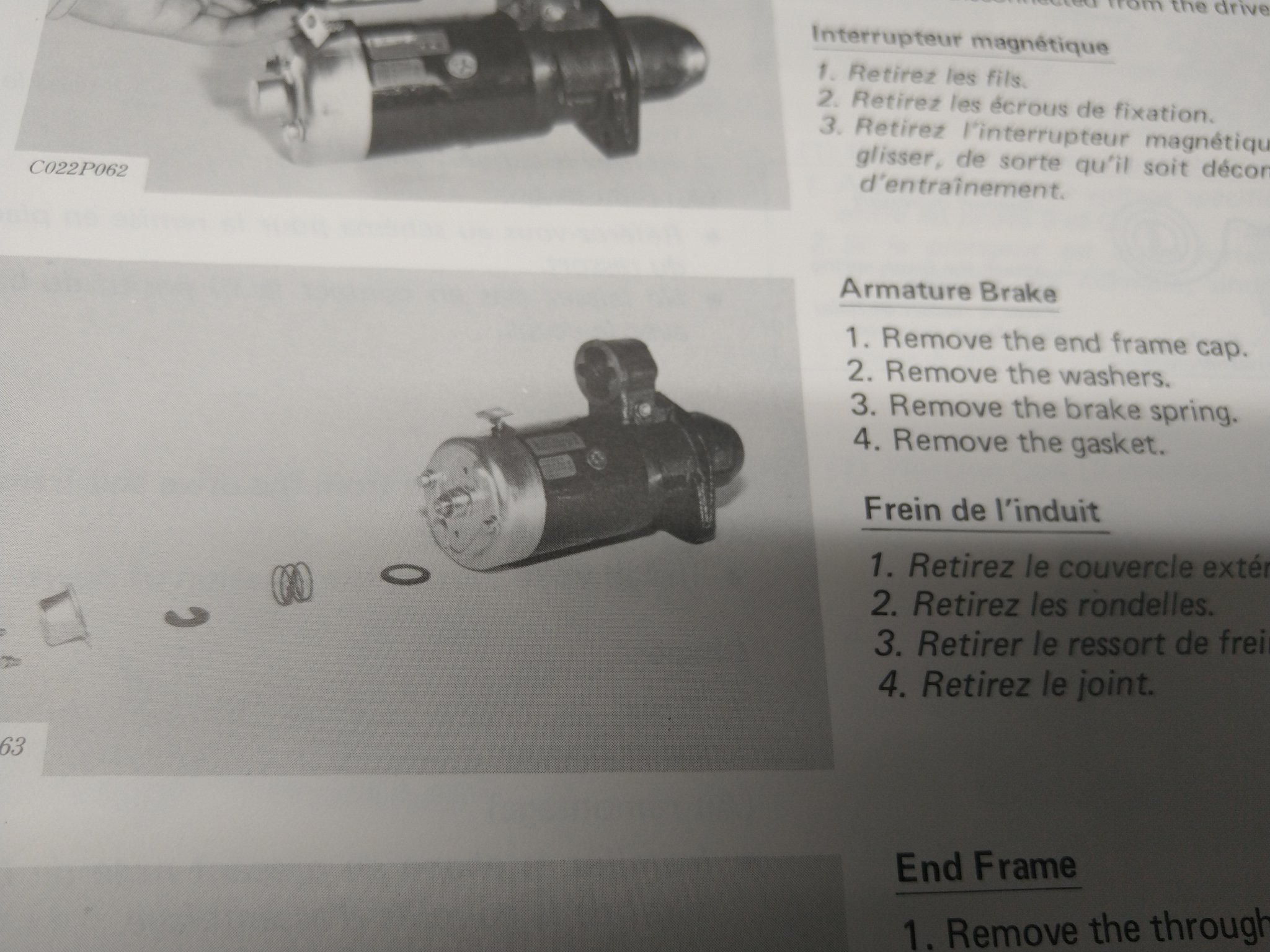

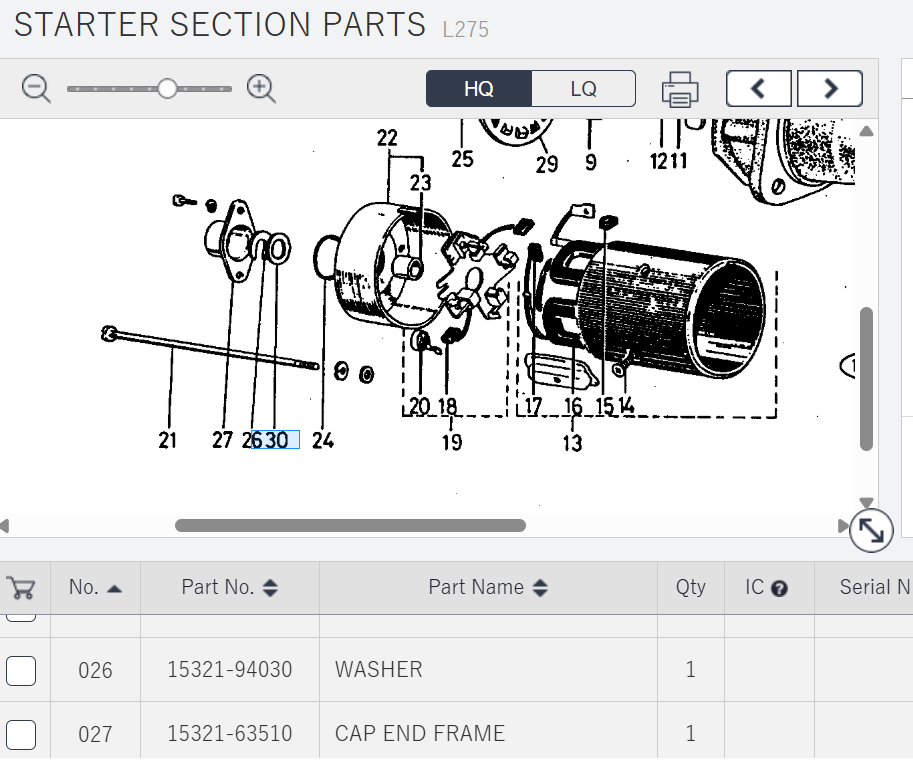

I took my starter off to check the brushes and noticed that there was a spring shown in my WSM that wasn't on my starter. Can anyone tell me what its function is? I thought maybe it pressed against the end of the shaft to counter some spring inside the starter that I can feel by pressing on the shaft. Judging by the drawing below, it has a pretty large diameter, so don't even know what it presses against.

The spring has been missing for a number of years already.



North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
33,433
8,722
113
Sandpoint, ID
Not all of them were designed with a spring and brake.
