Injection Pump leak

Dunslandloy

Member

Equipment
99 B2400HSD, 20 Kawasaki Teryx LE, Woods brush cutter, Befco tiller, Kodiak blad
Aug 4, 2017
46
2
8
SE OH

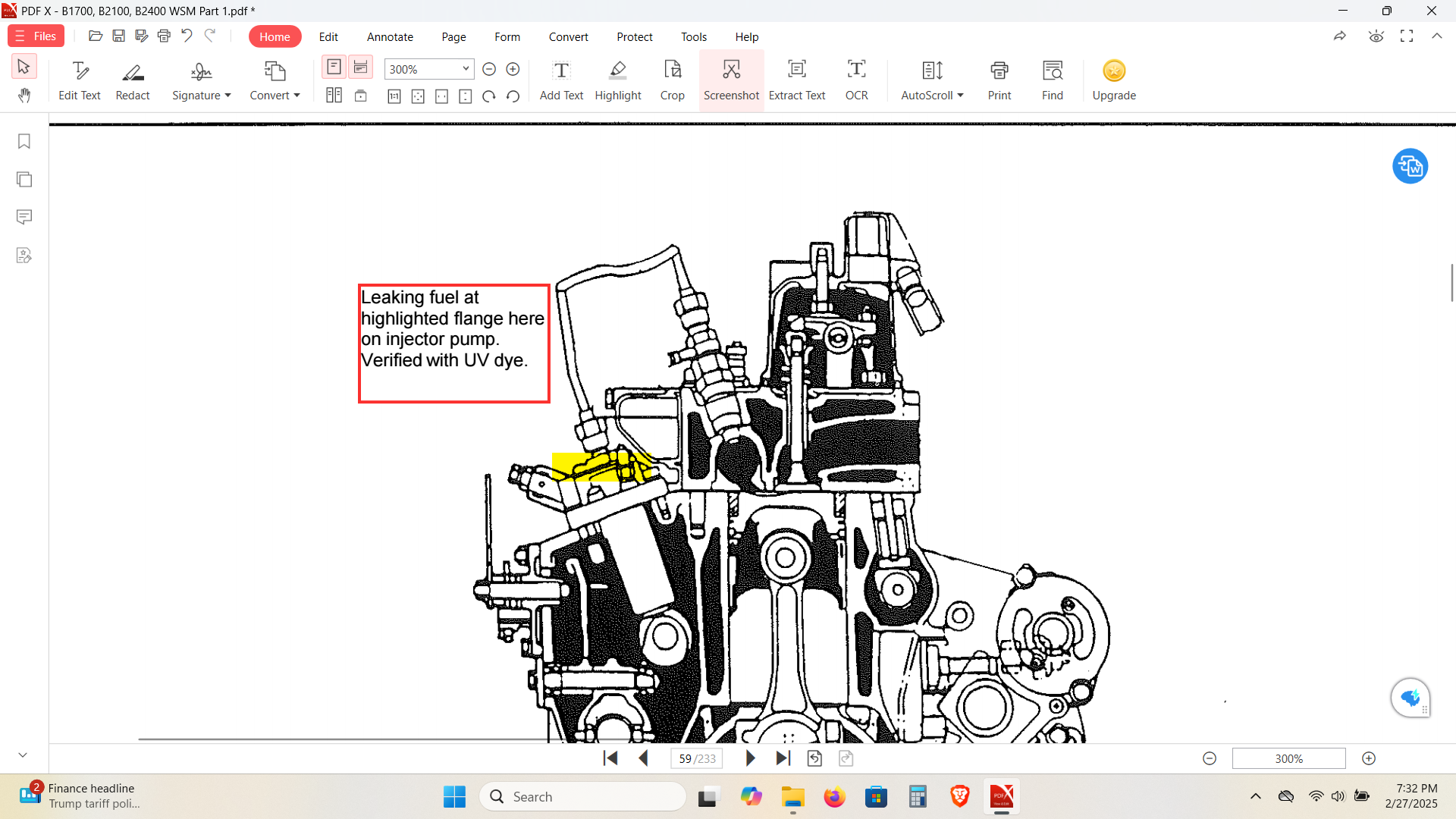

Hello all. I've got a 99 B2400 that's developed a drip, drip leak on the injector pump (see photo). I haven't tackled a diesel injection repair before and know that pressures can be dangerous so any and all input is welcome and appreciated.
Screenshot 2025-02-27 193344.png


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
31,795
7,587
113
Sandpoint, ID
The issue really isn't the pressures, it's taking it apart and losing timing of the valves in the pump.
That's the reason you see tamper proof screws in the top of the pump.

The leak is easy to fix, but you need to keep the parts in the proper order and proper orientation.
I have see many a pump damaged or disabled by DYI repairs.

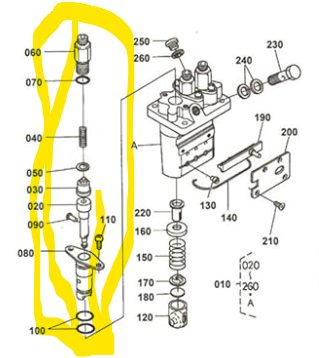

This is the O-rings that are leaking.

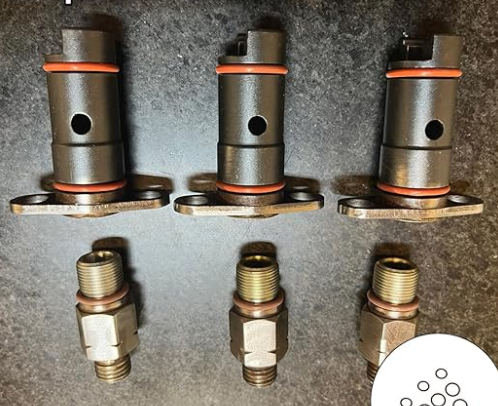

There are kits to do it, I can point them out, but I almost always recommend having it professionally rebuild.



Resealing / rebuilding it requires all these parts to be removed, and reinstalled perfectly.
The barrels above rotate in housing and that sets the timing curve of each pump.
If you replace hard parts like the pump and springs you will not be able to know where the valves should be positioned and what shims are needed to get the right travel distance of the pumps.
