BX2412 third function (for my bx23s)

maple544

New member

Equipment
BX23s
Aug 7, 2025
3
0
1
vermont
So I had a BX2412 third function installed on my BX by my dealer. They apparently did not know what coupler to put on it because they didn't know what my snow plow had on it, an neither did I. Now I need to buy the couplers myself, but I'm not sure what size.


On the plow: the bxpanded plow comes with "Hose ends terminate with ¼” male NPT swivel fitting to allow you to connect as desired. A tube of Loctite liquid thread sealant is included for this connection as it is safer than tape for your hydraulic system."


On the third function: whatever comes on the BX2412


Please, any help would be very appreciated!!!!


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, G2160/RCK60, G2460/RCK60
Apr 6, 2021
10,556
5,690
113
Myersville, MD
windyridgefarm.us
So I had a BX2412 third function installed on my BX by my dealer. They apparently did not know what coupler to put on it because they didn't know what my snow plow had on it, an neither did I. Now I need to buy the couplers myself, but I'm not sure what size.


On the plow: the bxpanded plow comes with "Hose ends terminate with ¼” male NPT swivel fitting to allow you to connect as desired. A tube of Loctite liquid thread sealant is included for this connection as it is safer than tape for your hydraulic system."


On the third function: whatever comes on the BX2412

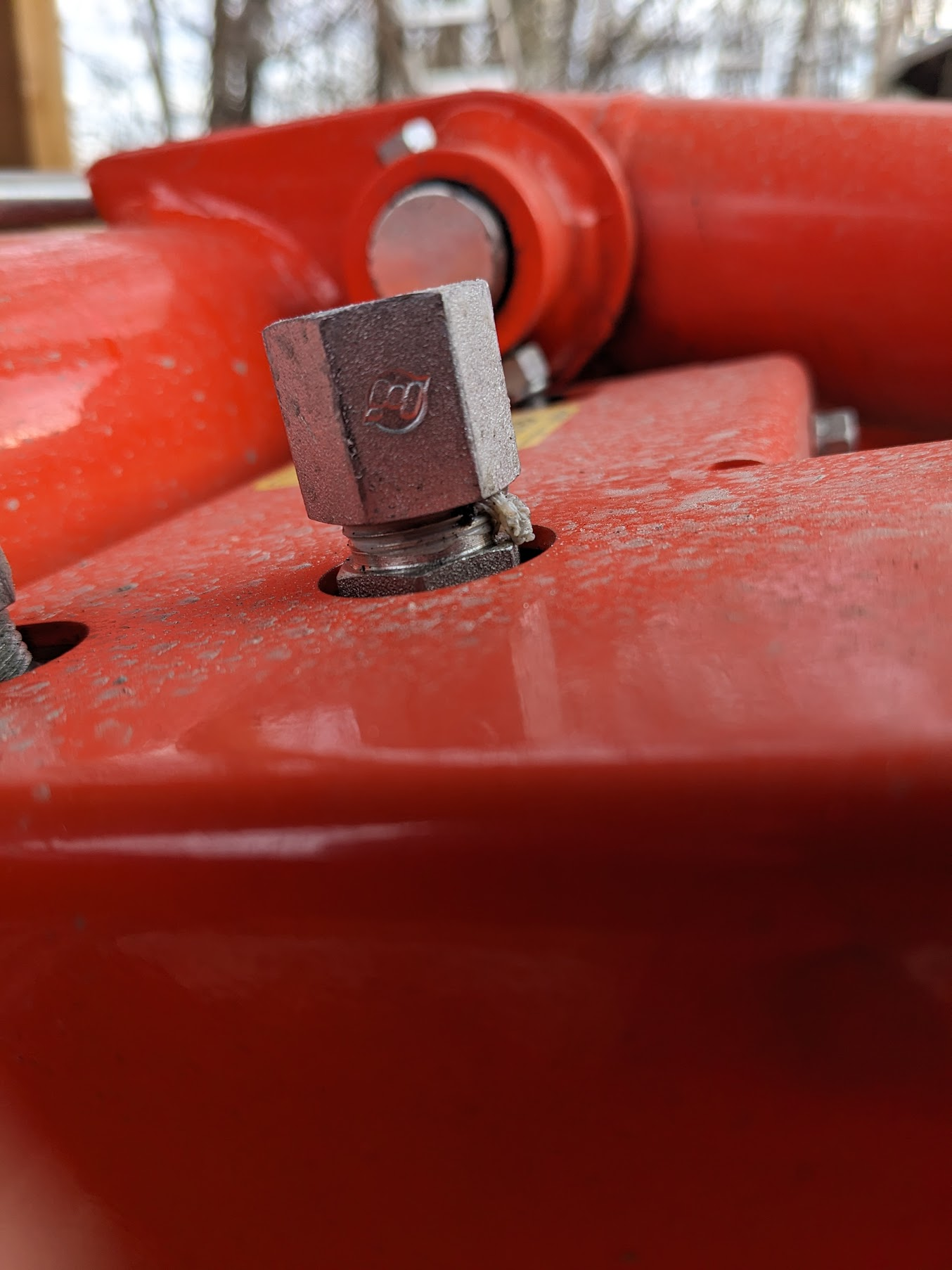

View attachment 165103
Please, any help would be very appreciated!!!!
If there are no couplers on either side use whatever you want. Kubota would normally use 1/4" flat face couplers

Dan
