broken tractor seat

[Josef]

I've taken about 40 pictures of my problem but when I look
at the picture, I can't make any sense out of the photo myself.
There is what I take to be a brace broken at the top and then
where the brace attaches at the bottom is also broken. Major
problem is that you can't get a decent camera angle.
If someone could be so kind as to send me a diagram, I might
maybe could make more sense.



[85Hokie]

Josef,

take one that is a little bit away from the seat - then take another up close the best you can.
that way we have a reference point to look at



[mdhughes]

Is the brace that is broken in the view below?



[Josef]

This is about as good as I can do picture wise. Sadly, some of the pictures got turned,
1 upside down and 1 by 90 degrees. The picture that says Springs is upside down, the
braces are outside of the springs. I have the broken brace on the left partially proped up.
You can see the right hand brace near the end of the tractor T handle. Look to the left and
lower you will see the other brace. I feel really sure that the lower end of the braces
Should be 1 piece also.



[Josef]

Sadly no. It all looks like mine without the braces.



[mdhughes]

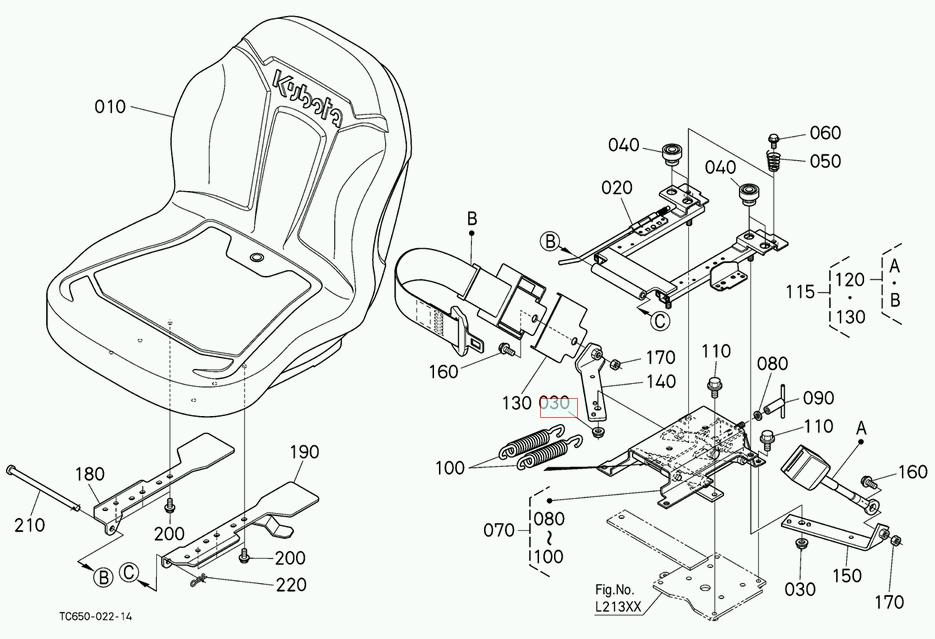

Based on the pictures you uploaded, I think you need:

No code has to be inserted here.

It doesn't look like you can get the part you need by itself.



[Yooper]

Josef, if the price on the assembly is sky high, that could be repaired. Know anybody with a welder?



[Josef]

I have a very strong feeling that it will be sky high. I would certainly
go down the welding repair road before I spent a bunch of money.
I'm thinking it really doesn't need to be adjustable, convenient probably
But not a must. The seat safety Switch will need to work. Right now
the seat Wobbles all over the place but the safety switch works.



[North Idaho Wolfman]

$328.84 Ouch!



[Josef]

Thanks very much, I knew you would put a number
To it for me.



[scdeerslayer]

Aren't you still under warranty?



[North Idaho Wolfman]

Thanks very much, I knew you would put a number
To it for me.

Yea I welded mine when it was broken!



[Josef]

Aren't you still under warranty?

Looking in the owners warranty manual which is difficult to understand,
I come to the conclusion that the tractor seat was 2 years or 2,ooh hours.
Two years was last summer.



[Josef]

Just got back and reinstalled tractor seat, $40.00. Thanks everyone for your help



[mdhughes]

Just got back and reinstalled tractor seat, $40.00. Thanks everyone for your help

What did you do to fix the seat?



[Josef]

Sorry about that, took it to the local welding shop.
