b7100 front pto shaft?

Max Power

New member

Equipment
b7100
Oct 4, 2013
2
0
0
Ottawa, ON
Hi all! I just bought a b7100 and noticed the other day that there is what looks like a PTO shaft sticking out the front. It has tighter grooves than the rear PTO shaft. There is no way that I can put a an implement shaft to this because the rad is in the way. What is this mystery shaft? Is it for a pulley? How's it activated?


BadDog

New member

Equipment
B7100D TL and B2150D TLB
Jun 5, 2013
579
2
0
Phoenix, AZ

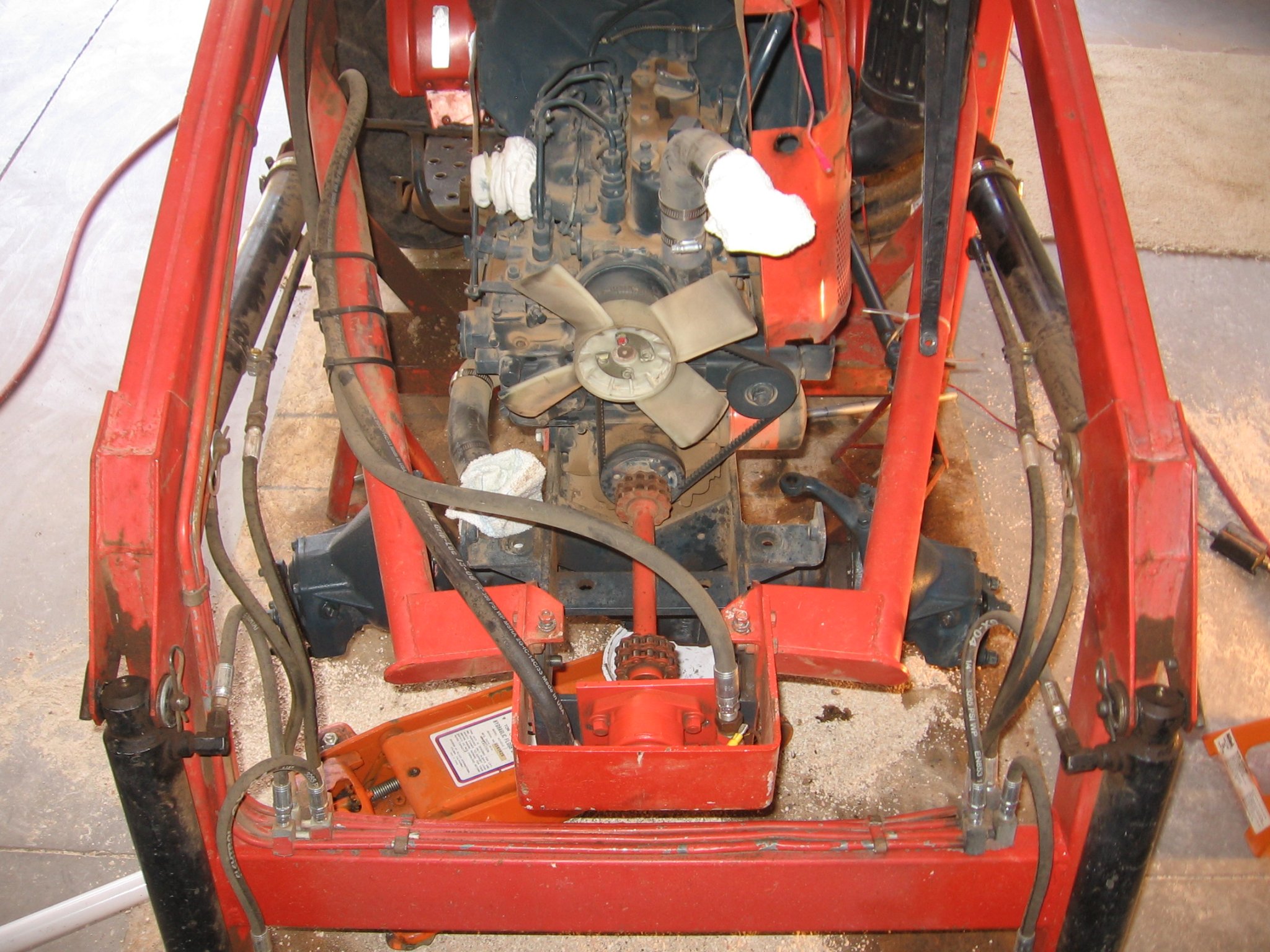

It is direct drive (unlike most rear PTOs), and is usually used with a front auxiliary pump for a loader. Mine is that way. Probably for other things too, but none come to mind right now.


kubotasam

Well-known member

Equipment
B2410, B7100dt, B7500,Woods BH750,Landpride 2660RFM, Tiller, B2781 Snowblower
Apr 26, 2010
1,206
129
63
Alfred Maine
As well as hydraulic pumps for loaders like Baddog said. Older B7100's used the front pto shaft to drive a belly mounted mower, also snow blowers were powered by the front shaft.


Max Power

New member

Equipment
b7100
Oct 4, 2013
2
0
0
Ottawa, ON
Cool. Thanks. So it just turns all the time? Also, what size of pump do I need to run a loader?
