B6100D hydraulic pump

[Lyzic]

Does anyone know if the high pressure out on the B6100D stock hydraulic pump is the top or the bottom line?

I can't find a manual for this tractor that tells me. I can pull them off and see but I'm hoping one of the gurus will know and save me a little bit of labour



[kubotasam]

I believe it is the one on the bottom of the pump. It will be the smaller diameter of the two pipes.



[Lyzic]

The smaller hose....thanks a ton!



[PoTreeBoy]

Does anyone know if the high pressure out on the B6100D stock hydraulic pump is the top or the bottom line?

I can't find a manual for this tractor that tells me. I can pull them off and see but I'm hoping one of the gurus will know and save me a little bit of labour

There is a repair manual for this model at www.kubotabooks.com. It's an I&T, not genuine Kubota, but it should help you. It's in three parts, the hydraulics is in part 3. I've found these to not be 100% accurate, so double check when using it.

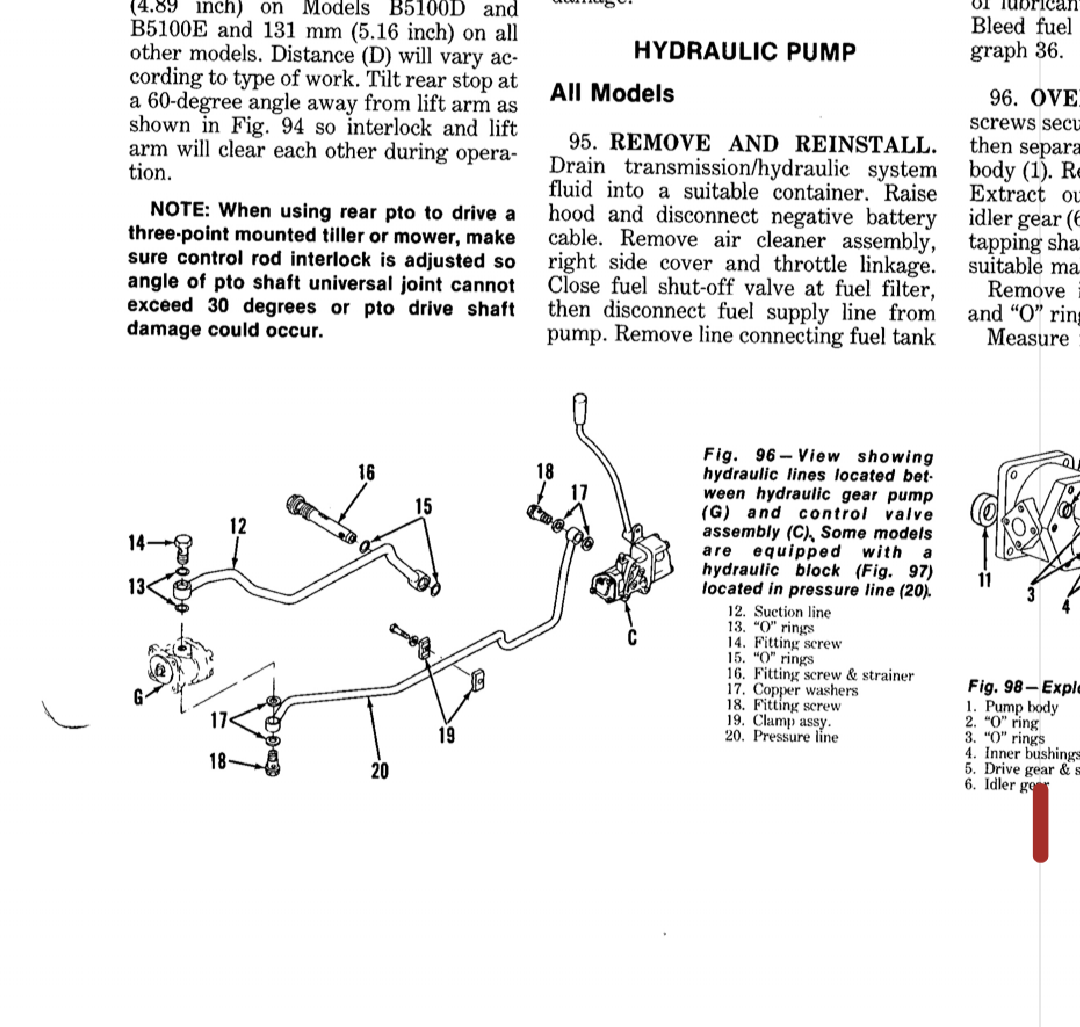

Assuming the manual is correct, this diagram shows the suction on top. You could verify with the parts diagram.



[torch]

There is a repair manual for this model at www.kubotabooks.com. It's an I&T, not genuine Kubota, but it should help you. It's in three parts, the hydraulics is in part 3. I've found these to not be 100% accurate, so double check when using it.

HST or Gearshift transmission? The B6100D HST model is covered under the B7100 HST manual -- the OEM factory manual is here: http://www.kubotabooks.com/AutoInde...wners Manuals/&file=B7100HST_WSM_complete.pdf



[PoTreeBoy]

HST or Gearshift transmission? The B6100D HST model is covered under the B7100 HST manual -- the OEM factory manual is here: http://www.kubotabooks.com/AutoIndex/index.php?dir=Tractor Owners Manuals/&file=B7100HST_WSM_complete.pdf



[Lyzic]

You guys are amazing, thanks for the links I am downloading them all now
