Adding rear hydraulic hookup to L3940

[Eric Wooldridge]

Hi all, I Am a produce grower in mid TN and purchased a 3940 last year to help get more done.

I need to install hydraulic hookups in the rear for our transplanter and have some questions about how to do this. I know there are kits you can buy but I’m trying to figure out if the tractor is already equip with some of what I need.

Can anyone give me some guidance on how to do this?
Easiest to just buy a kit?
Can I use the joystick to engage the rear hydraulics once installed? No loader is on the tractor.
Thanks for any help,

Eric
Bells Bend Farms



[old and tired]

Get a photo of the metal lines, do they actually attach to the tractor? My guess is they do and you have hydraulics that would normally run the FEL but can be plumbed to the rear...



[TheOldHokie]

Hi all, I Am a produce grower in mid TN and purchased a 3940 last year to help get more done.

I need to install hydraulic hookups in the rear for our transplanter and have some questions about how to do this. I know there are kits you can buy but I’m trying to figure out if the tractor is already equip with some of what I need.

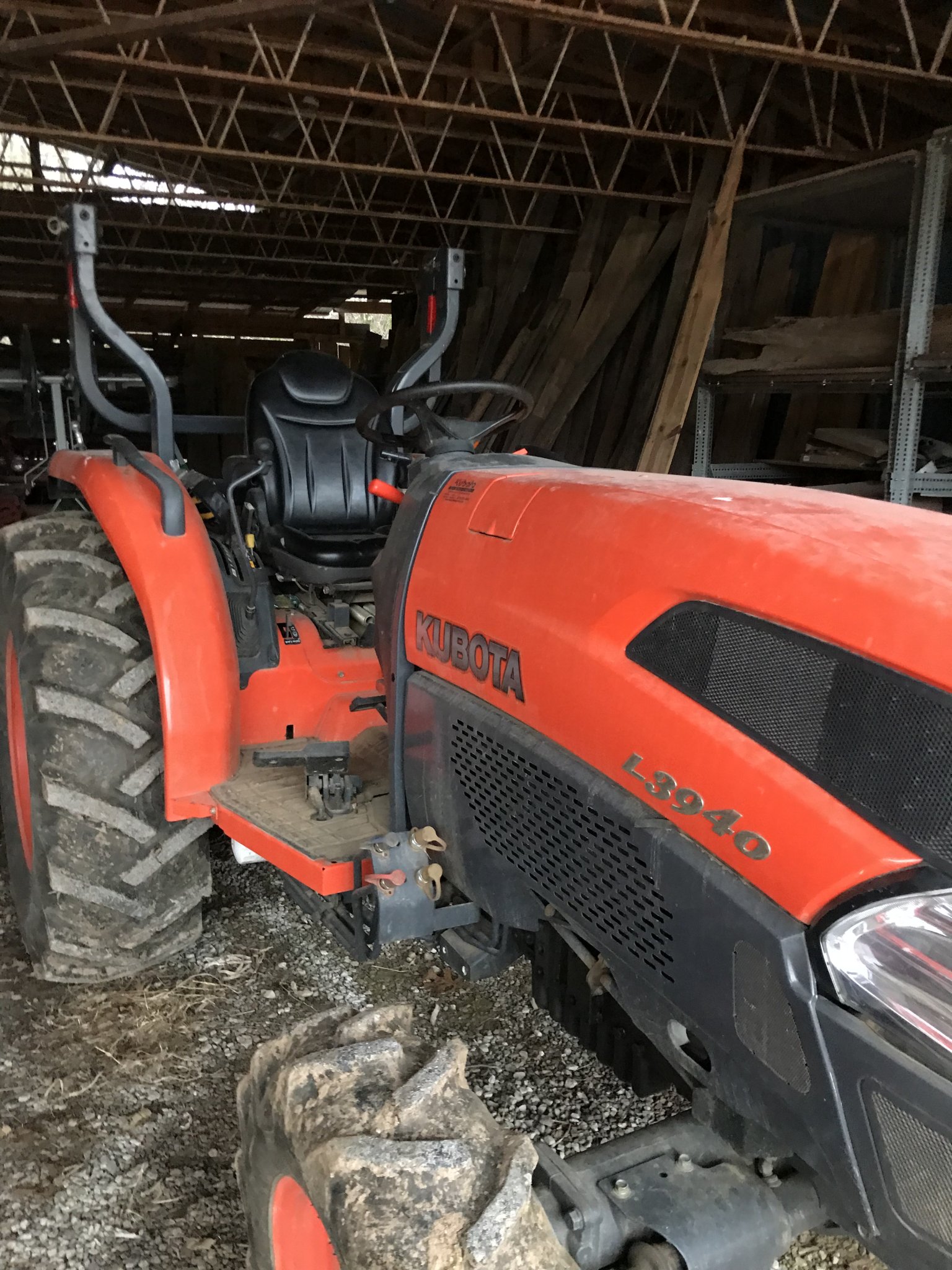

View attachment 95115

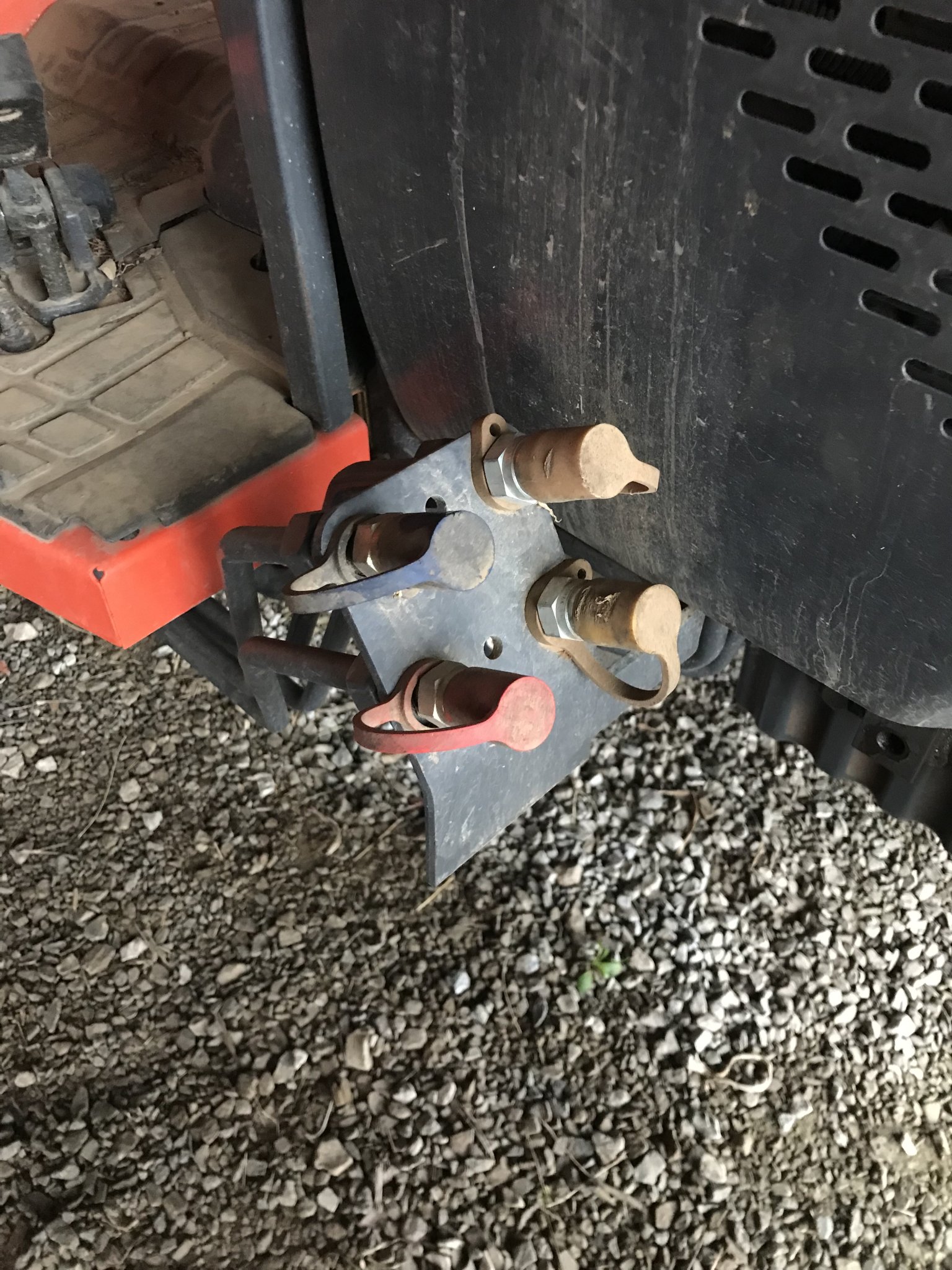

View attachment 95117

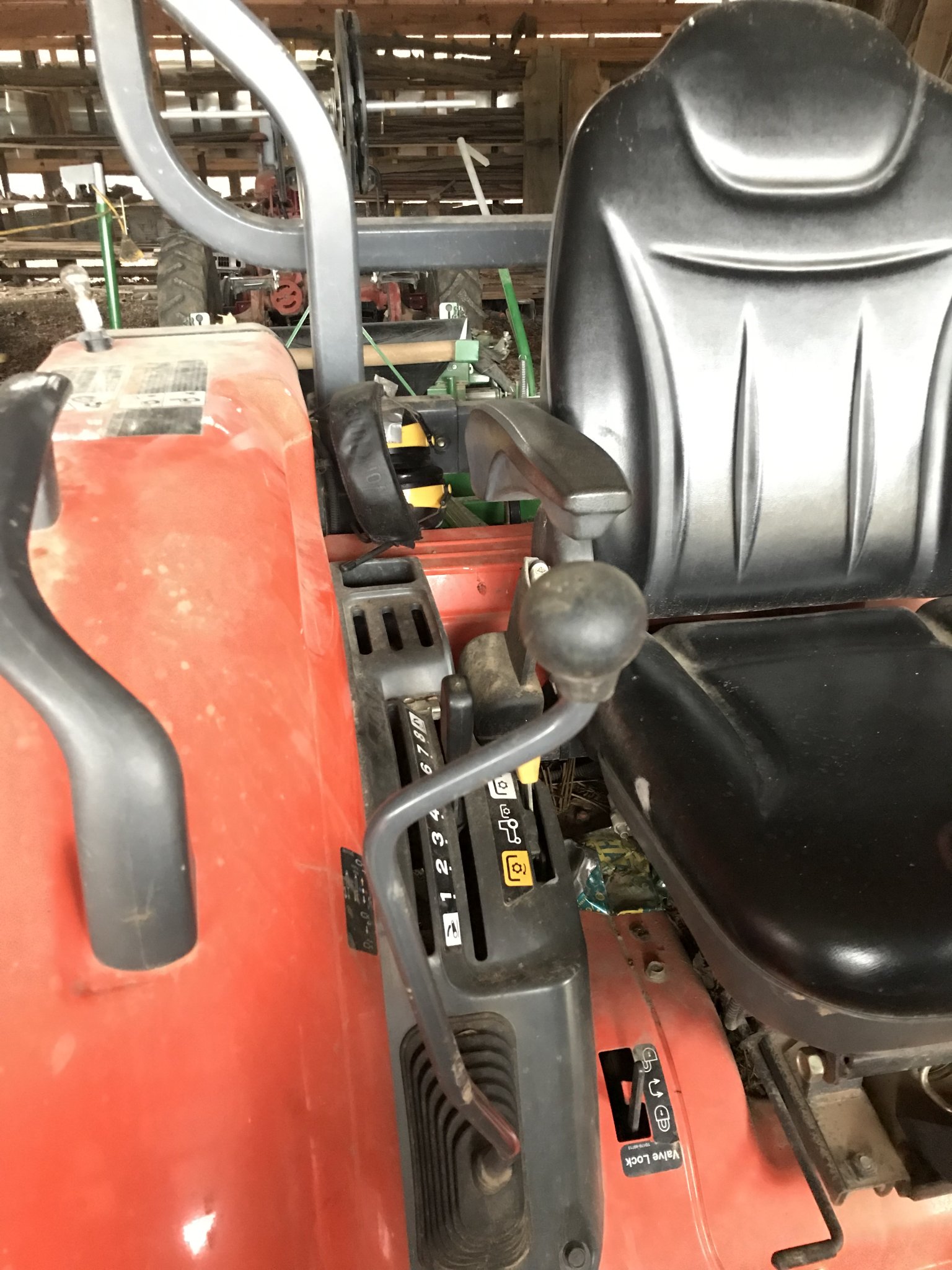

View attachment 95119

Can anyone give me some guidance on how to do this?
Easiest to just buy a kit?
Can I use the joystick to engage the rear hydraulics once installed? No loader is on the tractor.
Thanks for any help,

Eric
Bells Bend Farms

I dont see any levers for factory rear remotes and those kits are probably NLA.

Adding a commodity valve for rear remotes is straightforward and not particularly expensive. You could use the loader ports for a rear attachment but I think you will find it is a PITA

Dan



[North Idaho Wolfman]

I dont see any levers for factory rear remotes and those kits are probably NLA.

Adding a commodity valve for rear remotes is straightforward and not particularly expensive. You could use the loader ports for a rear attachment but I think you will find it is a PITA

Dan

Why is it a pain?
With the loader valve already installed he has 2 Hydraulic outlets that just need hoses hooked to them.
Easy as that?



[TheOldHokie]

Why is it a pain?
With the loader valve already installed he has 2 Hydraulic outlets that just need hoses hooked to them.
Easy as that?

Its an opinion.

Hoses to the rear are ugly and cumbersome and the valve is designed for loader operations not rear implements.

Put a set of rear remotes on it and Its an improvement not a kludge.

Just my $.02

Dan



[North Idaho Wolfman]

If he was using a loader I'd 100% agree.
While I don't like hoses either, it would by far be the cheapest and quickest solution!
That loader valve looks to be pretty convenient for this task.
Set of jumpers to a rear mounted block and he's good to go.



[kubotafreak]

Eric,

Some times they have the factory diversion kit on ebay for the 40 series. I see them from time to time. (L8349)



[TheOldHokie]

Eric,

Some times they have the factory diversion kit on ebay for the 40 series. I see them from time to time. (L8349)

Is that the kit that replaces the front loader pipes with hoses and outlets in the rear?. If so easy to roll your own.



[kubotafreak]

Is that the kit that replaces the front loader pipes with hoses and outlets in the rear?. If so easy to roll your own.

True... good alternative if you have the capability, and time



[North Idaho Wolfman]

Excellent post Kubotafreak!

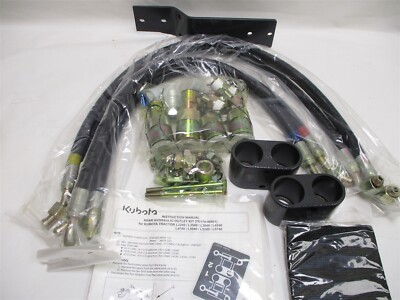

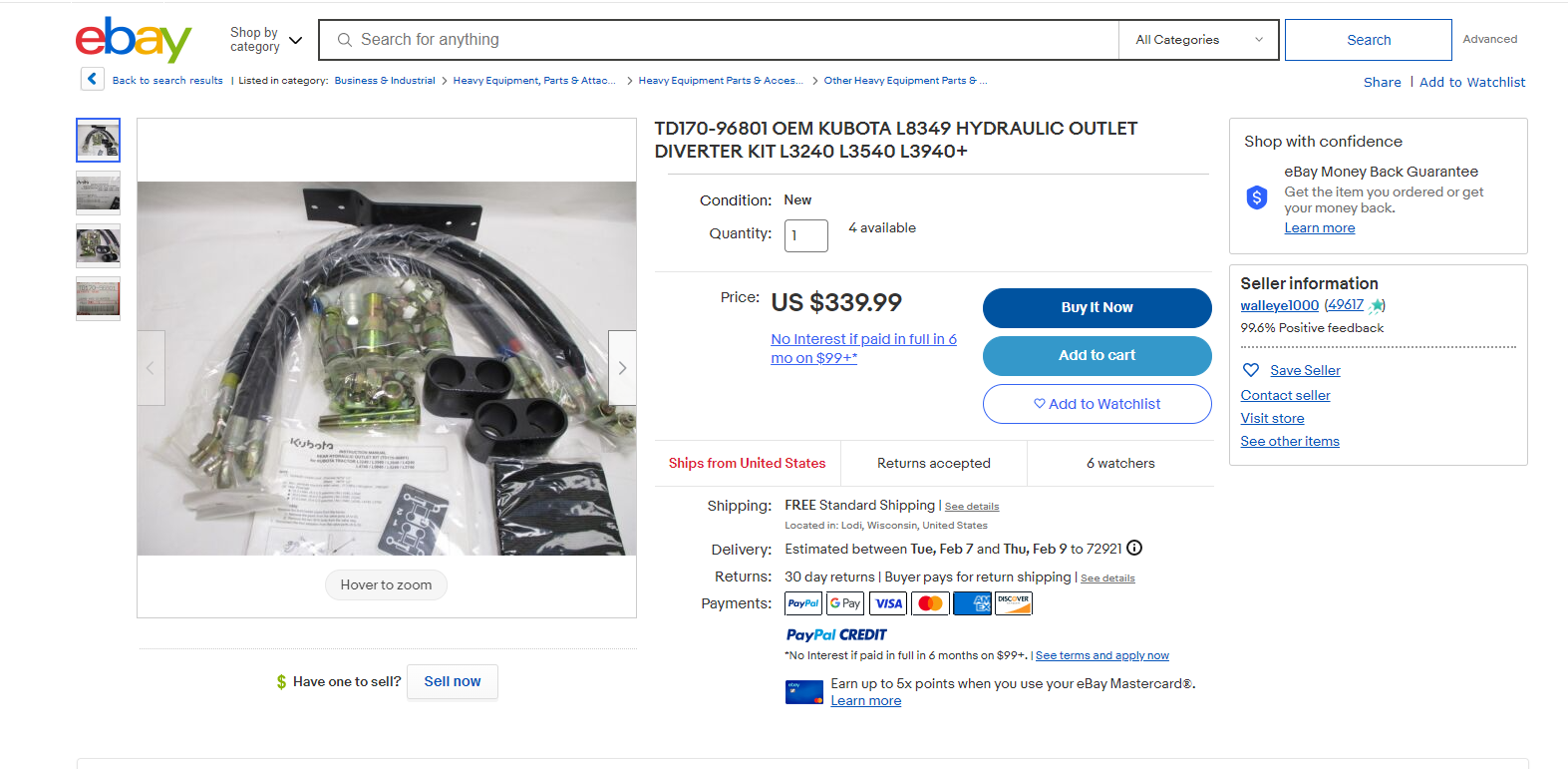

TD170-96801 OEM KUBOTA L8349 HYDRAULIC OUTLET DIVERTER KIT L3240 L3540 L3940+ | eBay

This is a new Kubota HYDRAULIC REAR OUTLET KIT, PART #TD170-96801 <br> <br>L8349 <br> <br>L40 SERIES TRACTORS: L3240 L3540 L3940 L4740 L5240 L5740 <br> <br>THIS PART IS NEW OLD KUBOTA STOCK. SOME MODELS DESIGNS AND PART NUMBERS HAVE CHANGED. IT IS UP TO YOU TO MAKE CERTAIN THAT THIS IS THE...

www.ebay.com



[Eric Wooldridge]

If he was using a loader I'd 100% agree.
While I don't like hoses either, it would by far be the cheapest and quickest solution!
That loader valve looks to be pretty convenient for this task.
Set of jumpers to a rear mounted block and he's good to go.

Thanks for all the suggestions guys!

I can picture what needs to happen here but am unable to find the right hose looking online. Not trying to be lazy but can anyone send a list of what I need or part # for the extension hoses that will run to the back or is it not that simple?

Is the "rear mounted block" just a bracket that holds the hoses or is that the quick connect thing in the rear?

Thanks for educating me!



[TheOldHokie]

Thanks for all the suggestions guys!

I can picture what needs to happen here but am unable to find the right hose looking online. Not trying to be lazy but can anyone send a list of what I need or part # for the extension hoses that will run to the back or is it not that simple?

Is the "rear mounted block" just a bracket that holds the hoses or is that the quick connect thing in the rear?

Thanks for educating me!

You just need two roughly 10' long lengths of hydraulic hose with 3/8" make pipe ends and four female quick couplers.

The OEM couplers for the front are 3/8" Faster HNV (ISO 7241-B) and they screw right onto the hoses. Then plug them into the male tips on your tractor. Here is a generic equivalent for the Faster couplers.

https://summit-hydraulics.com/product/3-8-npt-iso-7241-b-quick-disconnect-hydraulic-coupler-set/

The ones for the rear would be any 1/2" ISO 5675 agricultural coupler which you can get at any local tractor supply. You will need two 3/8 female NPT to 1/2 male NPT adapters to screw them onto the hoses. You can get them from the same source.

1/2" Ag Hydraulic Quick Connect Female Coupler, Poppet Valve, 1/2" NPT

Free Shipping 1/2" Ag Hydraulic Quick Connect Female Coupler, Poppet Valve, 1/2" NPT

summit-hydraulics.com

If you are going quick and dirty just plug them into the front, run them along the fender, and zip tie them to the ROPS

Dan



[North Idaho Wolfman]

Thanks for all the suggestions guys!

I can picture what needs to happen here but am unable to find the right hose looking online. Not trying to be lazy but can anyone send a list of what I need or part # for the extension hoses that will run to the back or is it not that simple?

Is the "rear mounted block" just a bracket that holds the hoses or is that the quick connect thing in the rear?

Thanks for educating me!

For clarity: This kit that KubotaFreak pointed at, replaces the forward lines to be rearward lines with quick disconnects.

TD170-96801 OEM KUBOTA L8349 HYDRAULIC OUTLET DIVERTER KIT L3240 L3540 L3940+ | eBay

This is a new Kubota HYDRAULIC REAR OUTLET KIT, PART #TD170-96801 <br> <br>L8349 <br> <br>L40 SERIES TRACTORS: L3240 L3540 L3940 L4740 L5240 L5740 <br> <br>THIS PART IS NEW OLD KUBOTA STOCK. SOME MODELS DESIGNS AND PART NUMBERS HAVE CHANGED. IT IS UP TO YOU TO MAKE CERTAIN THAT THIS IS THE...

www.ebay.com



[Eric Wooldridge]

You just need two roughly 10' long lengths of hydraulic hose with 3/8" make pipe ends and four female quick couplers.

The OEM couplers for the front are 3/8" Faster HNV (ISO 7241-B) and they screw right onto the hoses. Then plug them into the male tips on your tractor. Here is a generic equivalent for the Faster couplers.

https://summit-hydraulics.com/product/3-8-npt-iso-7241-b-quick-disconnect-hydraulic-coupler-set/

The ones for the rear would be any 1/2" ISO 5675 agricultural coupler which you can get at any local tractor supply. You will need two 3/8 female NPT to 1/2 male NPT adapters to screw them onto the hoses. You can get them from the same source.

1/2" Ag Hydraulic Quick Connect Female Coupler, Poppet Valve, 1/2" NPT

Free Shipping 1/2" Ag Hydraulic Quick Connect Female Coupler, Poppet Valve, 1/2" NPT

summit-hydraulics.com

If you are going quick and dirty just plug them into the front, run them along the fender, and zip tie them to the ROPS

Dan

Thank you. Quick and dirty is the way I've got to go for the coming season...just too many other projects to finish by March.

I want to make sure I'm getting this right before I order:

Here is the main hose, 8' 3/8 male ends (x2): https://www.amazon.com/gp/product/B09WRT92LF/ref=ox_sc_act_title_2?smid=A1YZ3POA56ITHS&psc=1

Front quick connect to existing tractor male part ( I need 2 ): https://www.amazon.com/gp/product/B07N1VJ61C/ref=ox_sc_act_title_1?smid=A1VH34FQCDTBWO&psc=1

For the back end,
This adapter x2: https://www.amazon.com/gp/product/B0877YFWM8/ref=ox_sc_act_title_3?smid=A2GWB408K7VADK&psc=1

Then adapter to this quick connect (x2): https://www.amazon.com/cart/smart-wagon?newItems=57ca65c3-ccb9-43a8-bc72-786246ef2629,2

Is that right?

Thanks,

Eric



[TheOldHokie]

Thank you. Quick and dirty is the way I've got to go for the coming season...just too many other projects to finish by March.

I want to make sure I'm getting this right before I order:

Here is the main hose, 8' 3/8 male ends (x2): https://www.amazon.com/gp/product/B09WRT92LF/ref=ox_sc_act_title_2?smid=A1YZ3POA56ITHS&psc=1

Front quick connect to existing tractor male part ( I need 2 ): https://www.amazon.com/gp/product/B07N1VJ61C/ref=ox_sc_act_title_1?smid=A1VH34FQCDTBWO&psc=1

For the back end,
This adapter x2: https://www.amazon.com/gp/product/B0877YFWM8/ref=ox_sc_act_title_3?smid=A2GWB408K7VADK&psc=1

Then adapter to this quick connect (x2): https://www.amazon.com/cart/smart-wagon?newItems=57ca65c3-ccb9-43a8-bc72-786246ef2629,2

Is that right?

Thanks,

Eric

Link to rear couplers does not seem to work but otherwise yes.

Dan



[DustyRusty]

Before you order, consider checking the prices at https://www.discounthydraulichose.com/. I have ordered from them and they are fast and economical with good quality. If you are not certain as to exactly what you need, you can call and speak to a live person that actually understands and knows what to recommend.



[old and tired]

.....



[TheOldHokie]

If I were to do it again, I would run the hoses straight to the hydraulic top and side link with NO disconnects. Saves money since I have never had a reason to disconnect either the top or side link!!!!

Except of course he is not using them for top or side links.......

Dan



[Eric Wooldridge]

Link to rear couplers does not seem to work but otherwise yes.

Dan

I've got the parts and am getting the hoses put together. For the valve block (4) on the tractor that I'm hooking these to, which 2 do I hook to for the joystick to operate it?

Thanks,

Eric



[TheOldHokie]

I've got the parts and am getting the hoses put together. For the valve block (4) on the tractor that I'm hooking these to, which 2 do I hook to for the joystick to operate it?

Thanks,

Eric

Dont know the specifics of that valve but the two that operate the loader boom - they will be on the top left side of the valve.

Dan
