My Kubota mid mount mower deck will not raise fully. It lifts roughly half way and stops. The 3PH goes up and down with no issue. Doesn't look like anything is stuck preventing it from raising fully. Any advice is greatly appreciated.
2011 Kubota B2320 HSD (Mower deck doesn't raise fully)
- Thread starter Akeen_5336
- Start date

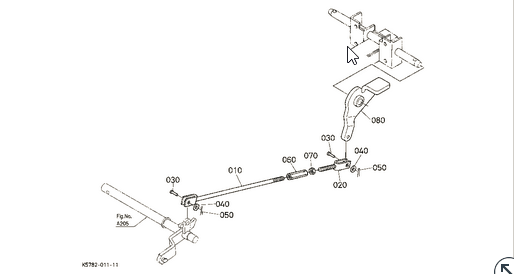

Sounds like the liftarm (60 in diagram) needs to be adjusted. The MMM owners manual has the adjustments. My B2620 and my new B2601 had to be adjusted after delivery. Seems the dealer just installed the decks but didn't adjust. Liftarm is next to the left rear wheel under the 3ph.
