Reviving a G1900

[Hugo Habicht]

If you disconnect the linkages you should be able to push the deck back far enough under the tractor to get the drive shaft off at the front. Then you should be able to move it in any direction to reach the grease nipple. Maybe you can replace it with an angled version to be able to reach it without that maneuver.

Don't neglect the servicing, greasing. See what damage it did to my front axle.



[lmichael]

If you disconnect the linkages you should be able to push the deck back far enough under the tractor to get the drive shaft off at the front. Then you should be able to move it in any direction to reach the grease nipple. Maybe you can replace it with an angled version to be able to reach it without that maneuver.

Don't neglect the servicing, greasing. See what damage it did to my front axle.

That is how I do it. I cannot get the collar on the PTO off with the mower deck in place. Literally cannot fit myself up under there to get my hand in position. So, I jack the back end of the machine up really high, with the linkages disconnected, I then slide the deck backward and off the slip joint, once it's slid out and dragged away I can then get the collar released for the PTO shaft to the mower. A little convoluted but it's the only way this old fart can handle it



[Hugo Habicht]

That is how I do it. I cannot get the collar on the PTO off with the mower deck in place. Literally cannot fit myself up under there to get my hand in position. So, I jack the back end of the machine up really high, with the linkages disconnected, I then slide the deck backward and off the slip joint, once it's slid out and dragged away I can then get the collar released for the PTO shaft to the mower. A little convoluted but it's the only way this old fart can handle it

That sounds pretty complicated to reach one grease point. On the G1900 there really is enough space from the side. Have you tried turning the front wheels for a bit of extra space?



[lmichael]

It's on the U Joint for the mower drive shaft. Could turn the wheels until the cows come home, sadly they way that zerk is jammed in there, you have to pull the shaft and angle the end at 90deg to get the fitting on there



[Hugo Habicht]

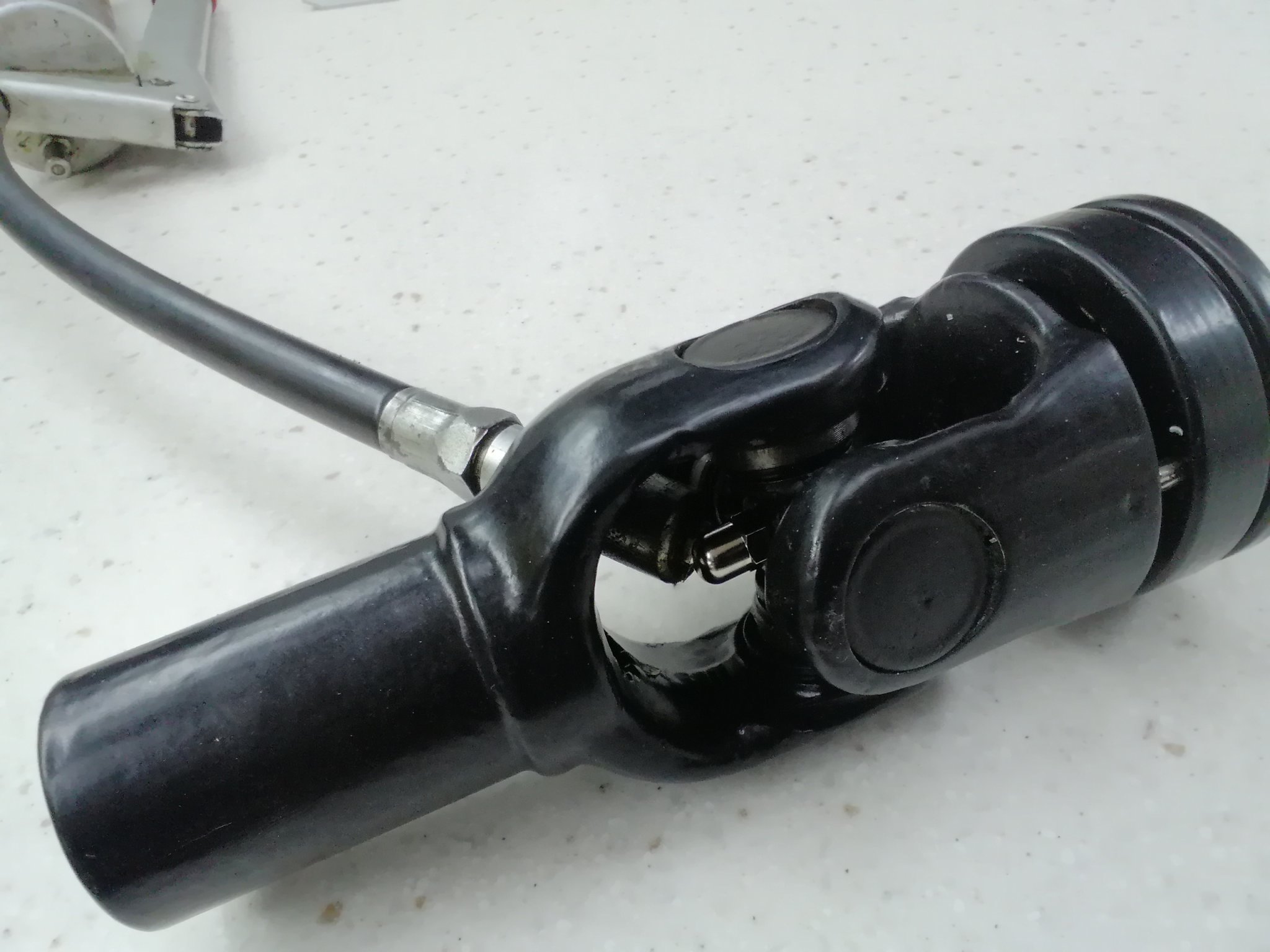

Is that a straight one? Then you could replace it with an angled version. This is accessible with a normal grease gun head.

It is a u-joint from a deck I just repaired. It has to point in the right direction, of course. So buy a bunch of them (Aliexpress) and try out which one is fine when tightened or degrease everything and use Loctite.

Is it the right PTO shaft for this deck? Maybe you have to shorten the sliding parts ever so slightly.



[lmichael]

When I have the shaft out I'll run to my farm supply store and see what I can find. Honestly it is frustrating. I may not even get to this for awhile or even this year. Lots is riding on whether or not they find the "Big C" when I go to the urologist in 10 days



[Hugo Habicht]

Rear wheel steering repair

There are are few parts that can wear or can be damaged:

08101-06205 bearing drive shaft, 2x 6205
09502-55210 oil seal, 2x 25x52x10mm
67910-56430 bush 4ws rear axle, king pin 4x
08400-00010 ball bearing, thrust bearing 2x
08141-06008 ball bearing, wheel bearing 4x 6008 2RS
01517-71025 wheel stud, M10x1.25 40mm total length
66021-17120 wheel nuts m10x1.25
67910-56430 bushing rear axle pivot 4x
66111-46240 kit u-joint only, 2x 25x44 inside clip rings

o-ring king pin support to rear axle, 2x 50x3mm NBR shore 70
o-ring king pin support to knuckle bar, 2x 45x3mm NBR shore 70
o-ring king pin support to king pin, 2x 20x2.4mm NBR shore 70

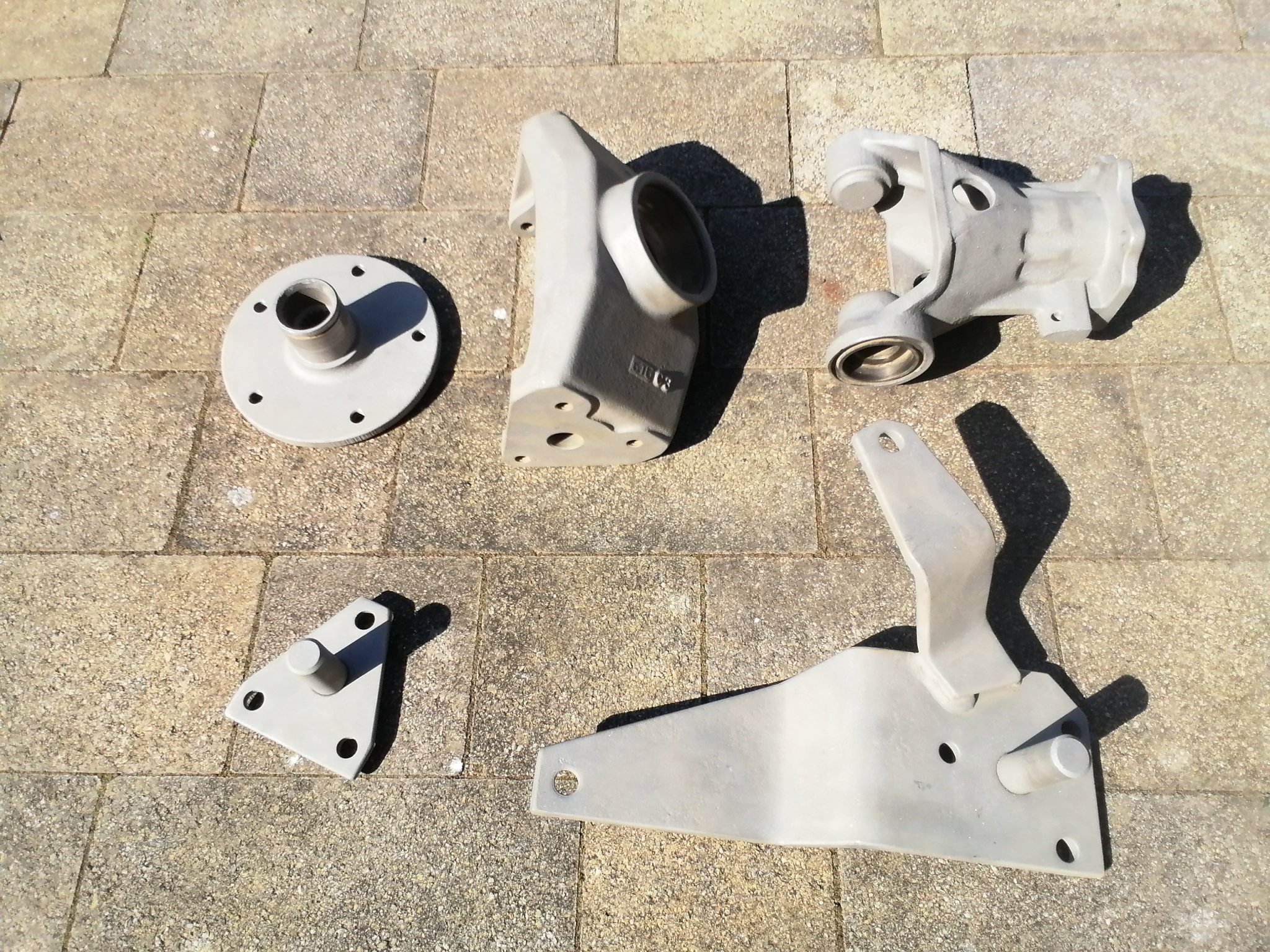

I started by removing the paint with a CSD disk and then rounded off all sharp corners on all parts to improve paint thickness and hence get better corrosion protection.



Followed by sand blasting and chemical rust removal.



Then two thin layers of epoxy primer and top coat.

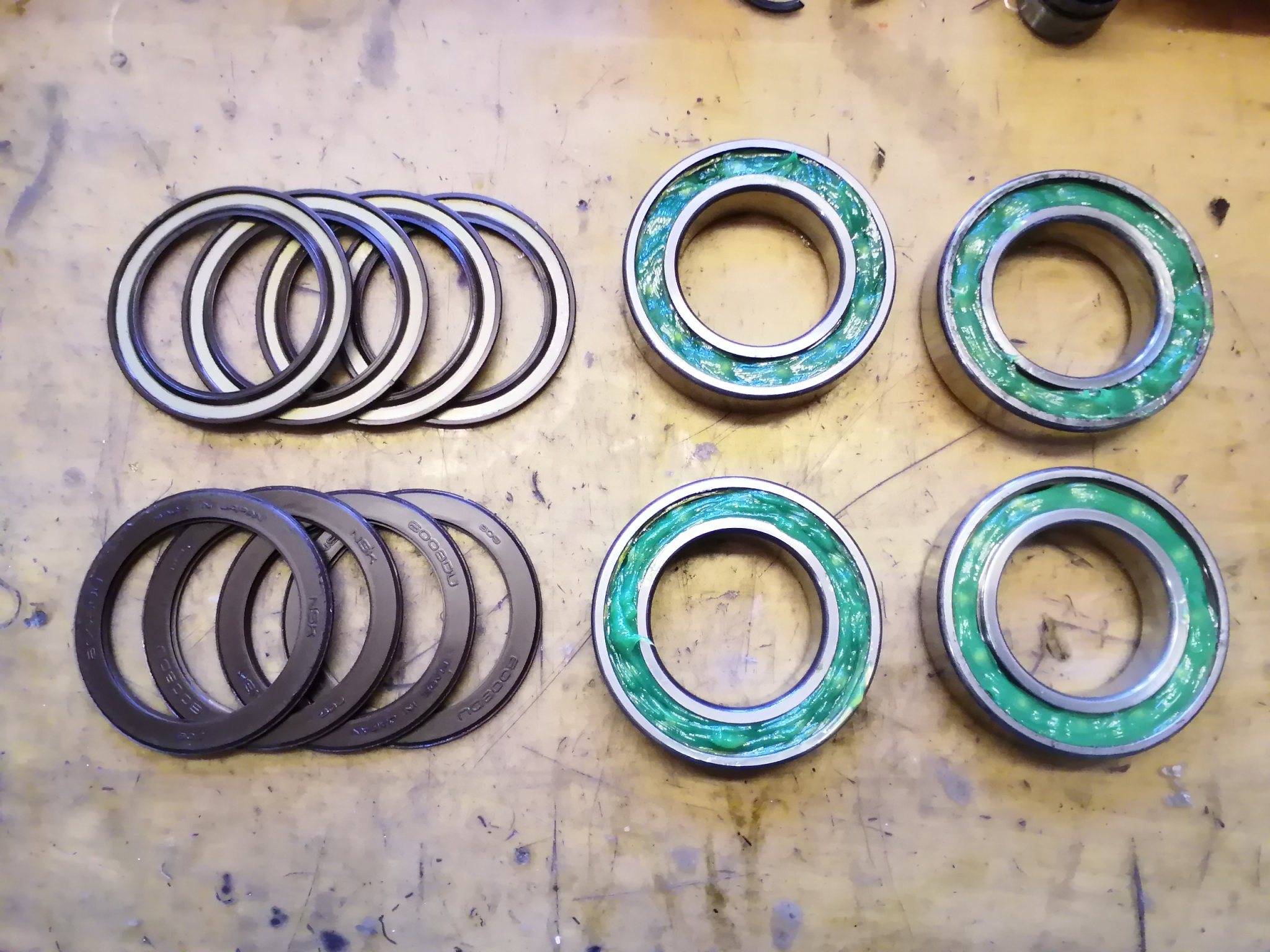

The wheel bearings were in good condition, so I removed the seal disks, cleaned them thoroughly and applied new wheel bearing grease.



I first thought the thrust bearings are worn because the knuckle arm was scraping on the king pin support. But when the new bearings from Kubota arrived they were exactly the same size and no wear visible on the king pin support. I did not like that and made shims with 0.15mm thickness, 2 each side to go above the thrust bearing creating a 0.3mm gap and no scraping any more.



I got a set of nuts and bolts and washers from another tractor zinc electroplated and yellow passivated.



So everything ready to be assembled.



[Hugo Habicht]

Rear wheel steering assembly

Insert one clip ring into the axle support, slide in both wheel bearings and secure with the second clip ring.

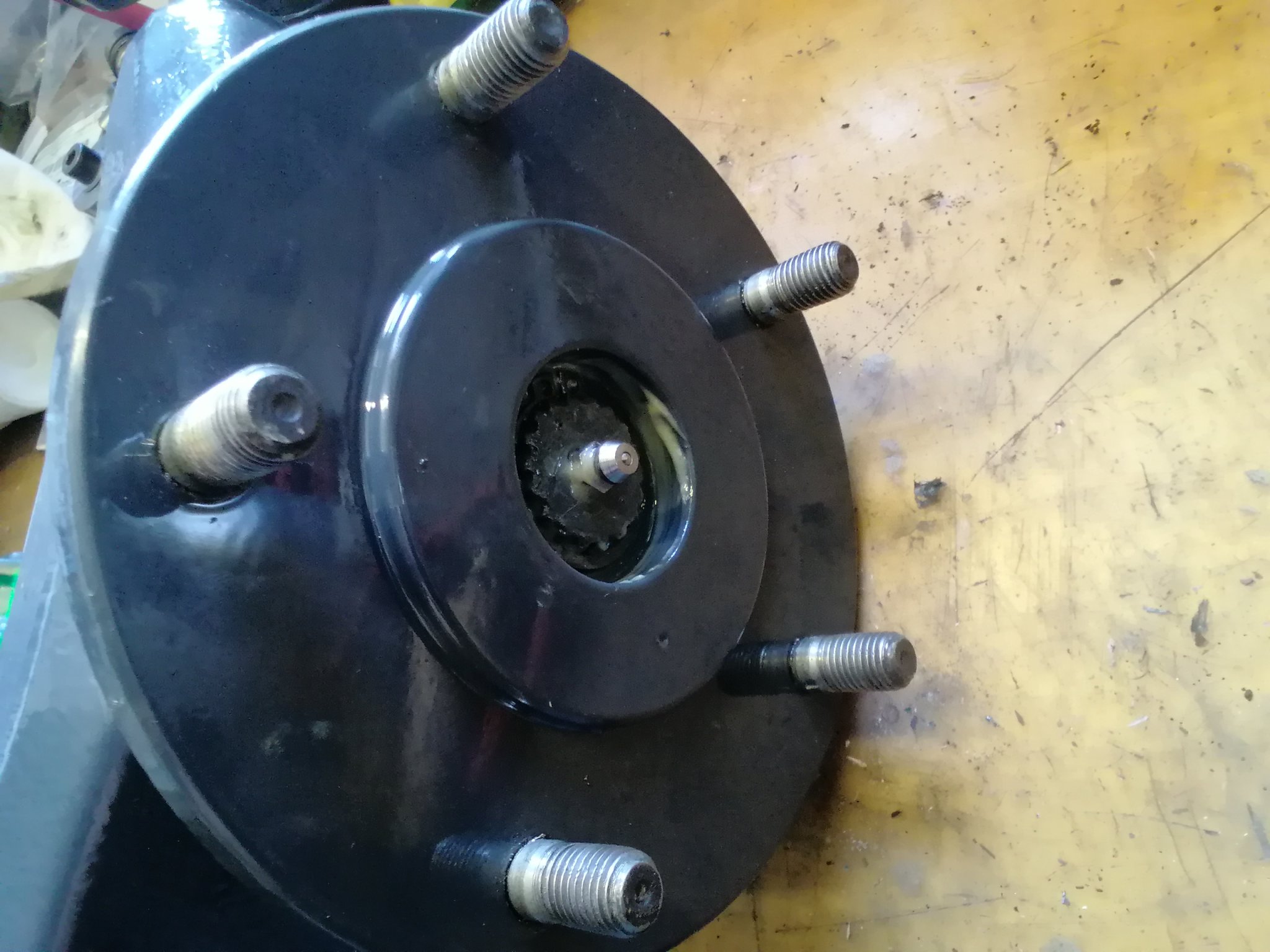

Insert wheel nut studs into the wheel hub. I turned them around with the longer part to the inside and secured them with counter nuts M10x1.25. This way the studs will not protrude the wheel nuts any more.



Push in the wheel hub and secure with the clip ring on the inside. I had blackened the clip rings beforehand and applied corrosion protection wax over the clip rings.

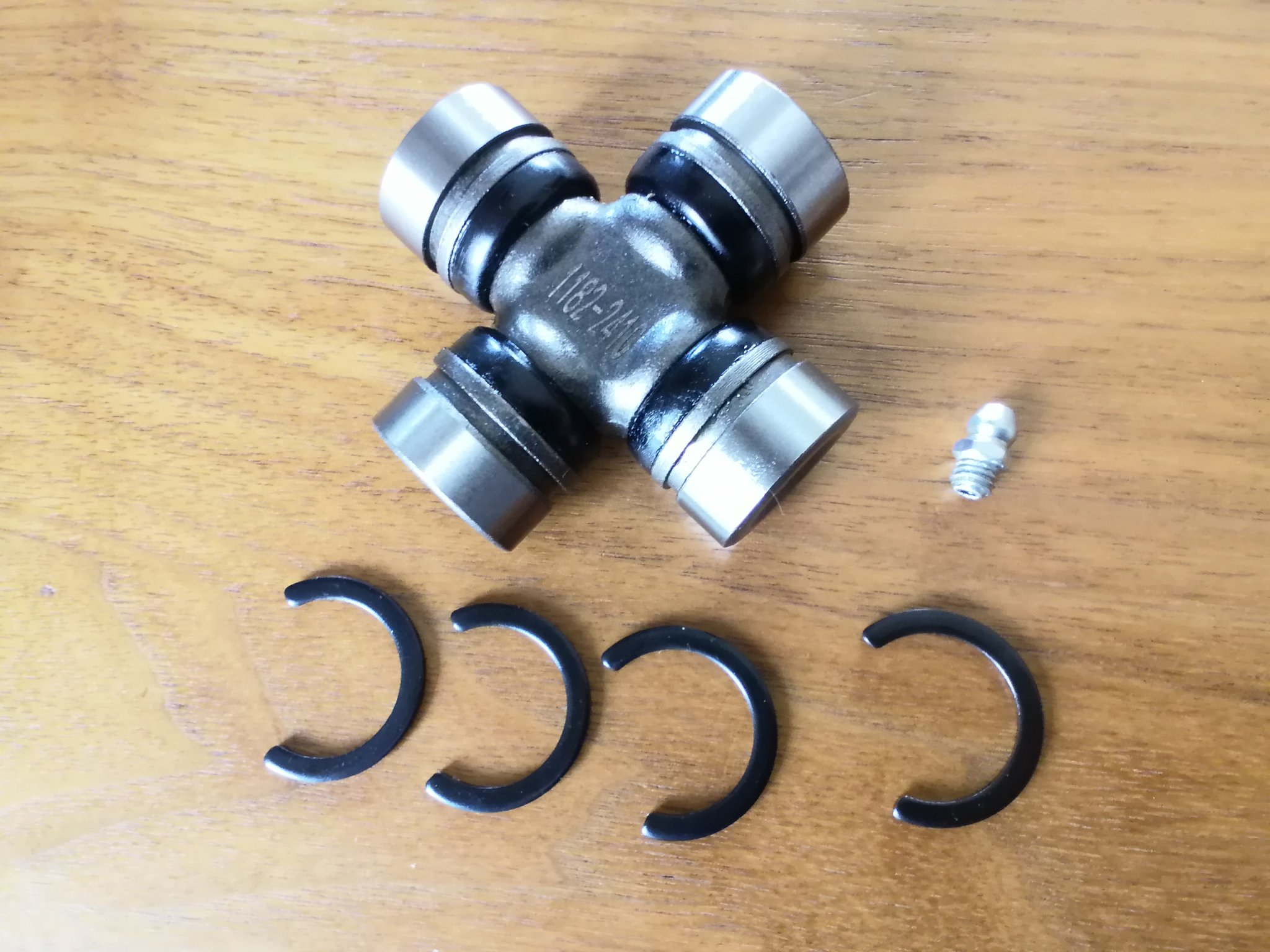

Insert the u-joint and secure with clip ring. I also replaced the grease nipples. The u-joint kits from Kubota were over $100 so I ordered some on the internet for under 10% of the Kubota price. I did not get them yet, so for the moment I painted the yokes and cleaned and greased the old u-joints, so they have to be replaced later.

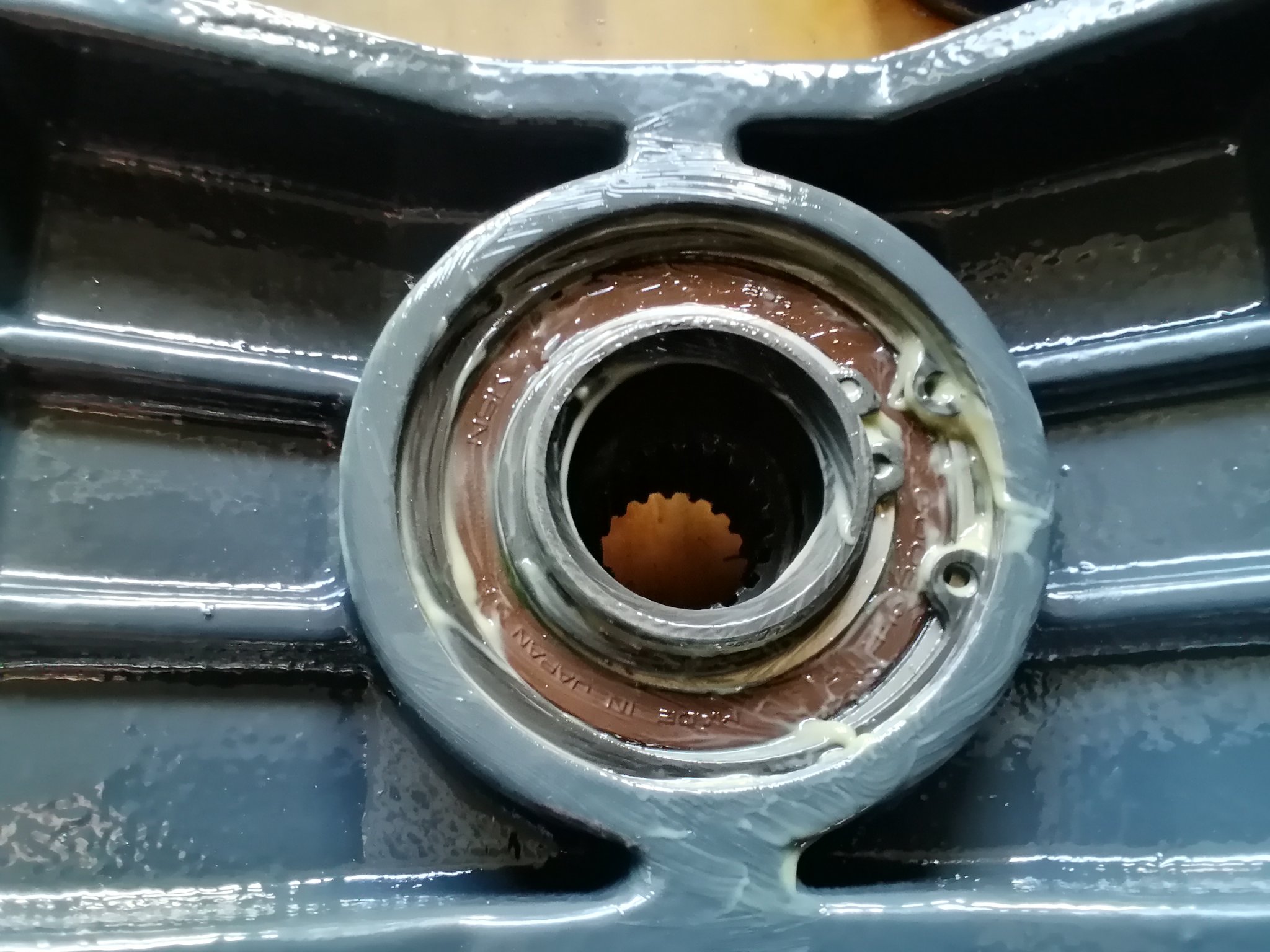

The drive shaft bearing is pushed into the king pin support and secured with the clip ring. I replaced one of the bearings that did not run smoothely after cleaning.

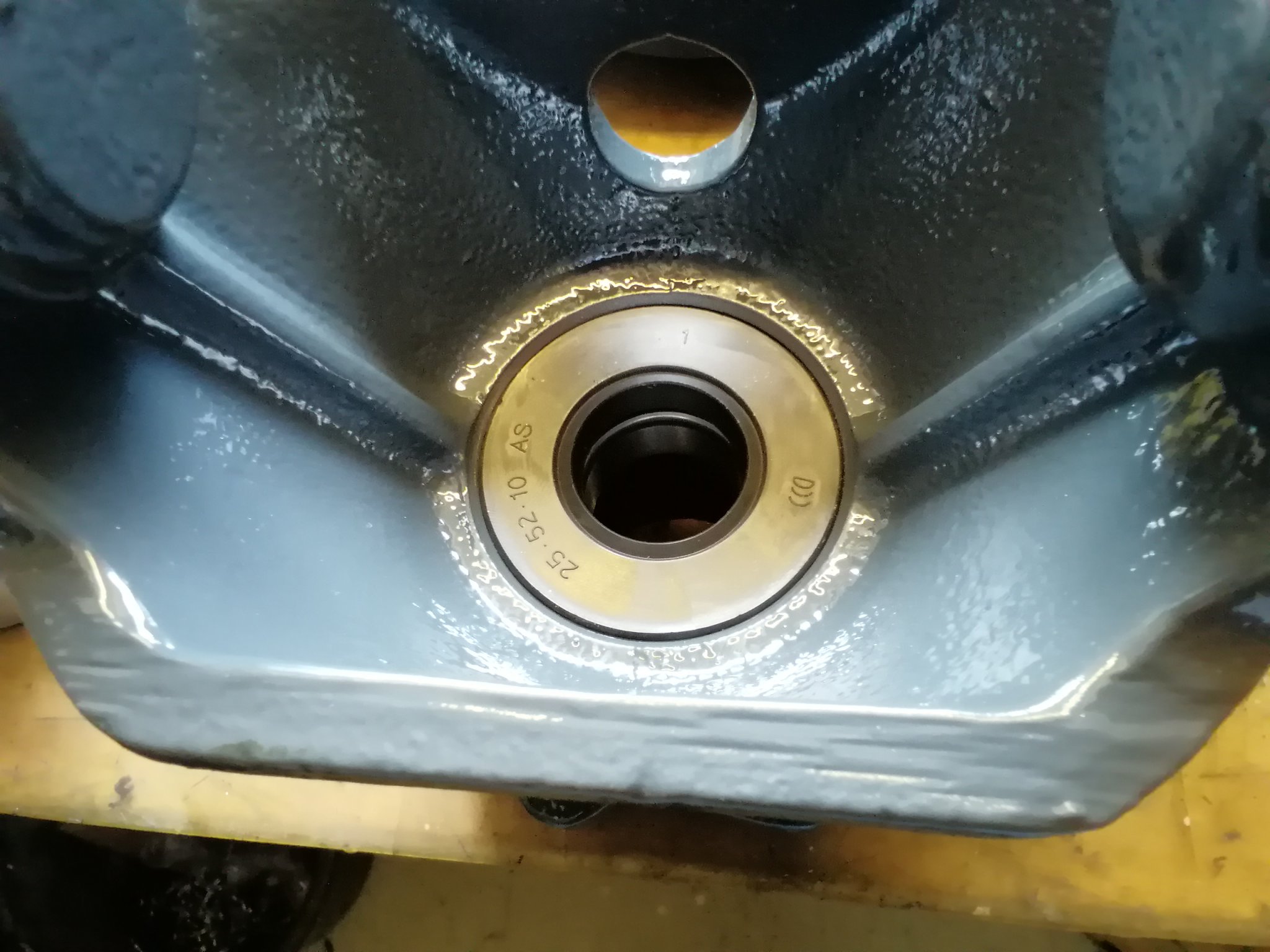

Then the oil seal ring is pressed in.

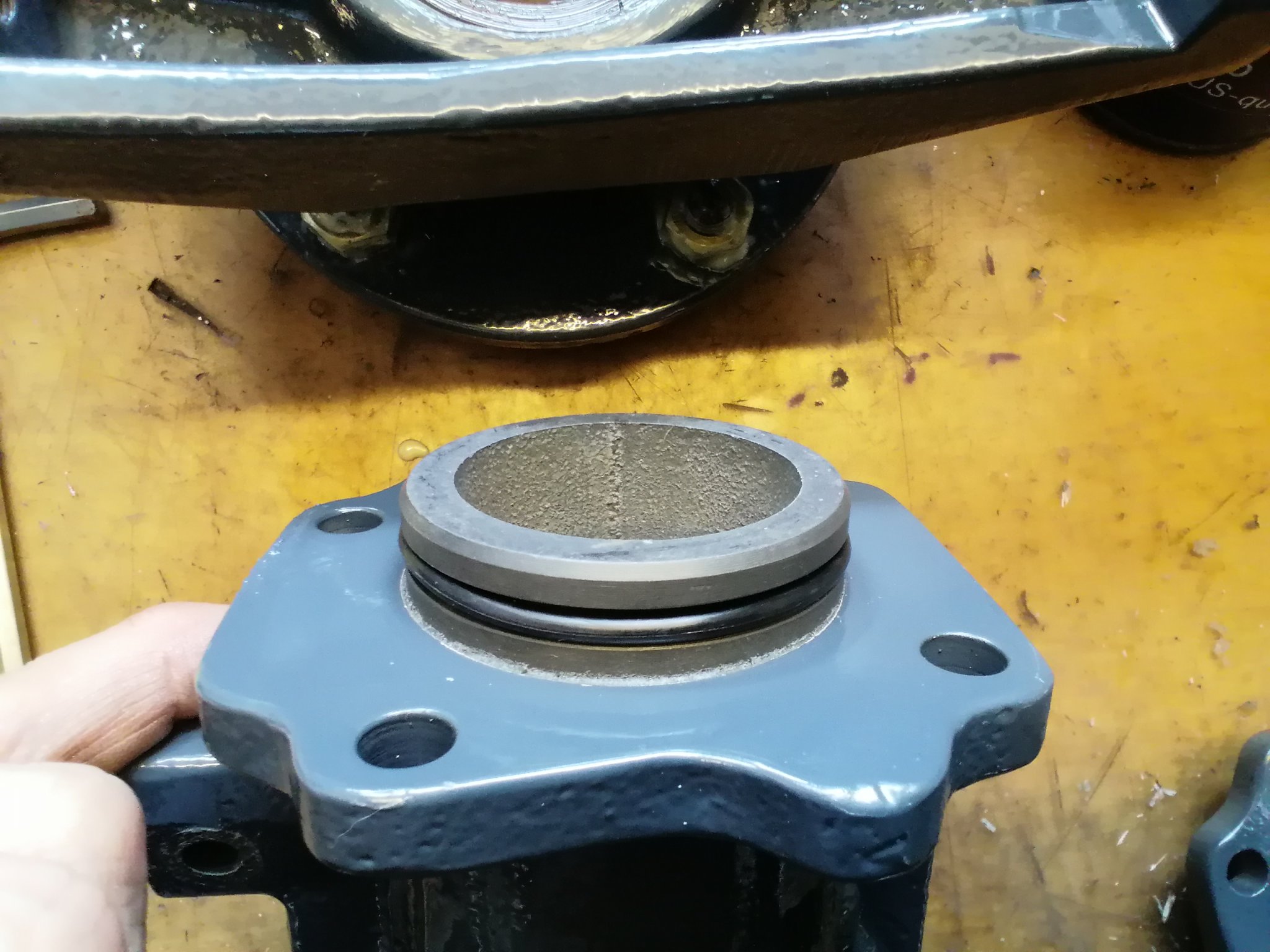

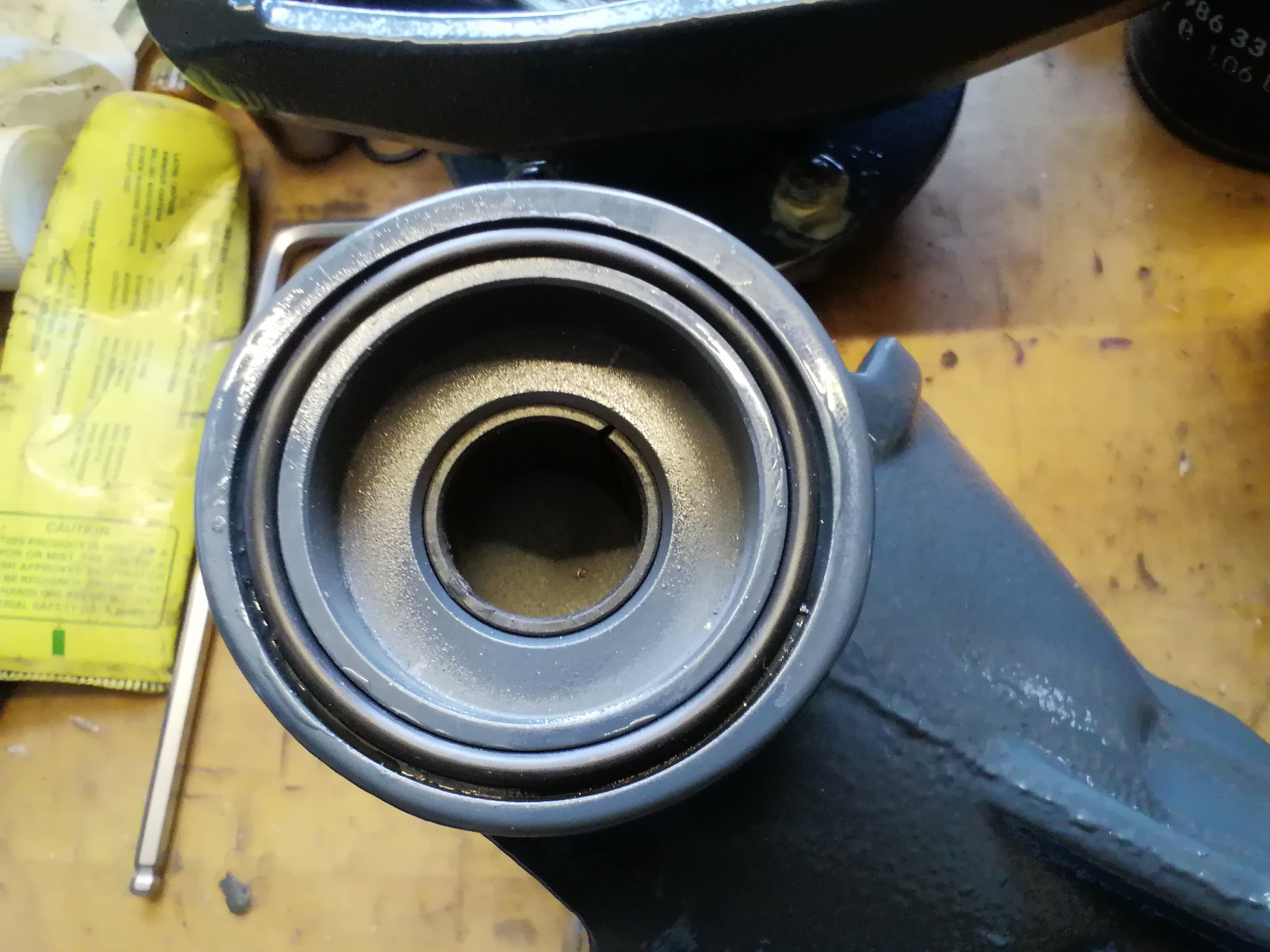

O-rings over the gear box side, into the groove around the thrust bearing and push in the knuckle bar and king pin plastic bushings.



[Hugo Habicht]

Rear wheel steering assembly (continued)

First we clean around the rear axle. Keep any dirt out, even tiny particles can cause damage to the hydraulic system.



Then we apply grease to the o-ring and the seal ring of the king pin support and to the axle end and slide the support over the axle and into the rear axle. Careful not to damage the oil seal. Insert 4 bolts and tighten with 26Nm (19lbft).

Insert stud into bottom inside thread of axle support. This stud has two different thread sizes, the standard M10 is going into the support and the M10x1.25 fine thread sticking out is for the nut.

Now apply grease to the thrust bearing and apply grease generously to the bushings top and bottom. Insert the thrust bearing from the bottom, wide part up. It should stick in the grease. Now put small o-ring onto king pin support and slide axle support over king pin support. The drive shaft u-joint has to slide over the axle. Take care that the small o-ring is not squeezed.

Now feel the alignment with a finger and adust thrust bearing and o-ring if required. Insert king pin and knuckle arm. Insert bolts and spring ring and nut over the stud and tighten with 52Nm (38lbft).



Right side is done same way.



Apply grease to all grease nipples.

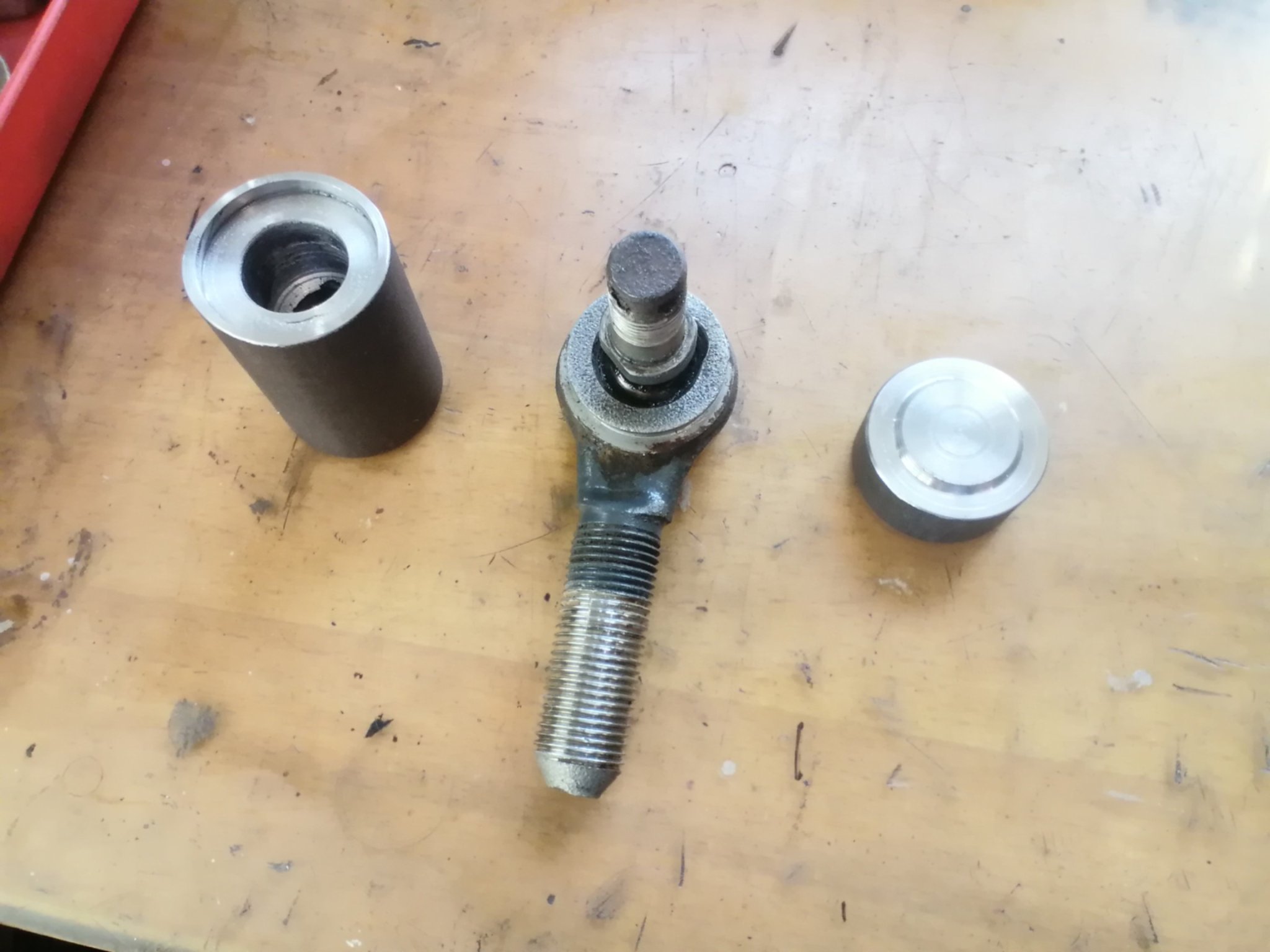

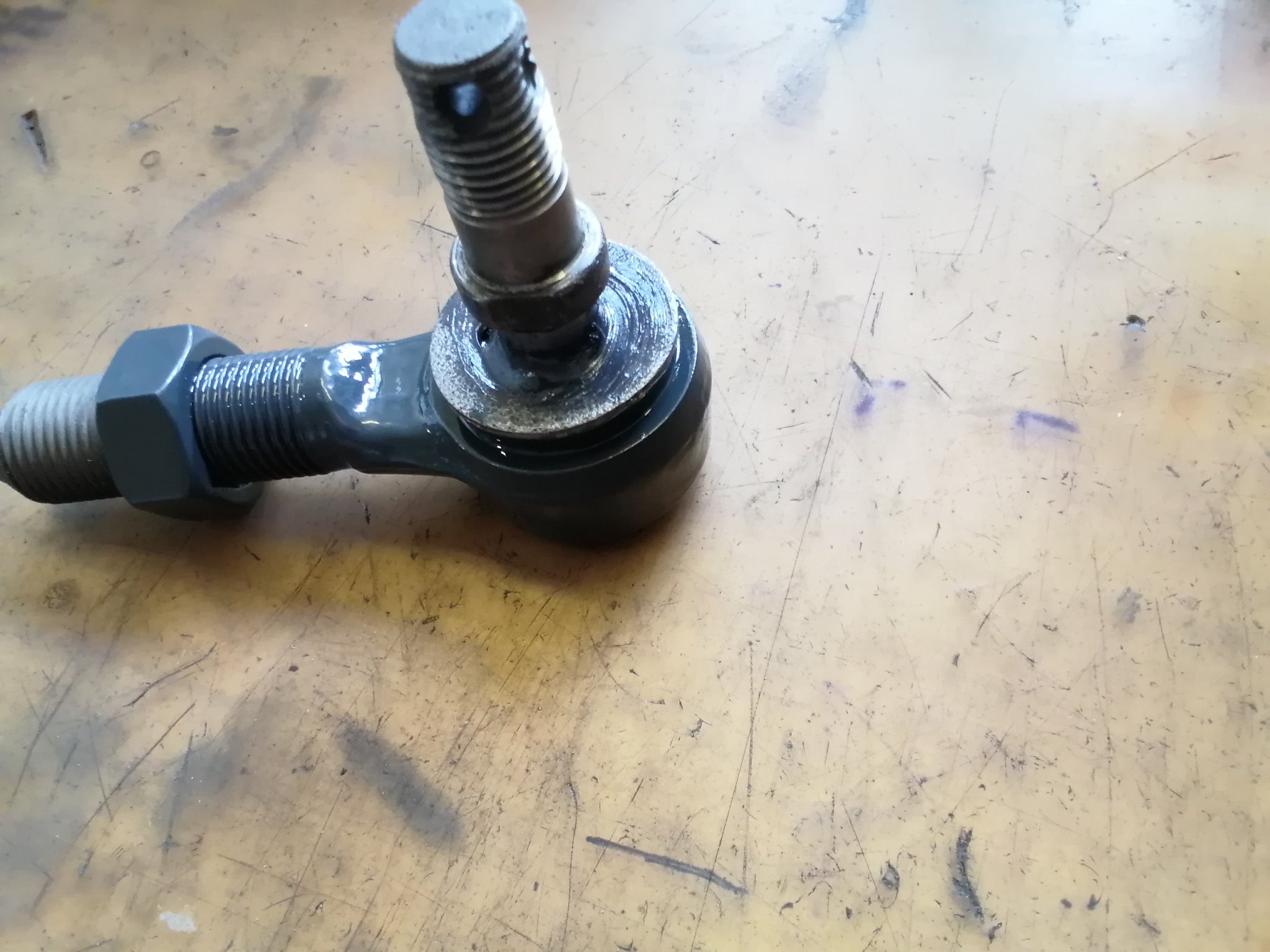

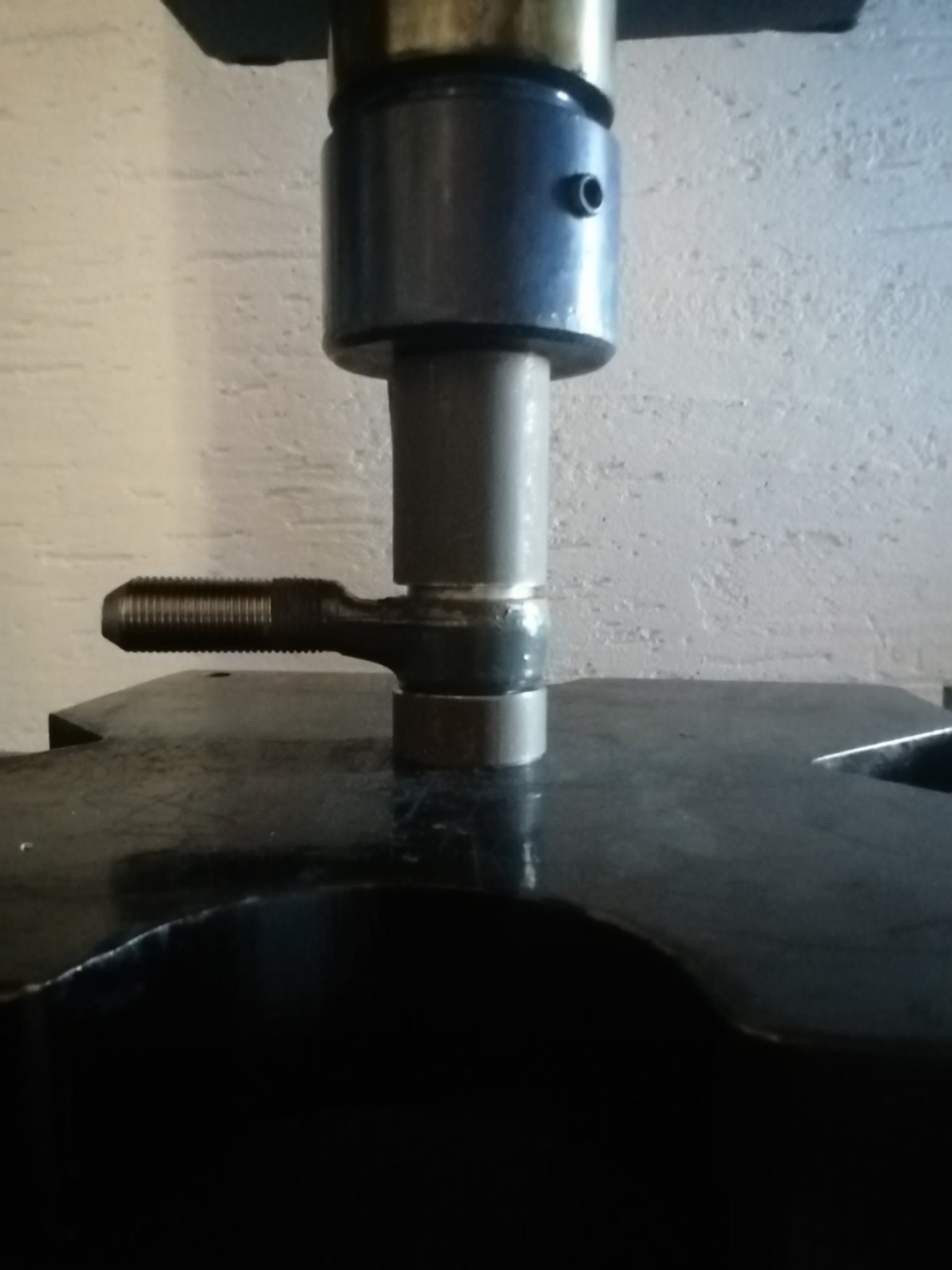

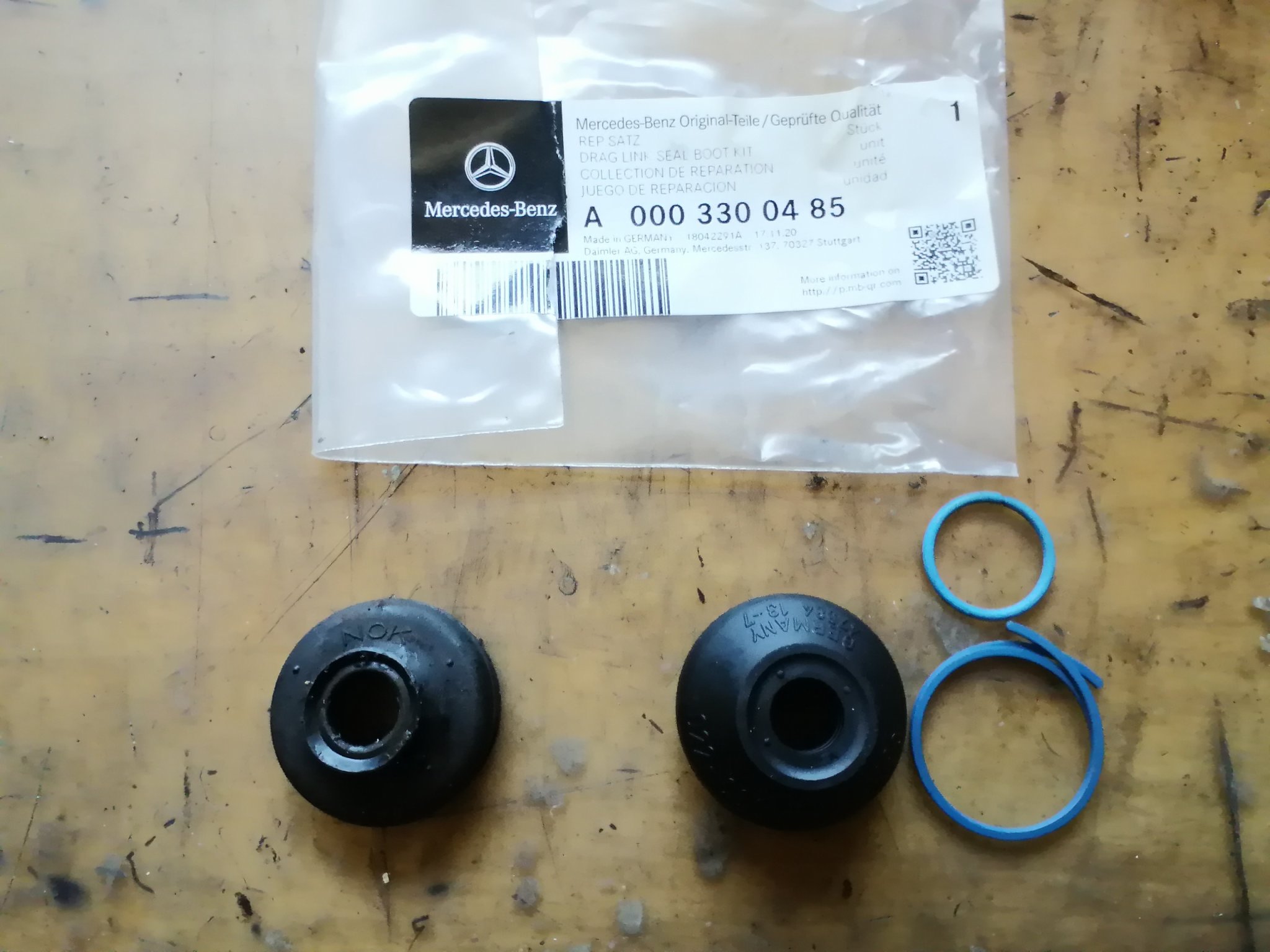

Attach tracking bar and tighten crown nuts and secure with split pin. Adjust tracking bar so that wheel hubs are parallel.

Attach wheels and steering bar. Adjust steering bar that all four wheels are parallel to the frame when steering wheel is in the middle.



Fill up HST hydraulic fluid (see servicing earlier in this thread). Check for leaks and after a short drive check and correct HST fluid level.

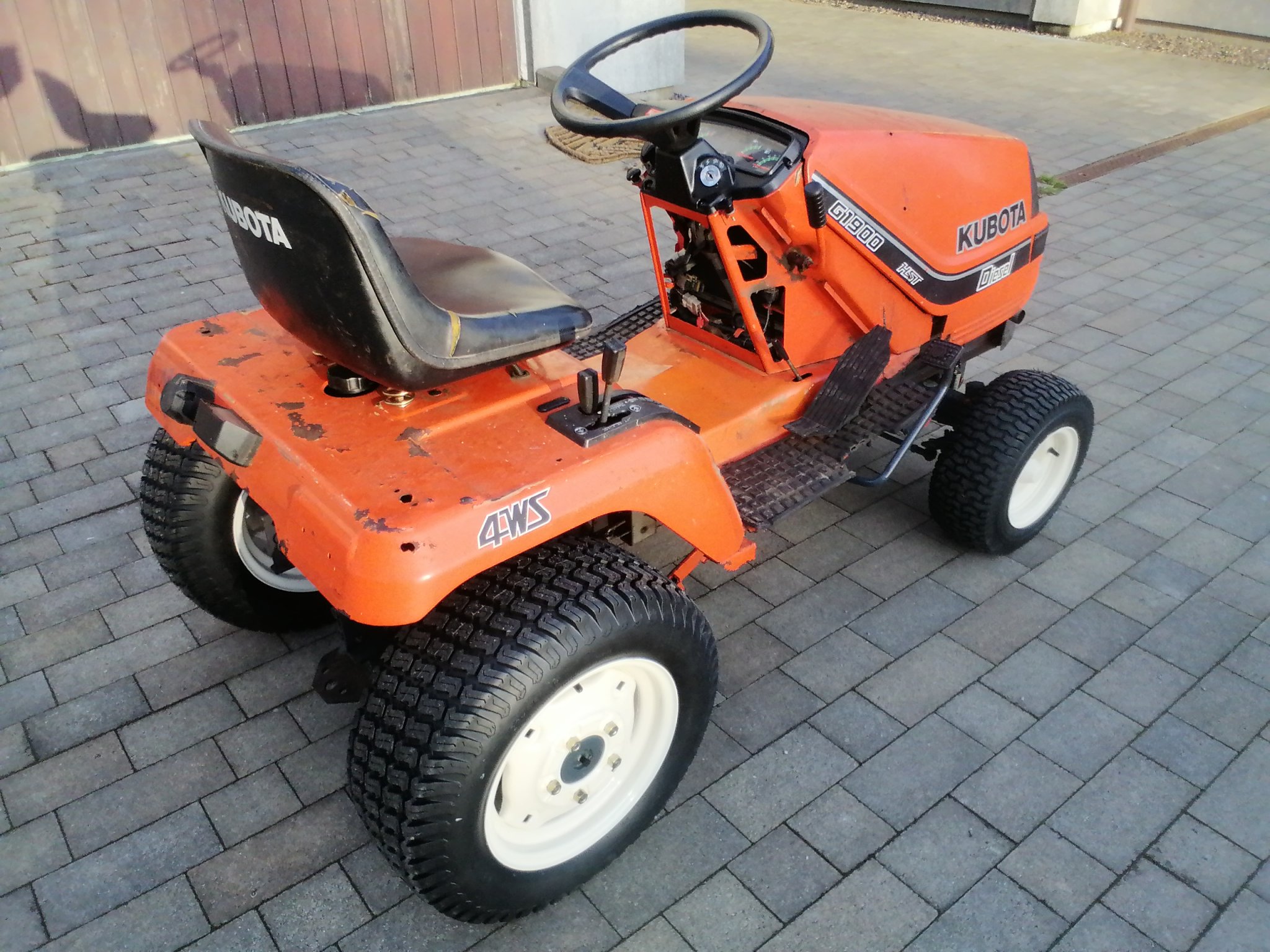

Looks a bit better already with the wheels done.

Technically the tractor is in order now apart from the steering box that is within specification but not good enough for my taste.

So replacing the floor panel that somebody chopped to bits to mount a cabin and restoring the panel parts is next.



[lmichael]

That thing is coming out incredible.
