So i call the local guys and they ask questions i don't know the answers to, like connector type, hose size.

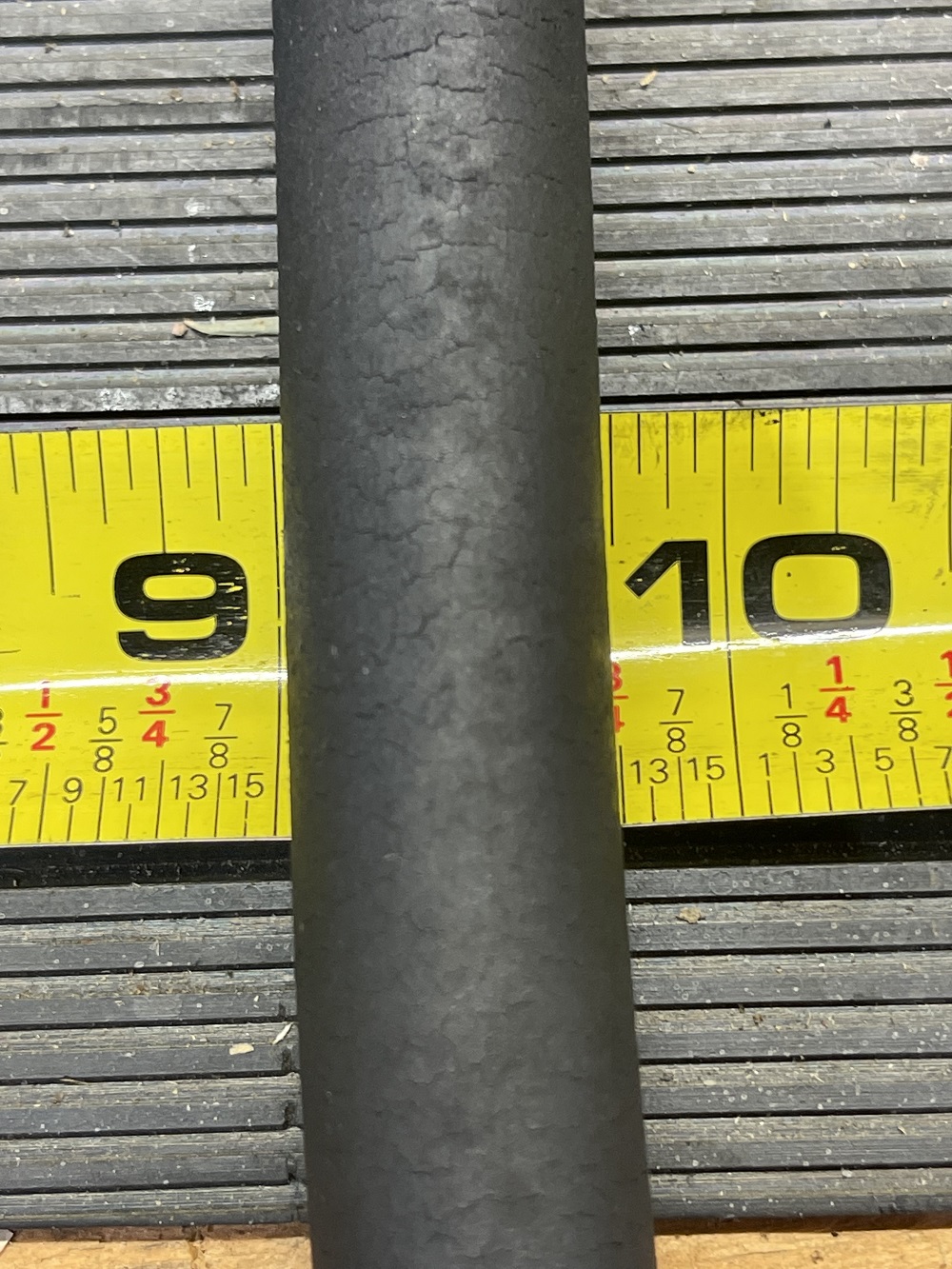

This one is 17 " long


View attachment 61383


View attachment 61384


View attachment 61385

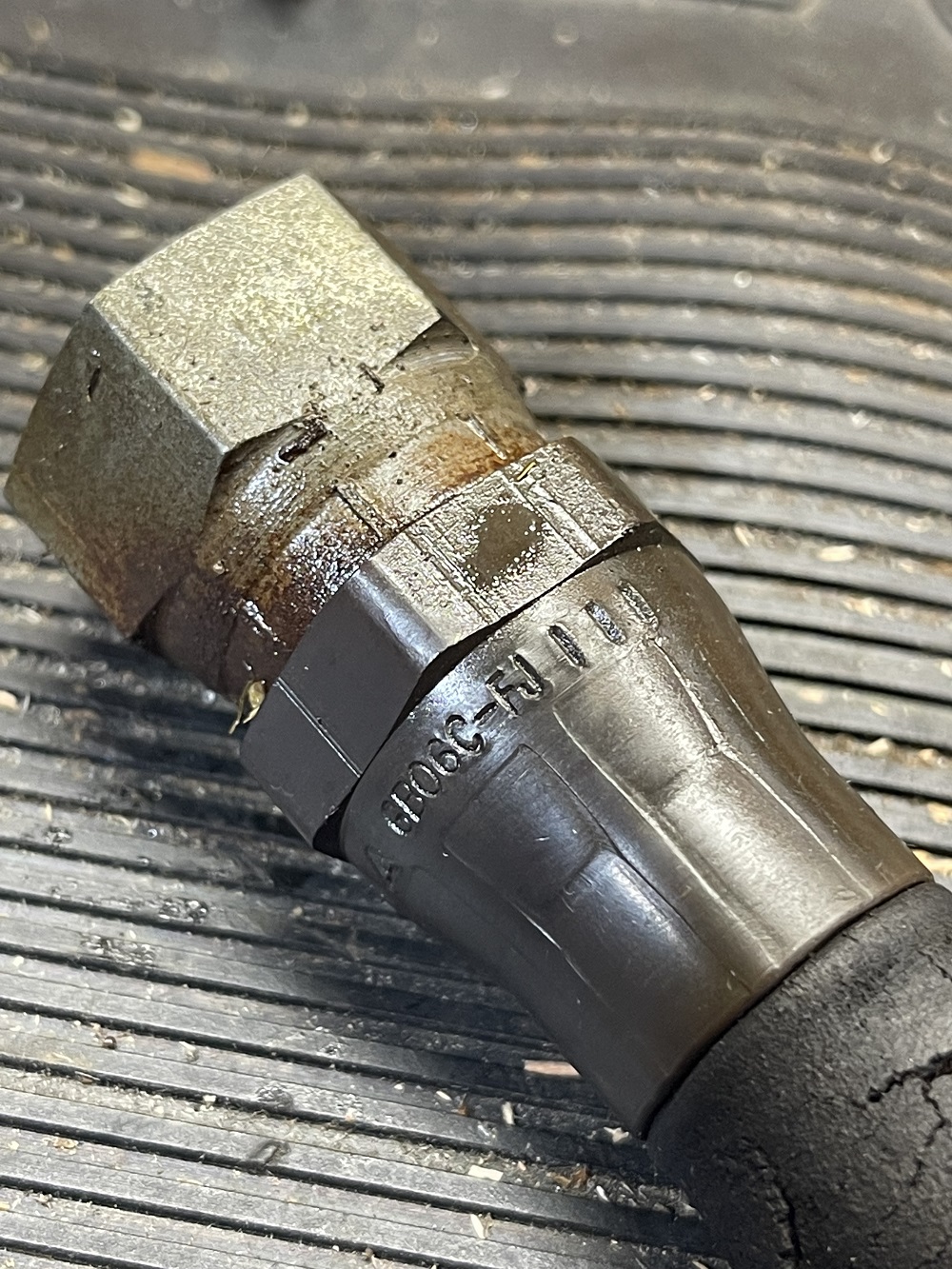

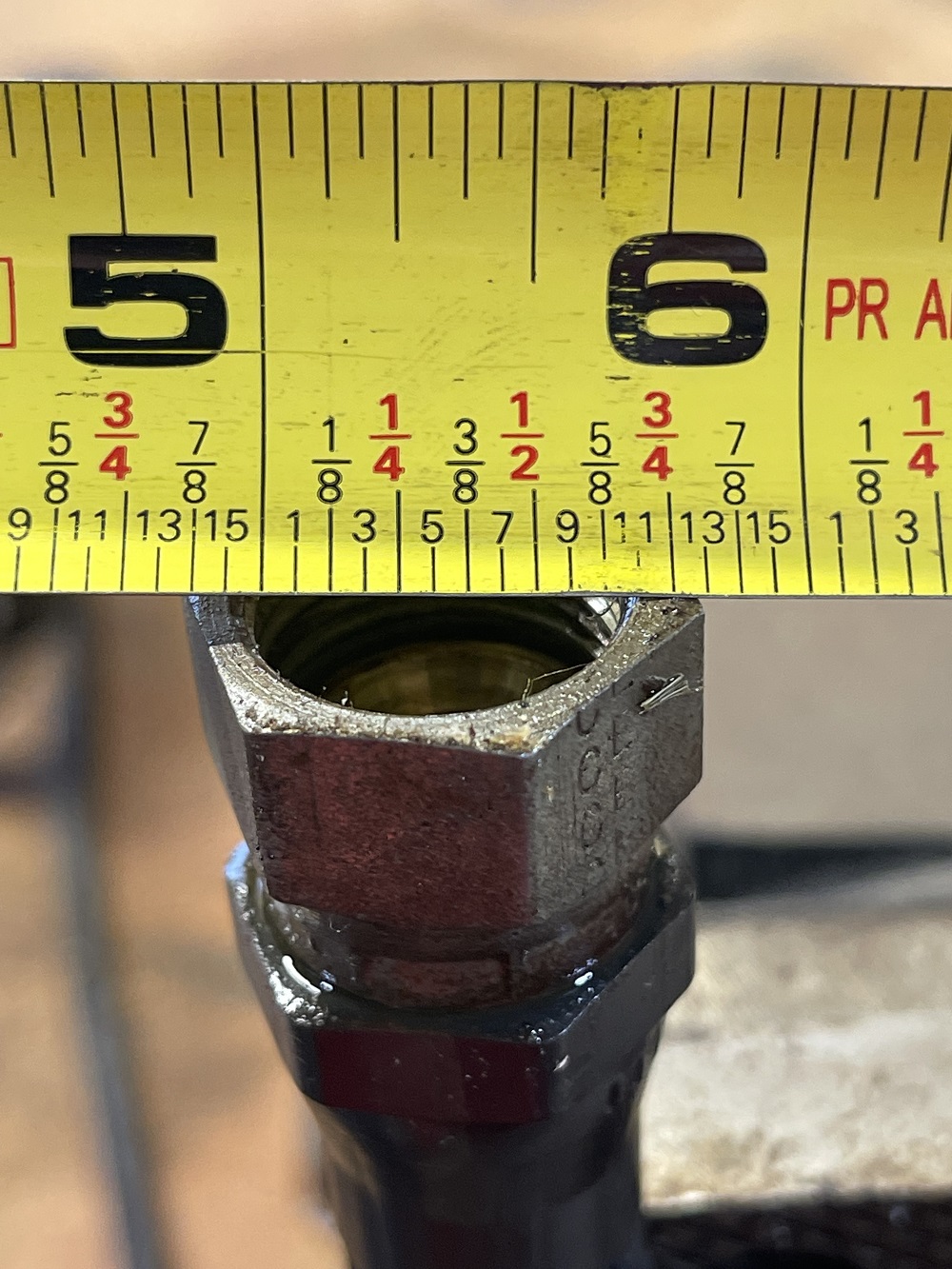

FJ stamped in the end fitting says iit female JIC swivel. Looks like 9/16 thread so that would be 3/8 inch hose with female JIC swivel end. Ask for R16 hose, I'd they have it, R2 is a perfectly acceptable alternative if they don't or they want too much. No need to buy anything more expensive.

JIC-06 wivel end fittings are $5 each and hose no more than $5 per foot.

You can buy pre-made R16 hose assemblies with JIC swivel ends from Surplus Center. Even with shipping probably cheaper than having them made.
