I have a L3240 with the standard glide shift transmission that I would like to add a rear hydraulic remote to. I am wanting to purchase the factory set-up that installs under the seat. This is for a tractor without a cab. Does anyone know the part # for the complete package that I would need for my tractor? Thanks for any information.


Schmitty

Member

Equipment
L4740, grapple, forks, box blade
Mar 25, 2018
45
17
8
Madison, WI

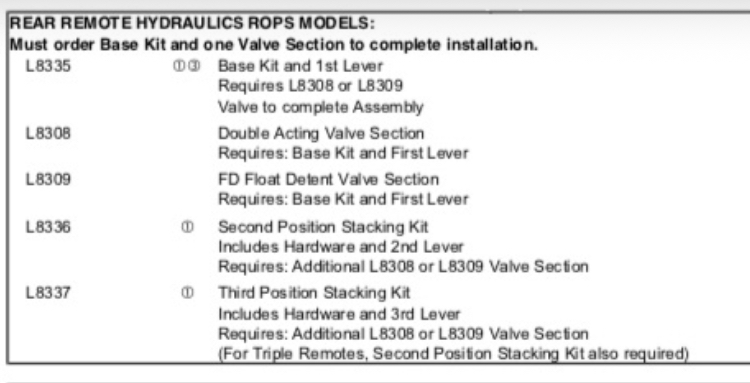

Where do you plan on buying this from? Messicks/Coleman or local? Either will be able to get you the right parts through the whole goods dept. My L4740 looks like it has the same parts needed as yours. I got the base (p/n L8335 aka TD170-98151) and a float valve (p/n L8309 aka (TD170-98161)). You could get a non-float valve, instead (p/n L8308 aka (TD170-98171)).

I also got the second position kit (p/n L8336) and a second float valve for about $1,400-1,500 shipped.

All this info is on the illustrated parts website through Kubota: here, under the "OPTION" drop down in the T15000 and T15001 sections. There may be slightly different parts needed, depending on the year or version of your tractor, so have your S/N handy if you call a dealership.


farmboykj

New member

Equipment
G5200 ; ZD326
May 16, 2016
5
0
1
Central, Indiana
Where do you plan on buying this from? Messicks/Coleman or local? Either will be able to get you the right parts through the whole goods dept. My L4740 looks like it has the same parts needed as yours. I got the base (p/n L8335 aka TD170-98151) and a float valve (p/n L8309 aka (TD170-98161)). You could get a non-float valve, instead (p/n L8308 aka (TD170-98171)).

I also got the second position kit (p/n L8336) and a second float valve for about $1,400-1,500 shipped.

All this info is on the illustrated parts website through Kubota: here, under the "OPTION" drop down in the T15000 and T15001 sections. There may be slightly different parts needed, depending on the year or version of your tractor, so have your S/N handy if you call a dealership.
Thank you very much. This helps a lot!
