The tractor starts fine however within a second of shifting the shuttle shifter into fwd or rev, you hear a click and then the tractor dies (fuel shutoff solenoid?). I've check the seat safety switch. I've looked all over for a safety switch on the shuttle shifter (in the transmission?)

It was purchased in 2003. Serial # 36106. Does anyone have an electrical diagram?

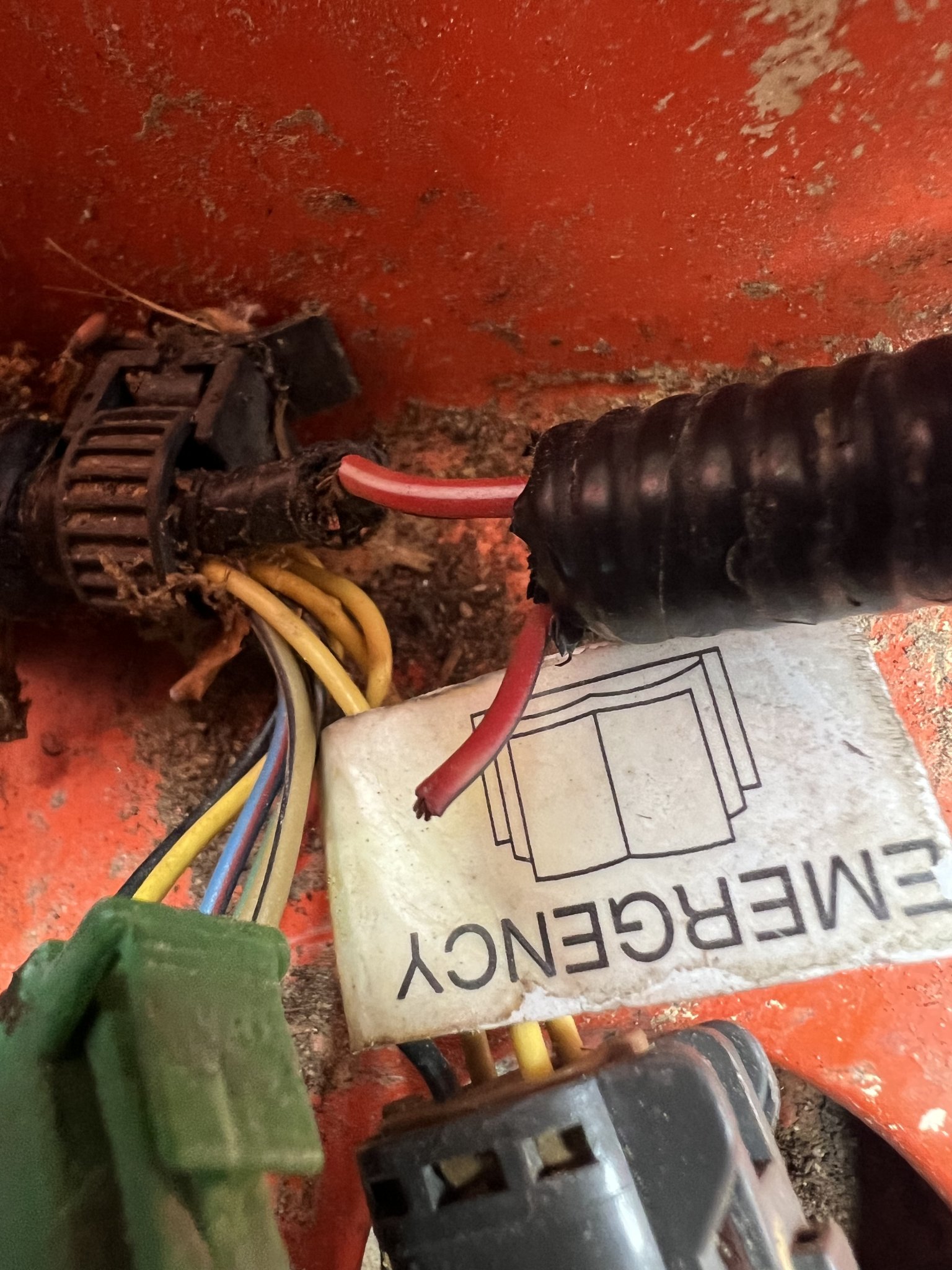

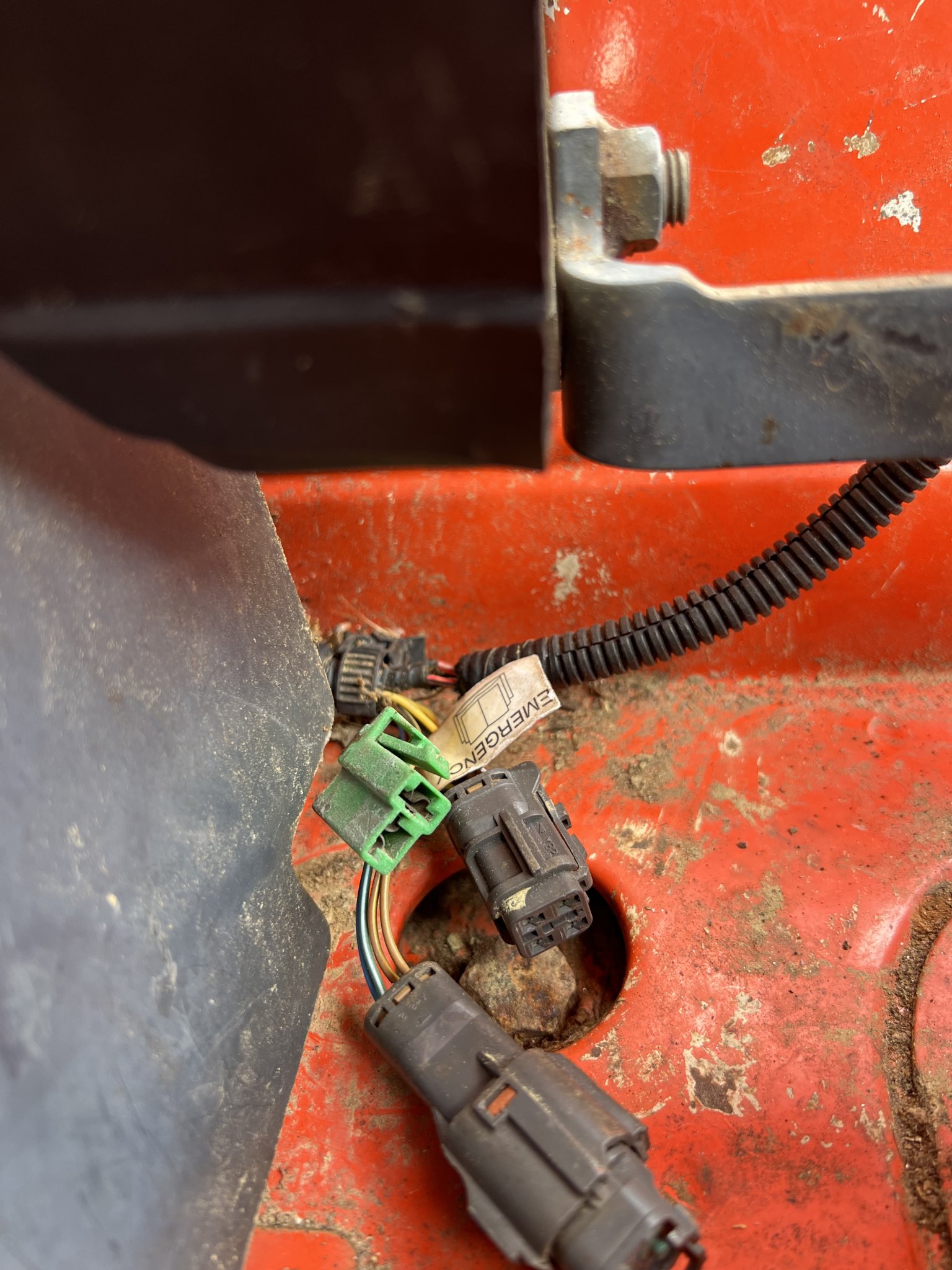

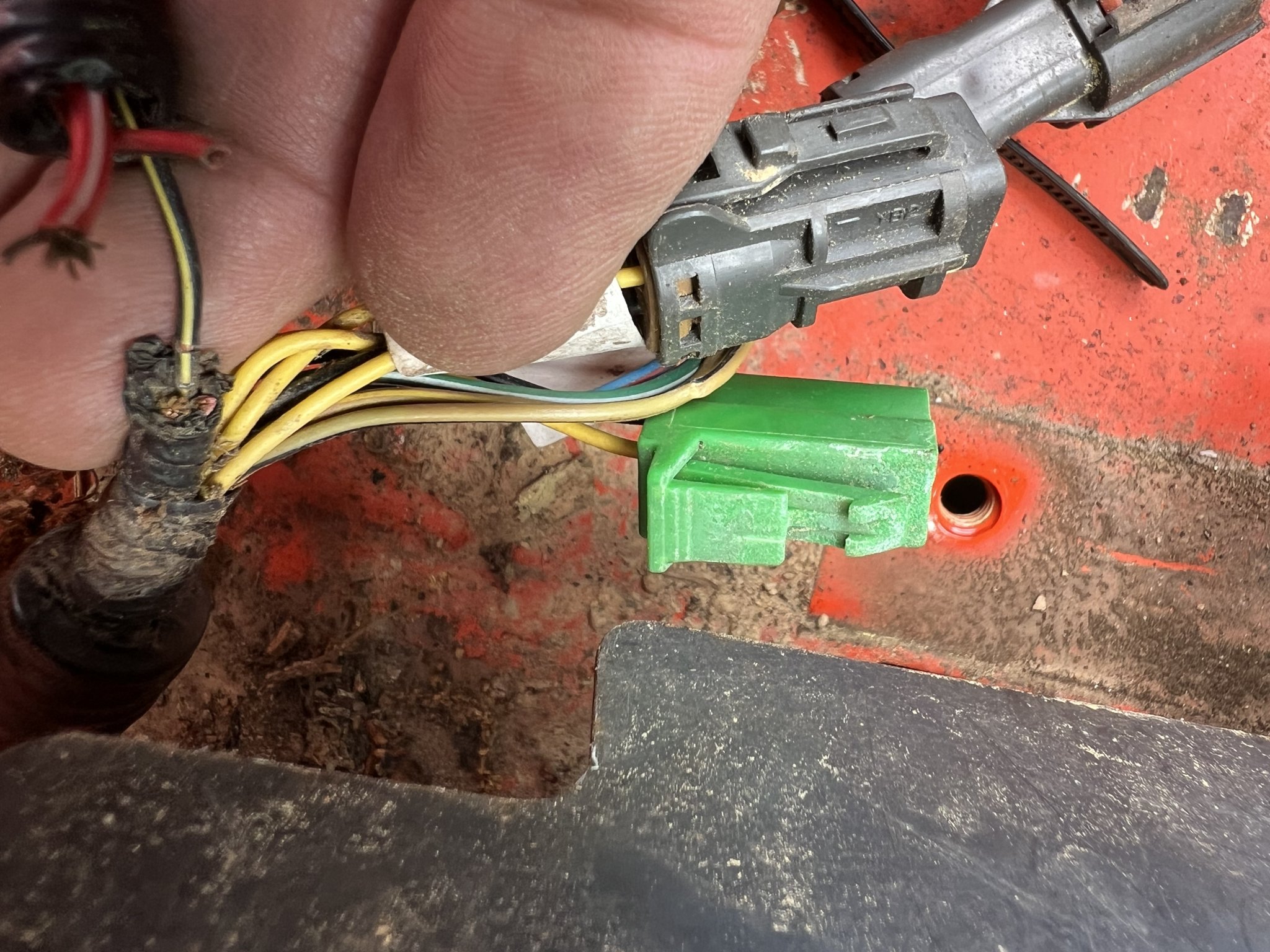

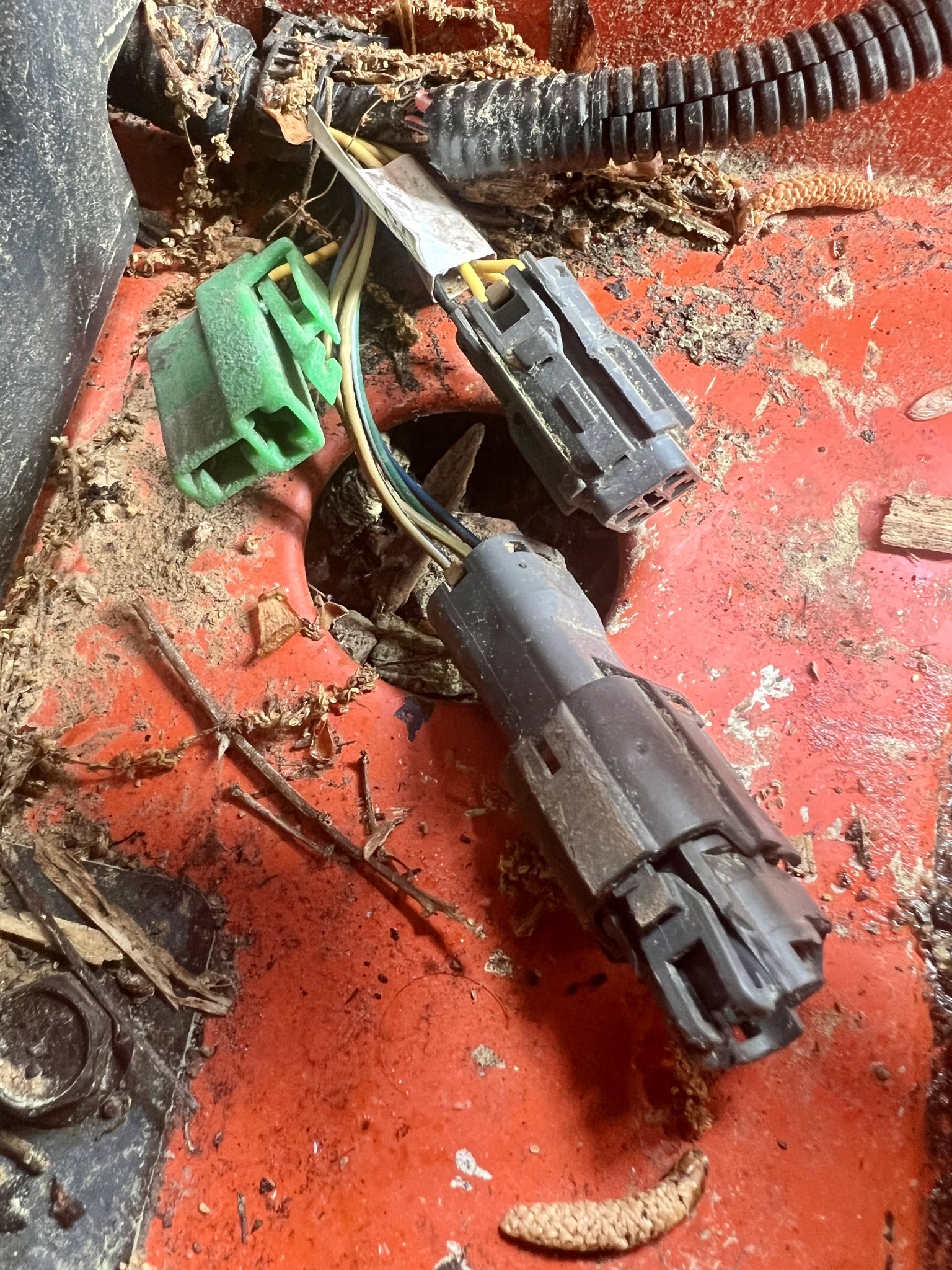

I have 3 "extra" electrical plugs coming off the wiring harness from under and to the rear of the seat. Is this an optional wiring plug for an air seat? It appears to can a dummy cap that has been damaged (see picture). Is this a jumper?

Thanks in advance for any assistance.



[PoTreeBoy]

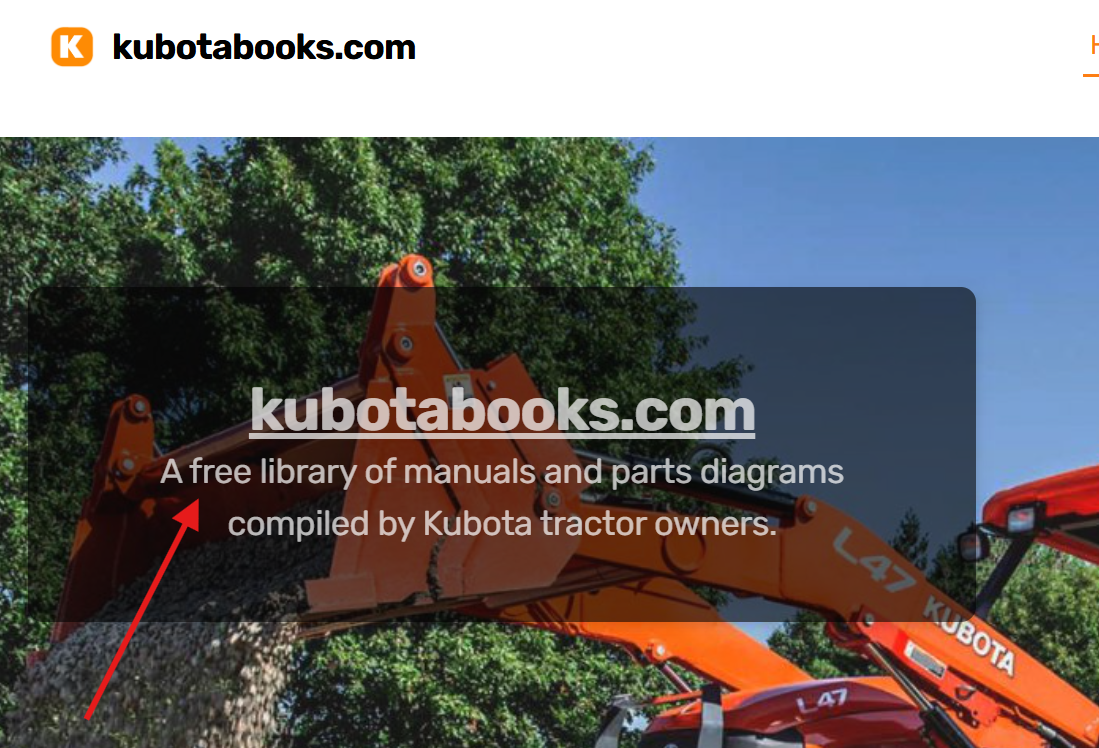

There's a free pdf WorkShop Manual available at KubotaBooks. Toward the end is the electrical section. Make sure you're on the GST part. Your fuel solenoid has two coils, a pull-in coil is energized with the starter, the hold coil is energized anytime the keyswitch is on. Any shutdowns on your tractor remove power from the hold coil, shutting off the fuel.

Do those black connectors plug together?



[derrick326]

No. They are not compatible with each other.



[derrick326]

Thanks for the info. However, the "free" manuals are not free. Be careful how things are represented. It's about being honest. "Fake news" and deceit are everywhere.



[North Idaho Wolfman]

Thanks for the info. However, the "free" manuals are not free. Be careful how things are represented. It's about being honest. "Fake news" and deceit are everywhere.

Kubotabooks is absolutely 100% free unless you would like to donate to them.
No fake news or deceit there.



[derrick326]

Kubotabooks is absolutely 100% free unless you would like to donate to them.
No fake news or deceit there.

Kubotabooks is absolutely 100% free unless you would like to donate to them.
No fake news or deceit there.

Unfortunately the forum is populated with pop-ups that lead you to sites where they are collecting fees for this free material.



[North Idaho Wolfman]

Unfortunately the forum is populated with pop-ups that lead you to sites where they are collecting fees for this free material.

I have no clue what your getting at?
@PoTreeBoy said you could get the WSM from Kubotabooks, that wasn't a popup?

I sent you the WSM, I didn't get any money for doing that, so read it and figure out your issue.



[PoTreeBoy]

Thanks for the info. However, the "free" manuals are not free. Be careful how things are represented. It's about being honest. "Fake news" and deceit are everywhere.

When you go to their site, hit the M7 picture and it takes you to the directory. Yeah, there are a lot of pop-up ads, but you don't have to buy or pay anything. There are other sites that charge $, spam you and don't deliver.

You can also take a thumb drive to your dealer, if you're on good terms, and he/she may provide one free or reasonable. Otherwise, you can buy a paper one for ~$100.

If you're referring to copyright issues, I don't think Kubota is too worried about it, or they would go after these sites and shut down their dealers. Oh, you may be able to register at myKubota and have it available.

Edit: And flashback to perusing the Sears Roebuck catalog as a teenager and enjoy the lingerie pics.
