Kubota L47 Stalling out issue

smt168

New member

Equipment
Kubota L47 Backhoe Loader
Aug 11, 2024
1
0
1
Malvern, PA
I have a 2019 Kubota L47 backhoe loader with about 280 hours. A couple months ago I had an issue with water in my fuel tank due to condensation. I replaced the fuel filter and bled the system and it started up and ran just fine for a few hours.

It sat for about 3 weeks. I went out this weekend to start it up. It started right up and then conked out in 5 seconds. I repeated this same thing about 5 more times. Each time it started and then stalled out within seconds.
So far I have checked the fuel lines for blockages, replaced fuel filter, bled the fuel system of air, checked fuel pump for proper operation, removed all fuel and replaced with new diesel.

Here is a video of what it is doing: https://youtube.com/shorts/q8Zc4mNLwK4

What am I missing? Any help is greatly appreciated.


Edke6bnl

Active member

Equipment
B7800 Kubota, case 1840 Skidsteer Ford 3500
Mar 31, 2022
208
100
43
Agua Dulce, California
My key switch went bad on my b7800 and it would go off as i released the from starting. I guess another thing x ould be the shutdown assembly.


North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
29,425
5,700
113
Sandpoint, ID

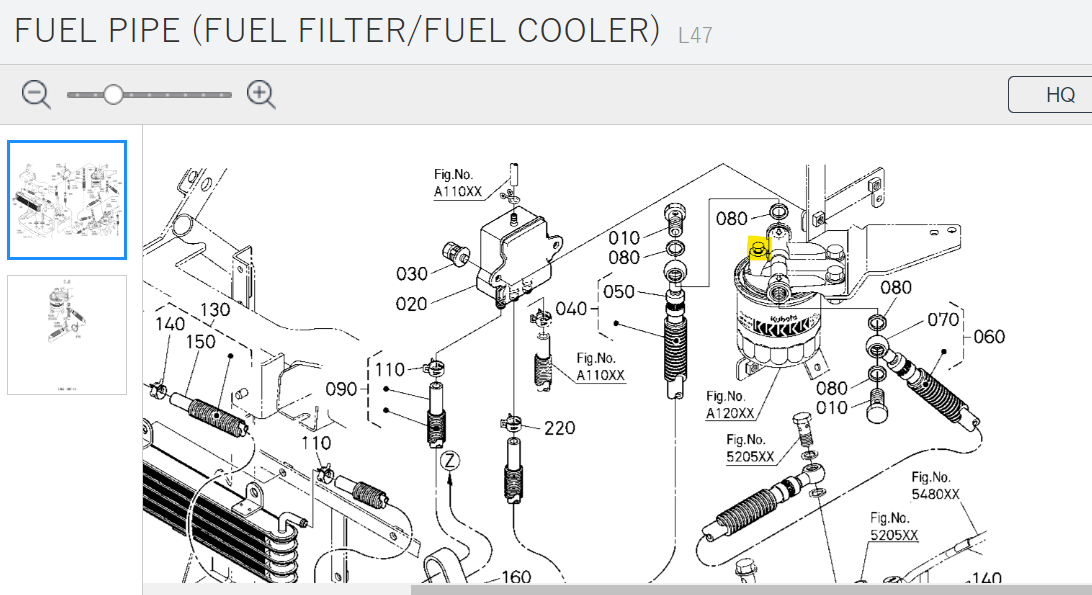

Loosen this purge plug and turn the key on do you get pulsed fuel flow out of it?



North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
29,425
5,700
113
Sandpoint, ID
My key switch went bad on my b7800 and it would go off as i released the from starting. I guess another thing x ould be the shutdown assembly.
An L47 is 100% electronic fuel system, not anything like an old B7800 mechanical fuel system, there is no shut down assembly.
