First "actual project" with the new CNC plasma cutter.

[Runs With Scissors]

Although it’s not huge deal, I got my first ever “CNC Plasma cutter” project finished, from “soup to nuts”.

I decided that the laptop stand I ordered with the machine needed an “upgrade”

I am hopelessly addicted to using a mouse, so not having one when working was not going well.

So yesterday, I decided that remedying that was going to be my first project.

Since I unloaded my first “steel order” I was ‘chomping at the bit’ to cut something out.

I drew it out, and after the guys on the Langmuir Forum "straightened me out" and 'learned me' how to start in the corner of a sheet, here is the first project cut.

Took about 75 seconds to cut it out.

What a "game changer"

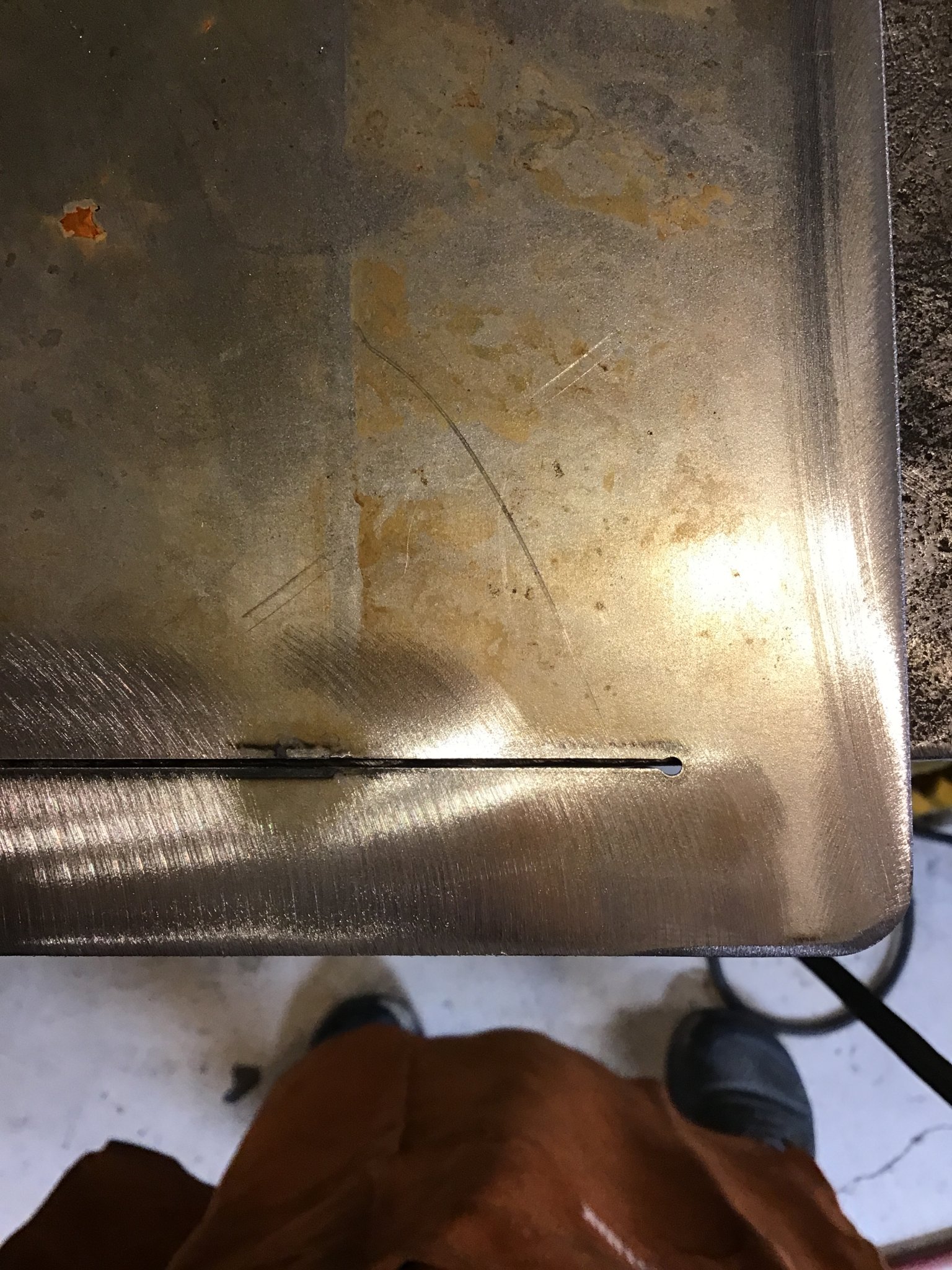

I gotta figure out what I screwed up, but the holes turned out "poor"

They are "located" properly, but the"lead out" should have been eliminated(?)

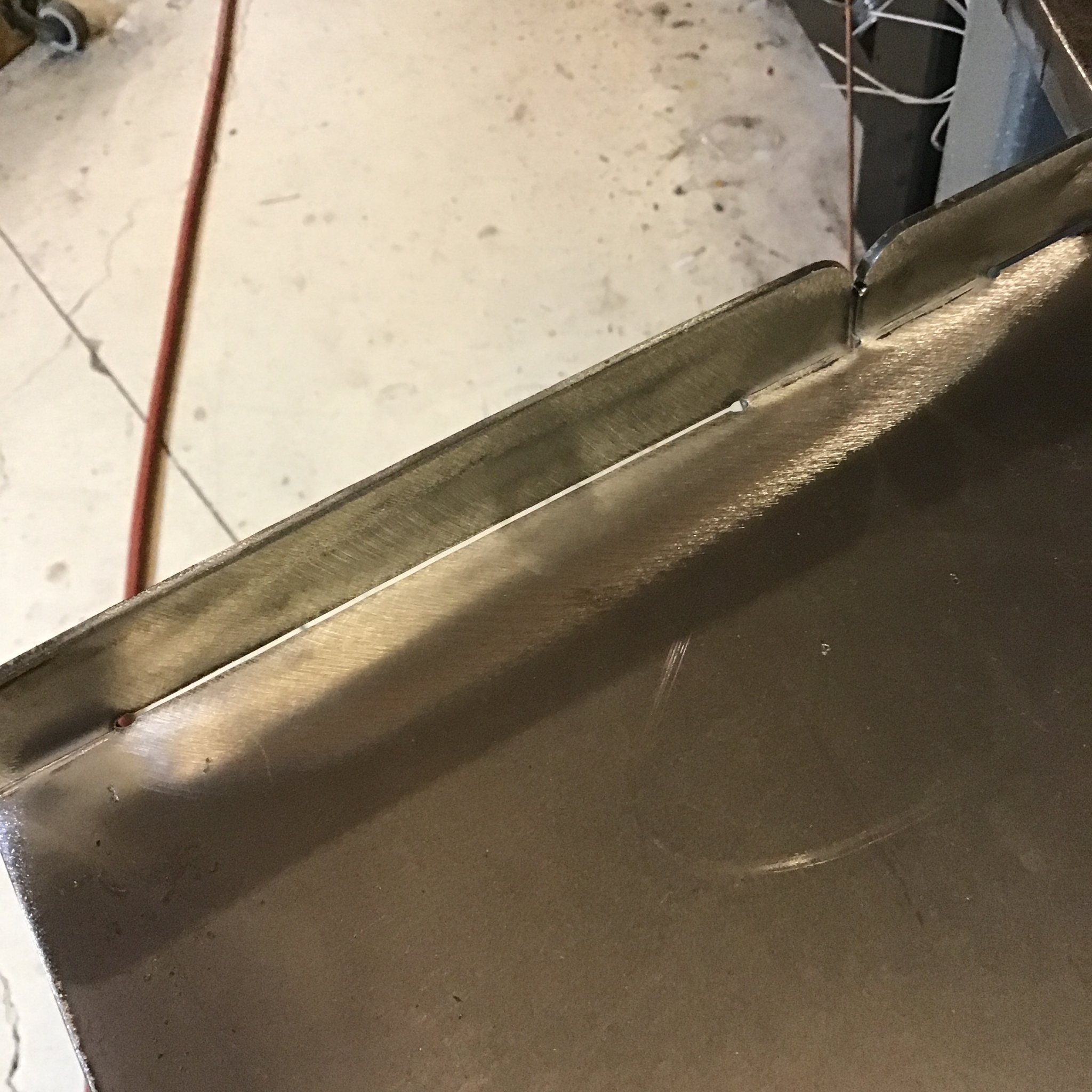

Turns out to be a little to large for any 'brake' I have, so I just clamp it to the edge of the welding table and "have at it" with the ball peen.

But those holes are mocking me........

So I decide to break out the TIG machine and grinder.

and a little work with the countersink, and the holes are "good nuff"



[Runs With Scissors]

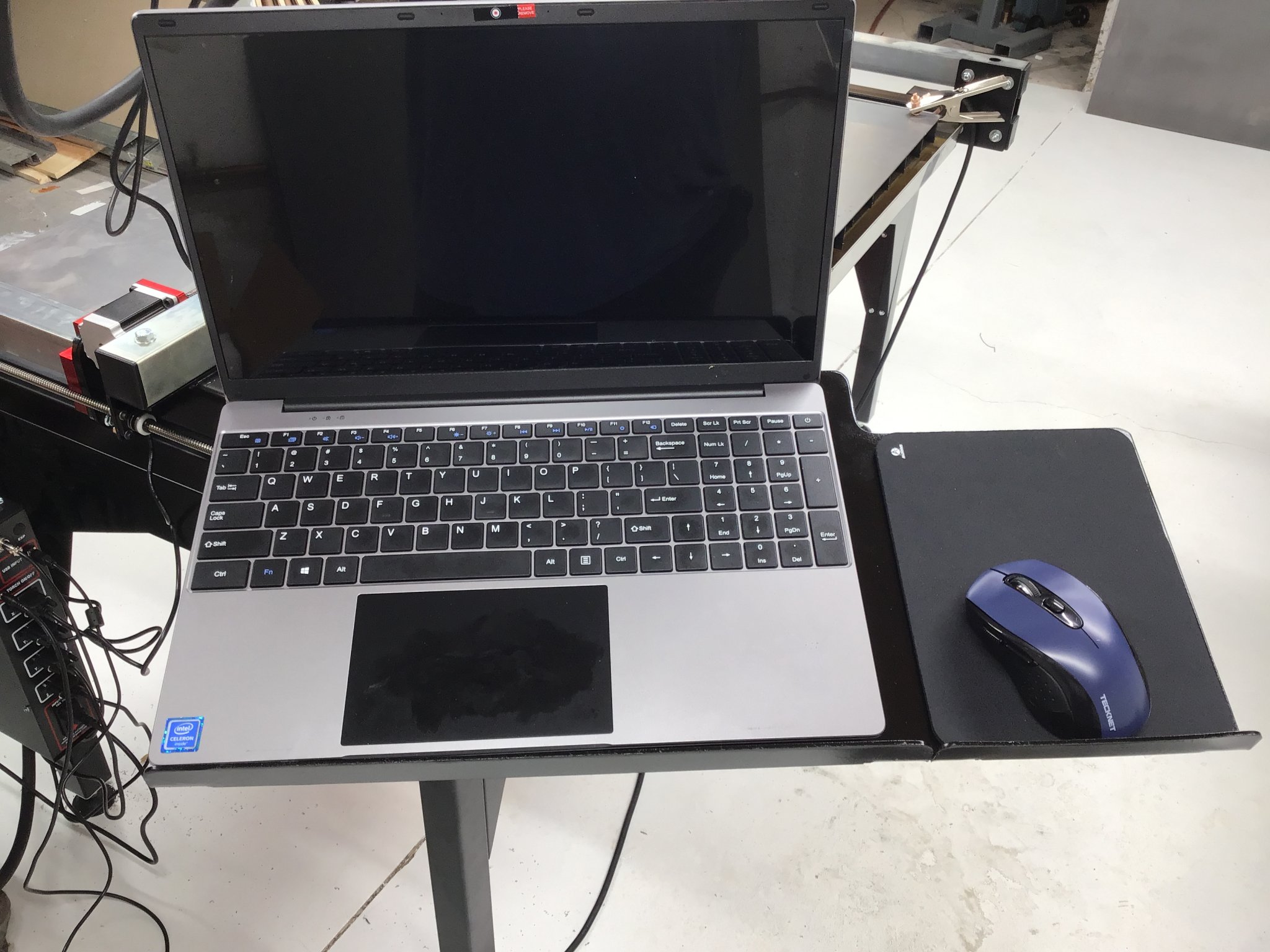

Ahhhhhh......there we are. Life is good with my mouse again.

The end.



[fried1765]

Ahhhhhh......there we are. Life is good with my mouse again.


View attachment 134721


View attachment 134722


The end.

If that work is less than 15" wide, and 1/4" inch or less thick, you could use a SWAG 20 ton finger brake.
Max width is 19" at 3/16" thick.
Can go up to 3/8" thick, but width decreases significantly.
Kinda looks like your piece is to long for the SWAG though.



[D2Cat]

I don't know what you're making, but I'm glad to see you are able to "tinker" with your present stage of health!



[Runs With Scissors]

I don't know what you're making, but I'm glad to see you are able to "tinker" with your present stage of health!

Thank you sir.

Just sitting around is/was killing me.

I had to wait till the old lady went to the store and then I was able to go down stairs,........ but I lost track of time and she walked in just as I fired up the angle grinder.........

The lecture on "Infections, and the dangers of working 'one armed and alone' " was both interesting and informative though.



[Oleracer]

Thank you sir.

Just sitting around is/was killing me.

I had to wait till the old lady went to the store and then I was able to go down stairs,........ but I lost track of time and she walked in just as I fired up the angle grinder.........

The lecture on "Infections, and the dangers of working 'one armed and alone' " was both interesting and informative though.

They always catch us….. Nice new toy.
