bx 25 4wd

[Eric michaud]

i have a bx25 2011 with 550 hrs. for 4 weeks ago i begin to have a 4wd issue. for keep in 4wd in need to keep a pressure on 4wd arm. problem with a gear??



[Eric michaud]

arm is shift lever 4wd.



[Eric michaud]



[North Idaho Wolfman]

i have a bx25 2011 with 550 hrs. for 4 weeks ago i begin to have a 4wd issue. for keep in 4wd in need to keep a pressure on 4wd arm. problem with a gear??

Check the linkage thoroughly first!



[Eric michaud]

parts 50 and 60 is for?

Check the linkage thoroughly first!

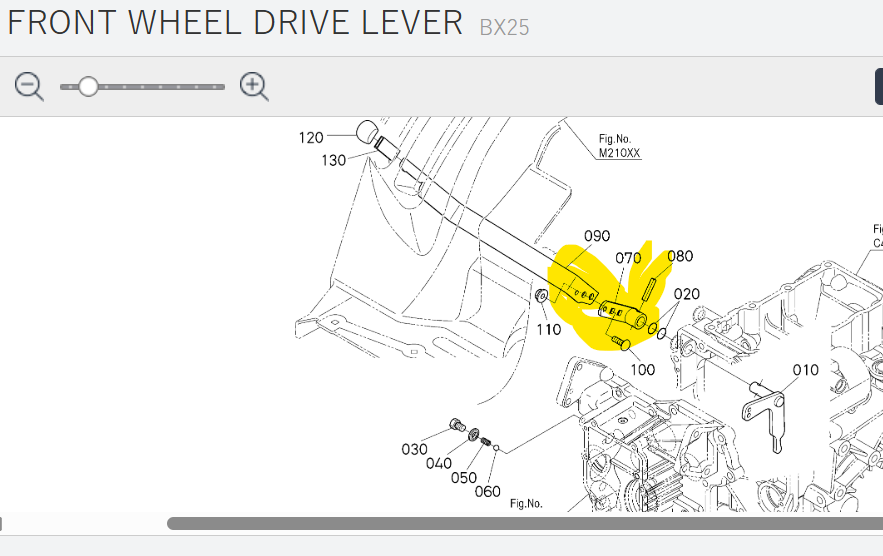

View attachment 150580

i check tomorow, just allignemnt



[North Idaho Wolfman]

parts 50 and 60 is for?

i check tomorow, just allignemnt

Detent, they give the lever that click when engaged and disengaged.
You could check that the spring is not damaged, but highly unlikely that is your issue.



[Mountainman]

If you need any help with pictures or parts id be happy to help
