B7100 (none HST) Seized hydraulic filter nut, and broken gear

[newshb_k]

Hi all

Hope all is doing well and having amazing year start

I have some noise when do I g reverse in my B7100 (non HST), and expected some worn gear in the gear box

today was my first attempt ever in tractor split, all went well except I was unable to remove the hydraulic filter (bottom of gear box), seems the nut is stripped; any ideas to help in removal?

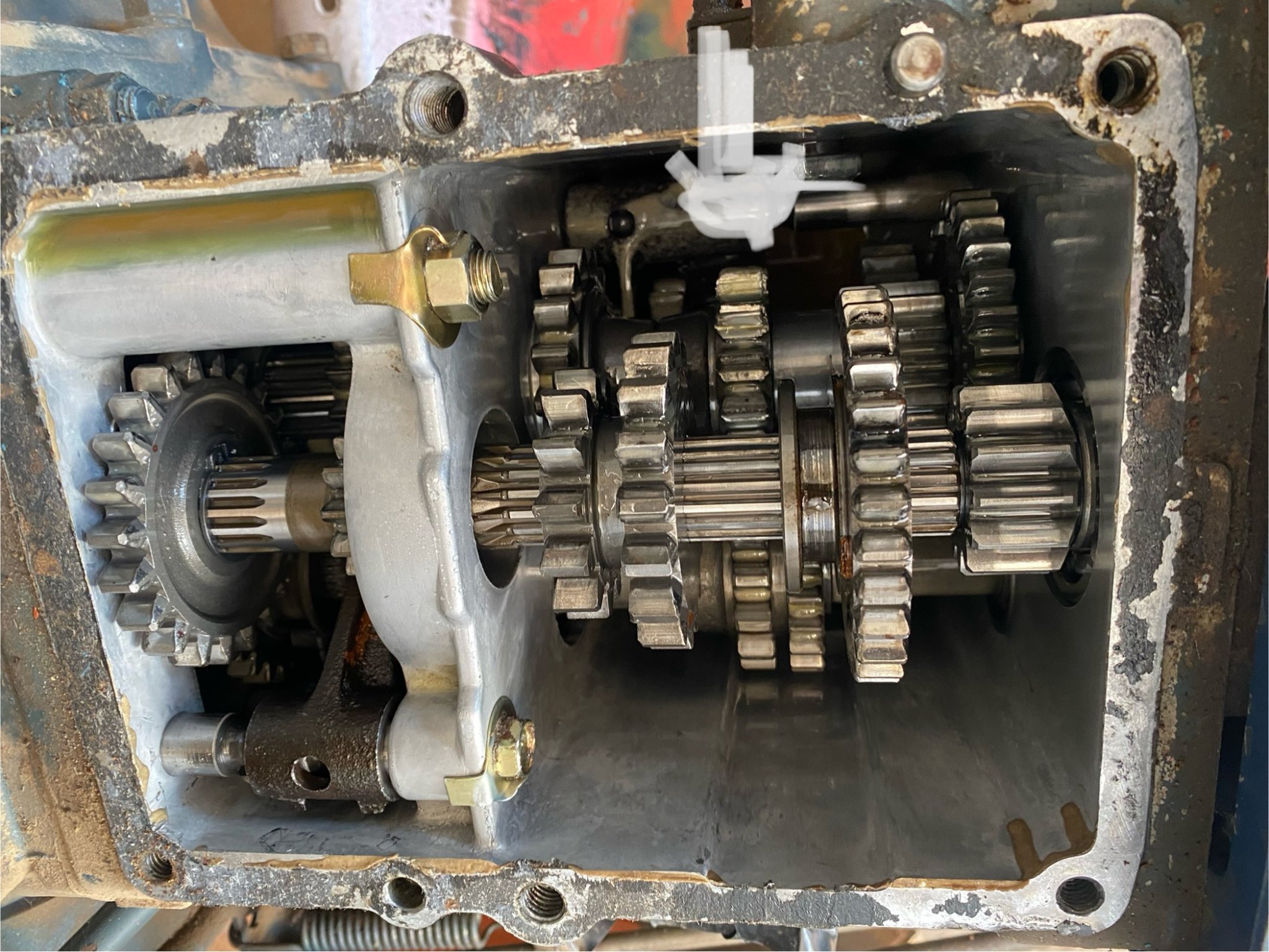

also, I removed the gearbox cover, and based on initial inspection, I saw torn gear; as in the picture, any body knows part number ?

thx a lot



[Russell King]

I assume that you are in the country Jordan, not in the USA. So you can’t access the illustrated parts list at Kubota USA, but perhaps there is a website that Kubota has for your geographical region. You may be able to see Messicks illustrated parts lists to locate the part number.

As far as the stripped bolt(?), you can try to grab it with pliers and pull it as you turn it to get it out.

Post a picture of the problem and more ideas will be posted.



[newshb_k]

I assume that you are in the country Jordan, not in the USA. So you can’t access the illustrated parts list at Kubota USA, but perhaps there is a website that Kubota has for your geographical region. You may be able to see Messicks illustrated parts lists to locate the part number.

As far as the stripped bolt(?), you can try to grab it with pliers and pull it as you turn it to get it out.

Post a picture of the problem and more ideas will be posted.

Thanks for the reply. I can ship from USA or other country, am not sure about the part number

tomorrow will have picture for the stripped filter nut



[GreensvilleJay]

I 'think' these may be the tranny gears ( from Canada website B7100...)

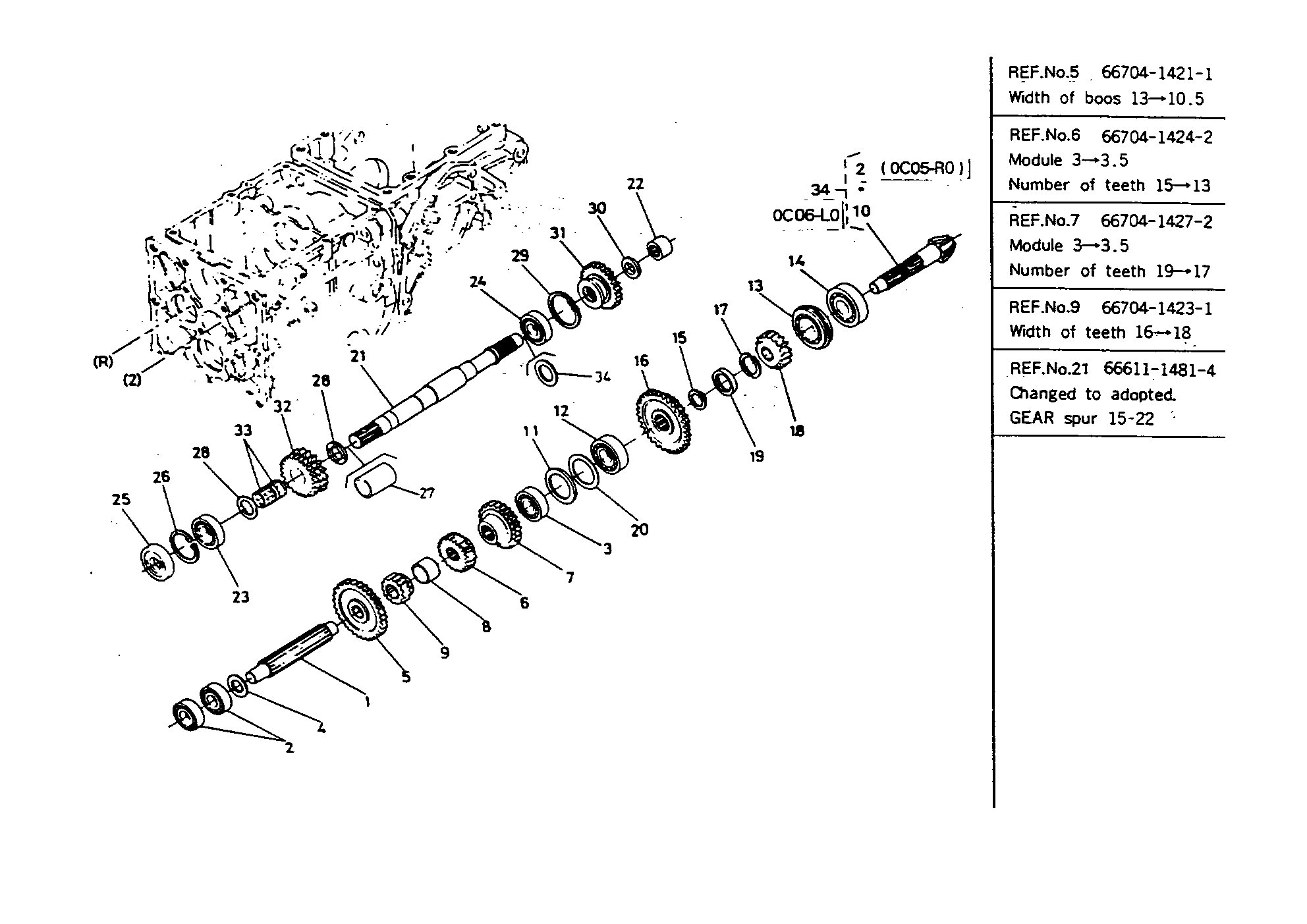

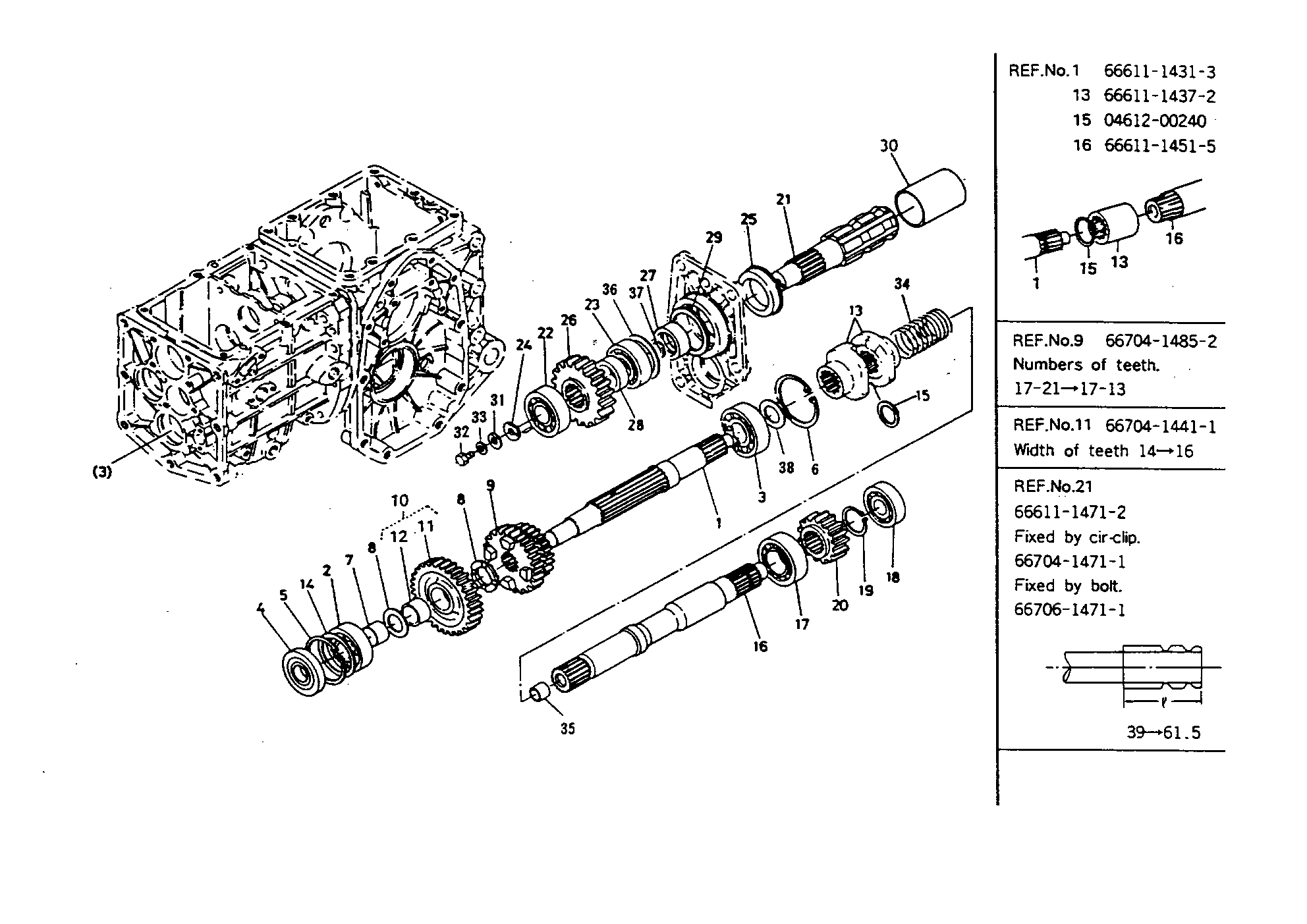

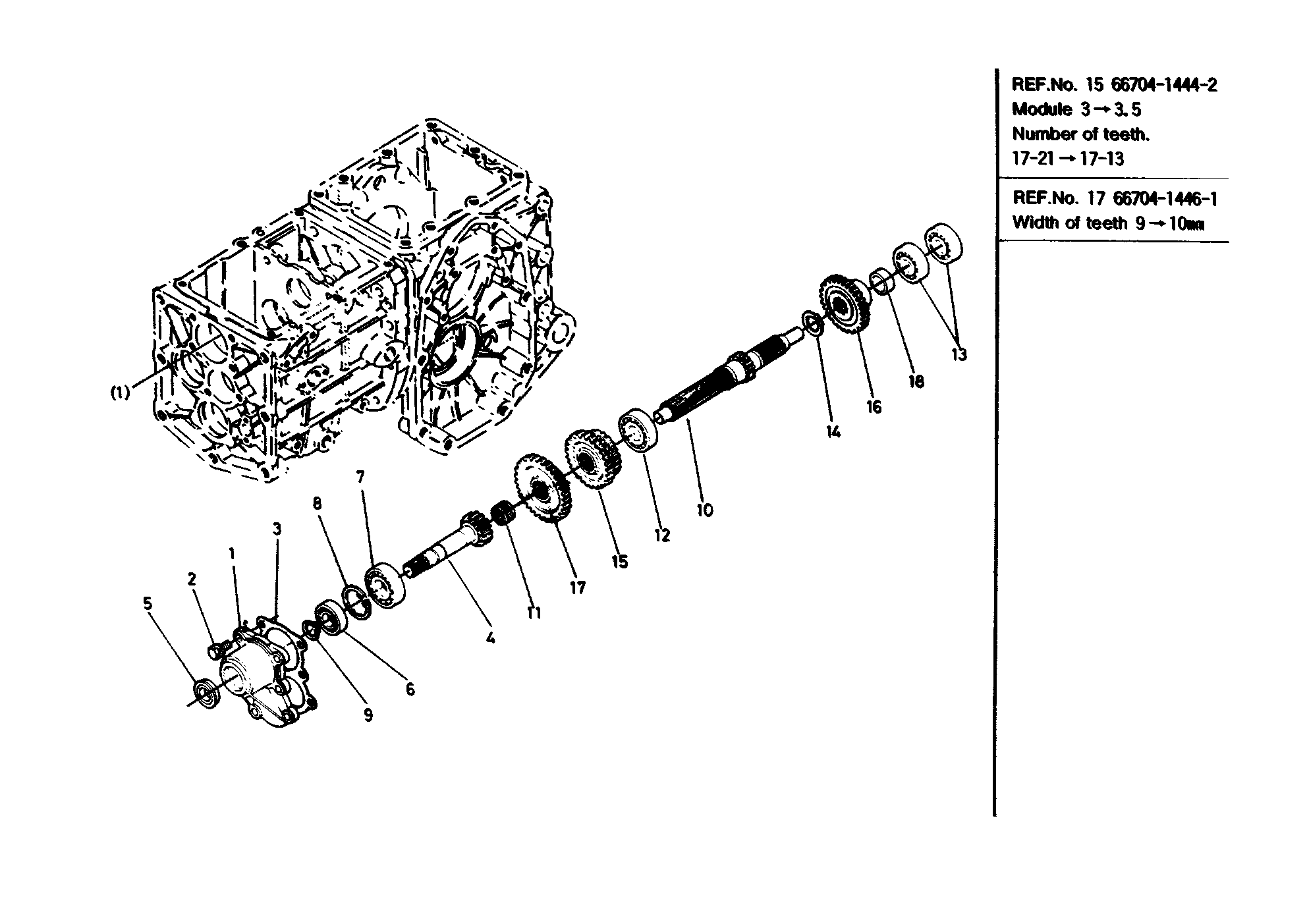

If so, pick a picture and number for the gear and I'll see what part number it is.....
I suspect the 'gurus of gears' will KNOW without looking !!



[North Idaho Wolfman]

To give you a proper answer need the serial number.



[newshb_k]

To give you a proper answer need the serial number.

Sure

tomorrow once I complete the stripping, but I believe it is the same gear Marty changed in his gearbox restoration video in YouTube



[North Idaho Wolfman]

Sure

tomorrow once I complete the stripping, but I believe it is the same gear Marty changed in his gearbox restoration video in YouTube

There are three gear possibilities depending on serial number.



[JRHill]

Think a guy can still buy that from Kubota? You might need to order it from a bone yard? A little voice speaks to me that you're gonna find other problems so best to tear it down completely and start making up your shopping list.

On your filter/strainer is the hex stripped or are the case threads messed up?



[newshb_k]

Think a guy can still buy that from Kubota? You might need to order it from a bone yard? A little voice speaks to me that you're gonna find other problems so best to tear it down completely and start making up your shopping list.

On your filter/strainer is the hex stripped or are the case threads messed up?

yeah, I will tear it down completely to inspect everything

for the filter/strainer, it is the hex stripped



[Russell King]

yeah, I will tear it down completely to inspect everything

for the filter/strainer, it is the hex stripped

Now I am confused about what is wrong….
1) The bolt threads (male) are bad
2) The case threads (female) are bad
3) The corners on the hex head of the bolt or nut are rounded off.

I am guessing you meant 1 or 2 in the original post.
I am guessing you meant 3 in the post above.

Please clarify what the problem is with the pictures when you post them.



[JRHill]

Now I am confused about what is wrong….

3) The corners on the hex head of the bolt or nut are rounded off.

Pretty sure its #3. The first time I tried to get the strainer off I didn't have a metric that big so I tried the monkey wrench. It would've done the same. But I ended up buying a large socket at NAPA. It's kind of a weird size that you'd probably never use otherwise.



[North Idaho Wolfman]

Use a pipe wrench to get the filter out, and buy a new one, they are not that expensive.



[JRHill]

The old gear box B7100 as the OP pictured just has a strainer screen with a big 26mm (or so) head. Between the case and the hex is a big banjo fitting where the UTF is the suction side of the hyd pump on the side of the engine. There is no spin on or cartridge filter.



[newshb_k]

To give you a proper answer need the serial number.

The S/N of the tractor is B7001-71659



[newshb_k]

Now I am confused about what is wrong….
1) The bolt threads (male) are bad
2) The case threads (female) are bad
3) The corners on the hex head of the bolt or nut are rounded off.

I am guessing you meant 1 or 2 in the original post.
I am guessing you meant 3 in the post above.

Please clarify what the problem is with the pictures when you post them.

It is #3

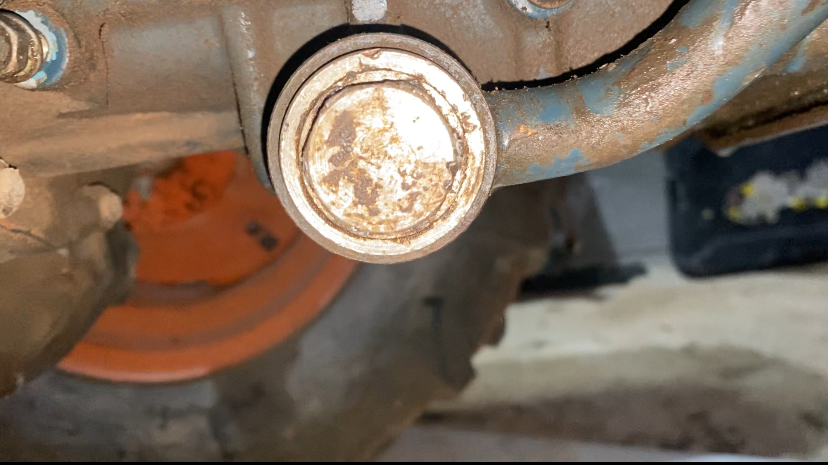

I have attached a picture of the nut.



[North Idaho Wolfman]

The old gear box B7100 as the OP pictured just has a strainer screen with a big 26mm (or so) head. Between the case and the hex is a big banjo fitting where the UTF is the suction side of the hyd pump on the side of the engine. There is no spin on or cartridge filter.

Yes



[newshb_k]

Yes

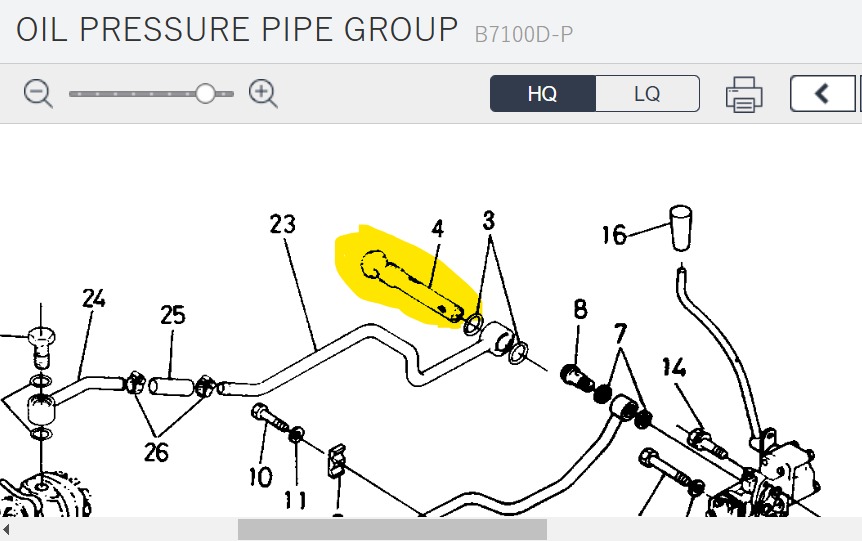

View attachment 145674

I believe the hex size is 26;



[North Idaho Wolfman]

This should be the gear you need:

OEM 66704-14242 Original Gear Gearbox 2ND Axis 13x16T B7100 | Stavros Savva & Son Ltd

OEM 66704-14242 Original Gear Gearbox 2ND Axis 13x16T - Suitable for Kubota Tractor Models B7100
