This is a continuation from Part 3 - It's the final chapter and has taken about 2.5 months to complete.
PART 3 can be found here:
CONTINUATION - Here I am illustrating some of the work to complete this restoration.

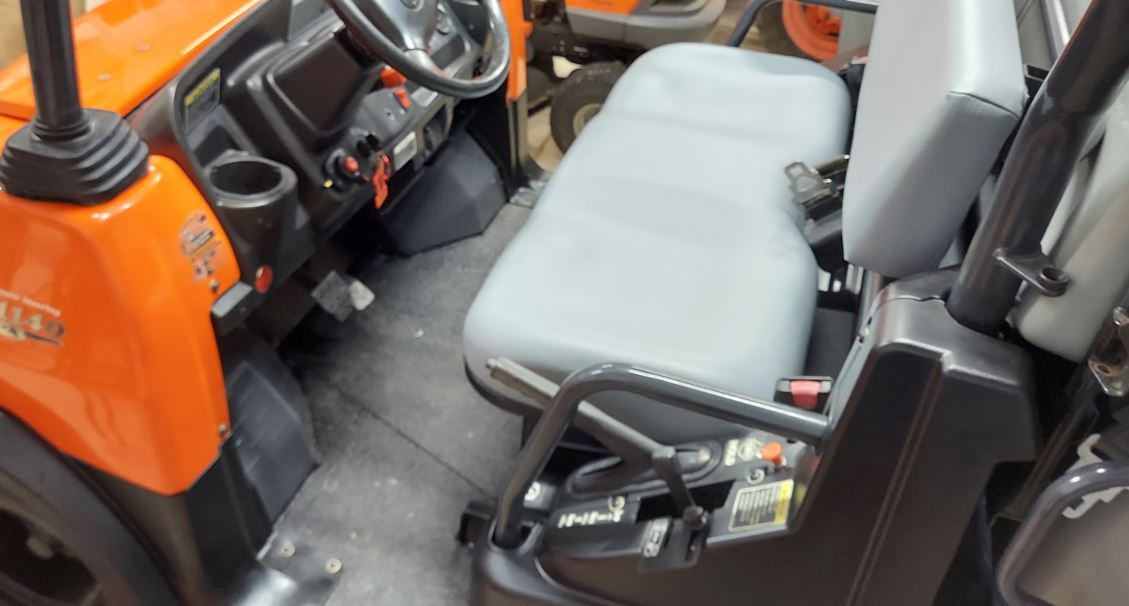

I used Herculiner on the Front and Rear Floors: Here is the Front during application.
I recommend removing the tape as soon as it starts to cure being careful not to tear it.

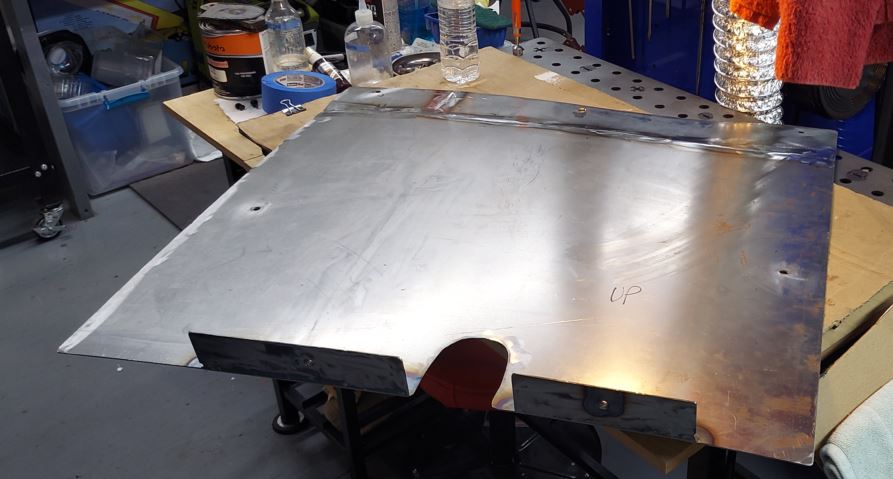

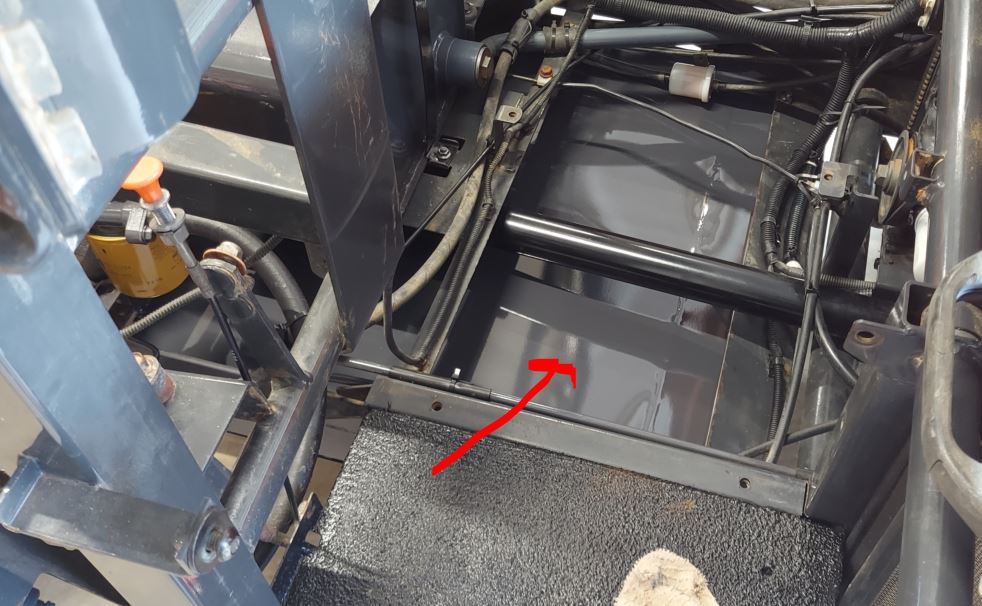

I had to fabricate the missing underbody guard that goes under the midsection:
I used Cardboard-Aided Design processes (CAD).
So these rest included:
1) Painting the plastics after cleaning
2) Bleeding brakes
3) Cleaning the cooling system and replacing the coolant
4) Assembly
I have the turn Signals/Flasher circuits already installed, but am awaiting the front blinkers and taillights on order.

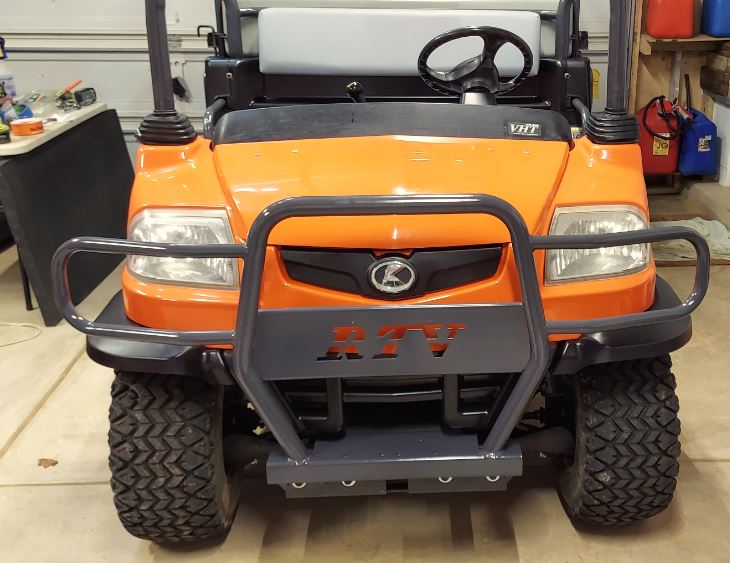

The End. I hope you enjoyed the journey!
